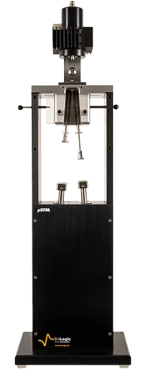

μSFM
Microvolume stopped-flow
Maker:
BioLogic (France)
FEATURES
| Drive mechanism: independent stepping motors | |
| Number of syringes | 2 |
| Syringe type | Glass, 500 µl |
| Number of mixers | 1 |
| Mixer type | Micro Berger Ball |
| Stop mechanism | Electrovalve |
| Sample Consumption | |
| Mixing ratio | Fully variable from 1:1 to 1:9 |
| Maximum flow rate | 1.8 ml/s |
| Priming volume | 24 µl |
| Minium volume per shot (total) | 24 µl |
| Minimum injection volume | 3 µl |
| Observation head | |
| Number of detection windows | 3 |
| Cuvette light path | 0.8 mm |
| Cuvette volume | 2-3 µl |
| Minimum dead time | 1 ms |
| Material | PEEK, FFKM (full solvent compatibility) |
| Synchronization with detection | |
| Trigger | fully programmable; 5V TTL trigger in/ out available |
| Optical coupling | fiber optics or direct attachment |
| Temperature control | |
| Temperature range | 0 to +50 °C |
| Temperature control | Water bath circulator (optional) |
| Temperature probe | Optional PT100 allows direct reading of temperature in Bio-Kine |
| General | |
| Dimensions | 200 x140 x 640 mm |
| Weight | 9 kg |
| Communication | USB |
| Power | 110 V - 220 V |
