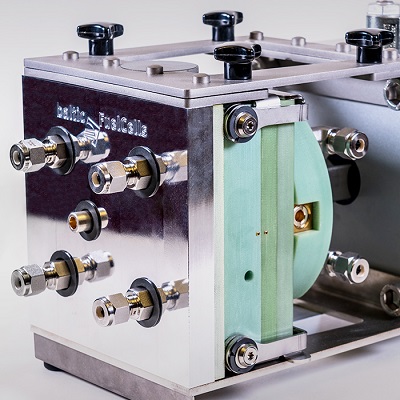

qCf FC50/125
Test cell system for fuel cells with an active area of 25 cm2
Maker:
balticFuelCells (Germany)
FEATURES
SPECIFICATIONS
TECHNICAL DATA - ELECTROLYSIS CELLS | ||
|---|---|---|
| PEM electrolysis | AEM electrolysis | |
| Active area | 50 cm2 | 50 cm2 |
| Flow field material | Titanium (Anode) Graphite (Cathode) | Nickel (Anode) Nickel (Cathode) |
| Cell housing material | PEEK | PEEK |
| Max. back pressure | up to 2 bar g | u pto 2 bar g |
TECHNICAL DATA -FUEL CELLS | ||
|---|---|---|
| LT PEM fuel cells | HT PEM fuel cells | |
| Active area | 50 cm2 | 50 cm2 |
| Flow field material | Graphite | Graphite |
| Cell housing material | EPGC 308 | EPGC 308 |
| Max. back pressure | up to 2 bar g | up to 2 bar g |
| GENERAL TECHNICAL DATA | |
| Weight | 9 kg |
| Piston diameter (Actuator) | Ø 125 mm; anti-twist, low-friction |
| Active area | 50 cm2 |
| Max. operation temperature | -20 °C up to 180 °C* |
| Liquid cooling | Heating/cooling via heat bath thermostats |
| Max. contact pressure (@ 8 bar ) | 3 kN/ 300 kg/ 675 lbf / 2.5 N/mm2 |
| Pneumatic connection (Actuator) | Ø 4 mm Quick-lock connector |
| Operation mode | mechanical via 5/2-way valve |
| Media connection (Anode/Cathode) | Ø 6 mm connection (compatible to Swagelock) |
| delivery invludes | qCf, Load connections (Ø 6 mm/M6; Multi Contact), user manual |
* depending on circulation thermostat and temperature control medium
