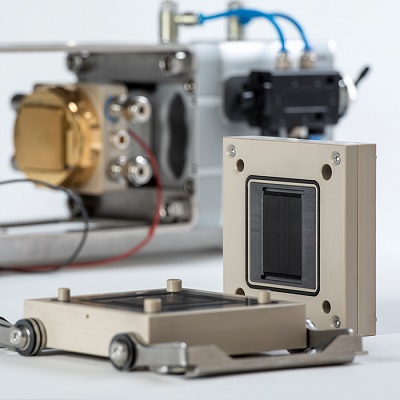

qCf 12 High Amp


 Liquid Cooling High Amp







Maker:

balticFuelCells (Germany)

    FEATURES


  • Active fuel cell area: 12 cm2


  • Operation at extremely high current density: Up to 5 A/cm2


  • Liquid heating/ cooling (optional accessory: HUBER ministat)


  • Cooling areas in direct contact with the flow field plate


  • Ideal for testing high energy density applications (e.g. automotive)


   SPECIFICATIONS



Weight
6 kg
Piston diameter (actuator)
Ø 100 mm; anti-rotation, low friction
active area
12 cm2
max. operating temperature
-20 °C bis 150 °C*
liquid cooling
heating/cooling via heat bath thermostat

ΔT cooling and media outlet

smaller 1K @ 5 A/cm2
max. contact pressure (@ 4 bar )
3 kN/ 300 kg/ 675 lbf / 2.5 N/mm2
pneumatic connection (actuator)
Operation type
Ø 4 mm compressed air connector
mechanical via 5/2-way valve
Media connections (anode/cathode)
Delivery includes
Ø 6 mm connection (compatible to Swagelock)
qCf, Load connections (Ø 6 mm/M6; Multi Contact), user manual
