PAT-Tester-x-8
Up to 8 independent channels Battery tester for
small scale and special purpose testing
Maker
EL-CELL (Germany)
Features

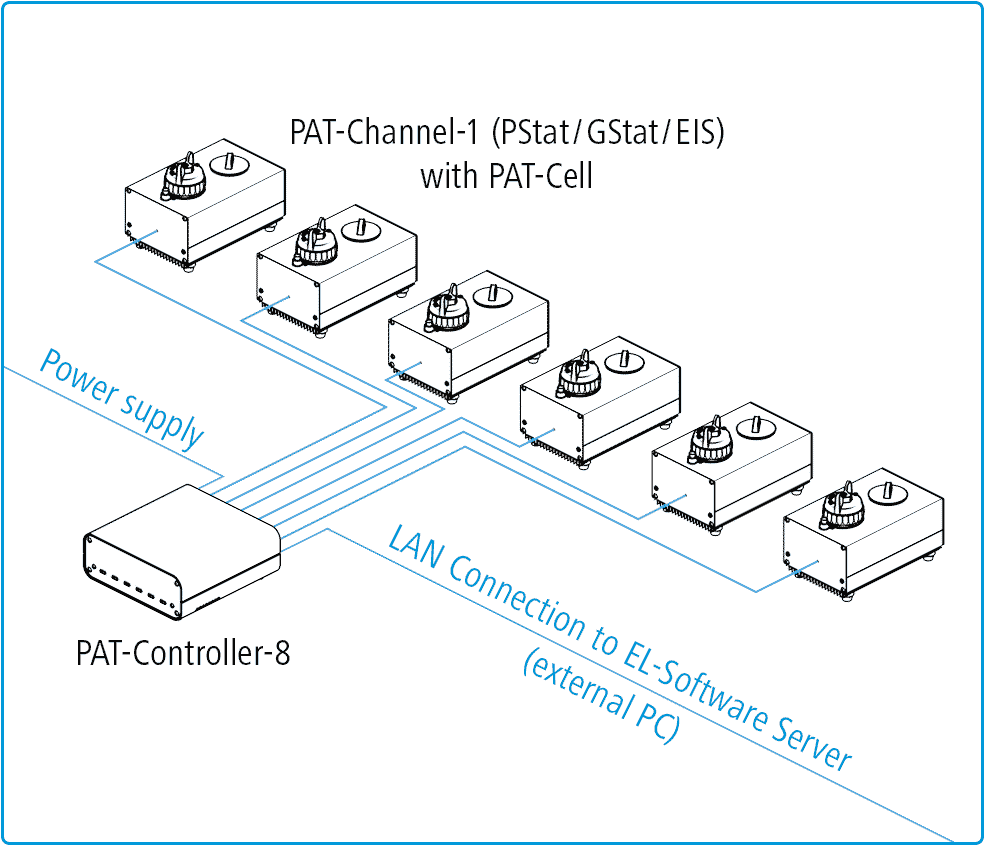

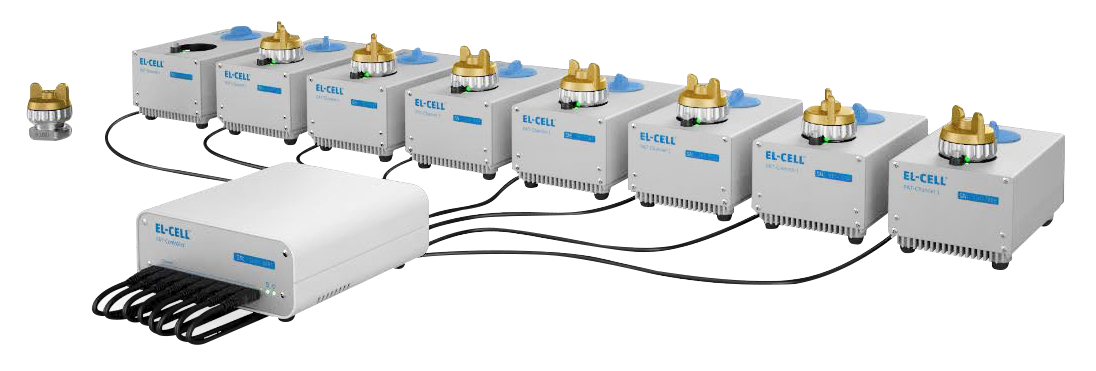

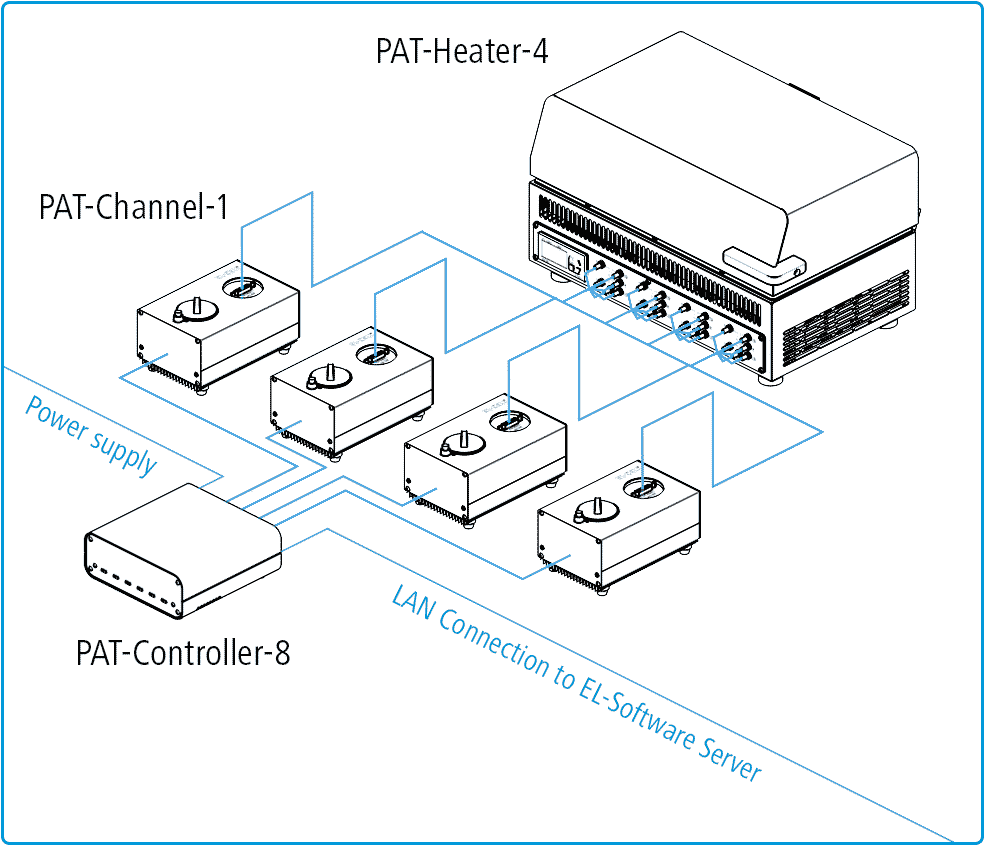

• 하나의 PAT-Controller-8 에 최대 8개의 PAT-Channel-1 연결 가능
• PAT-Controller-8 : 데이터 저장 및 서버 연결을 위한 제어장치

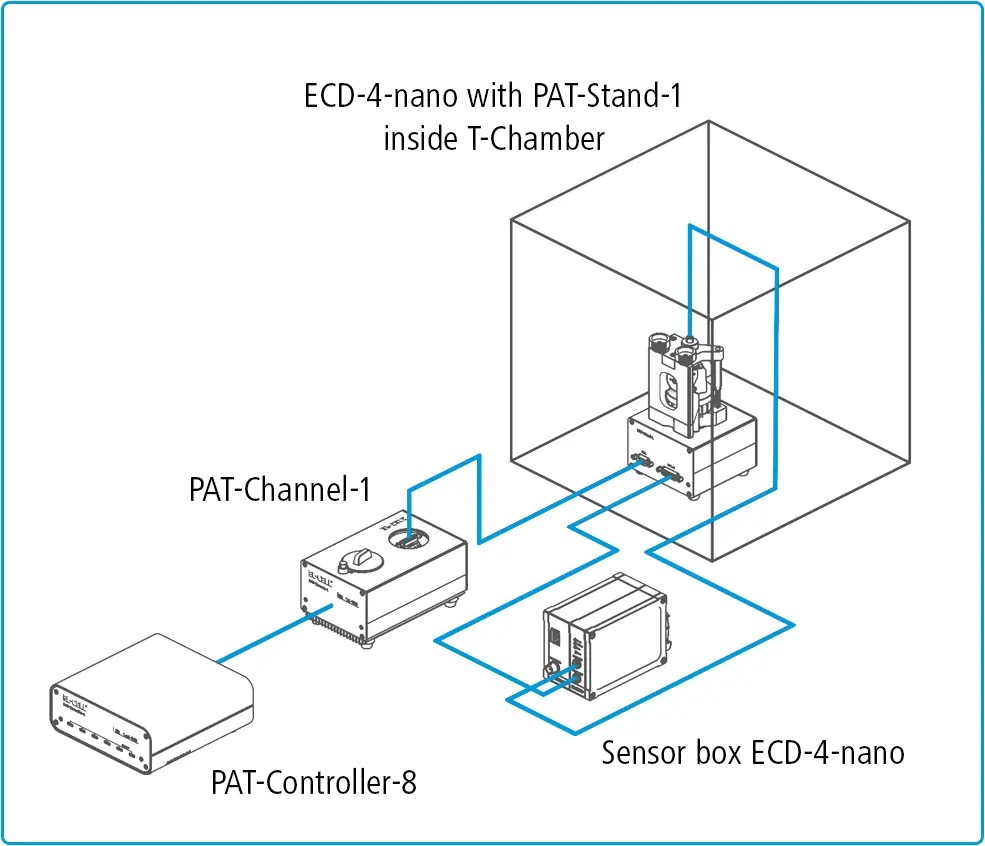

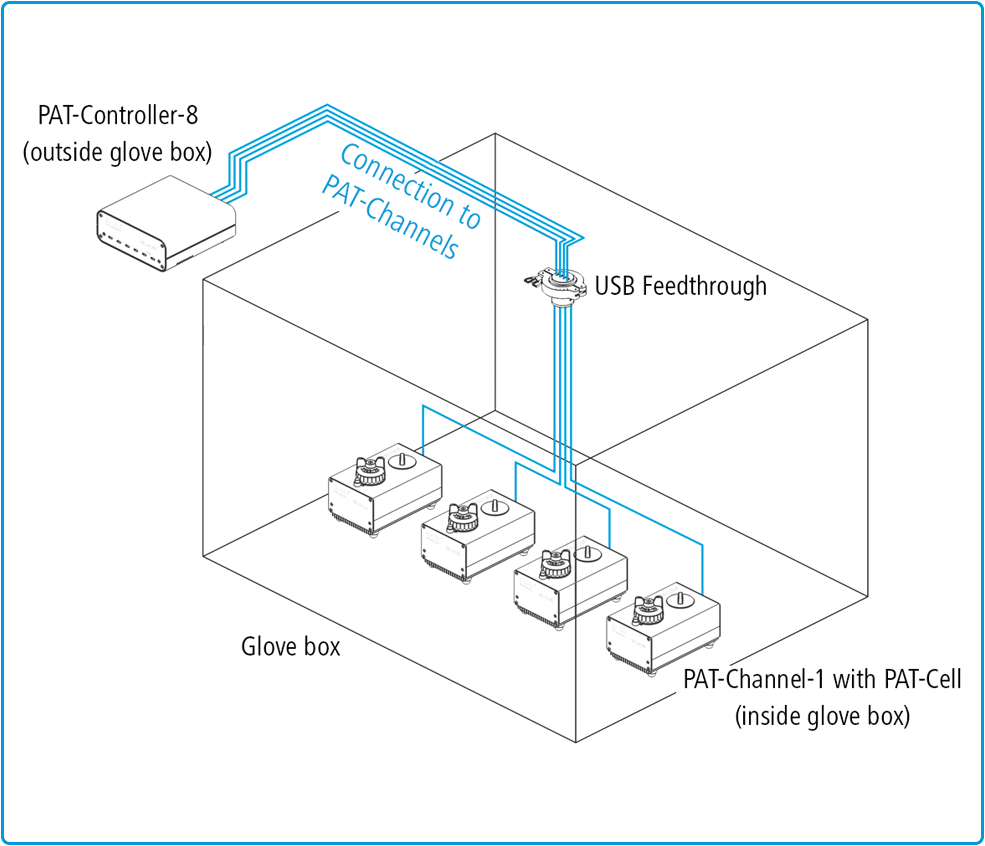

• PAT-Channel-1 : 독립적인 Potentiostat / Galvanostat / Impedance analyzer 로, climate chamber 또는 glove box 내부에서 사용 가능
• 장비와 셀을 일일이 케이블로 연결해야 하는 과정이 생략되어 번거로움을 최소화 함
• Half-cell voltage와 Sensor signal을 동시에 기록 가능
• 호스트 PC에서 네트워크를 통한 원격 접속 가능
Applications
• Battery
Specifications
General
• Channels per device : 1 to 8
• Voltage : -7 V to +7 V
• Cell connection / Electrode connection : 3 electrodes plus sense wires, switch matrix
• ADC : 2 x 24 Bit
• DAC : 1 x 18 Bit
• Bandwidth ranges (Stability Factor)
- 500 kHz(Fast)
- 50 kHz(Medium)
- 5 kHz(Slow)
• Acquisition Time (Time Base) : 1 ms
• Internal Sample Buffer : 100 GByte
• Computer Interface : 1 GBit Ethernet / Runs standalone / Multiuser
Voltage
• Acquisition of ... :
- Full cell voltage
- Both half cell voltages
- Auxiliary voltage
• Measurement Accuracy : ±0.02% of FSR
• Control Resolution : 57 μV (18 Bit)
Current
• Current Ranges : ±100 mA / ±10 mA / ±1 mA / ±100 μA / Autorange
• Measurement Noise floor : <1 μA @ 100mA / <100 nA @ 10mA / <10 nA @ 1mA / <1 nA @ 100μA
• Measurement Accuracy : ±0.05% of FSR
• Control Resolution : 1 nA min. (18 Bit)
Impedance (each channel)
• Frequency range : 100 μHz to 100 kHz
• Impedance mode : PEIS and GEIS (simultaneous measurement of full- and half-cell impedances)
• Impedance range : 1 mΩ to 100 MΩ
Other
• Additional Measurement (each channel)
- Digital (I²C) sensor signal, e.g. for cell temperature
- Analog sensor signal, e.g. for gas pressure
• Calibration : Fully automatic self-calibration with internal voltage reference and three internal calibration cells
• EL-Software with :
- Experiment designer
- Cell and material management with database
- Script editor / Live data monitoring
- Analysing and reporting capabilities
• Cell Identification : PAT-Button with unique serial number stored in EEPROM
