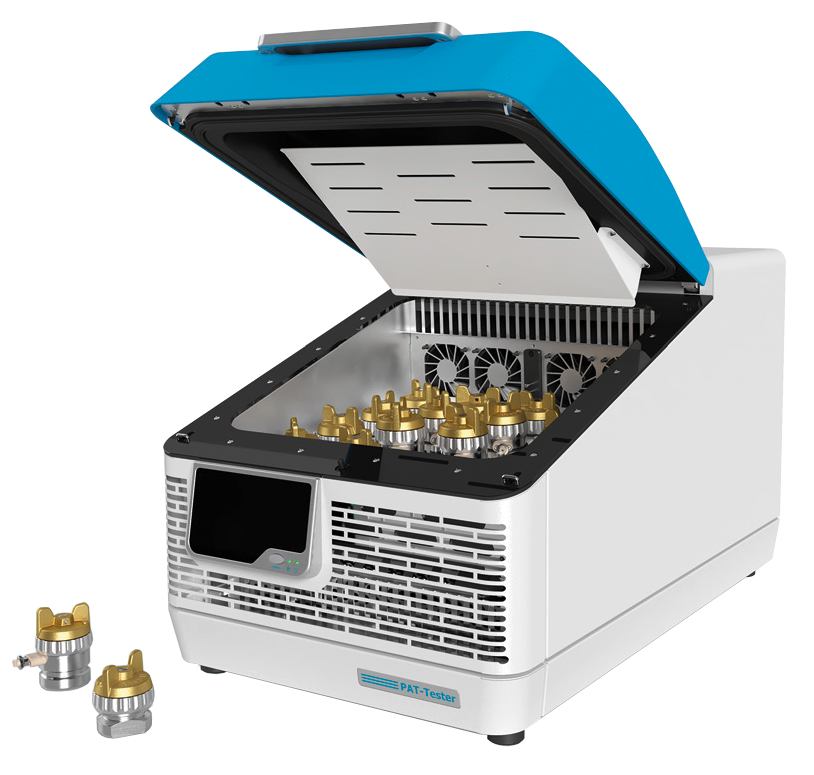

PAT-Tester-i-16
All-in-one instrument :
Battery tester / Temperature-controlled cell chamber / Docking station
Maker
EL-CELL (Germany)
Features
• 16채널의 Battery tester, Docking Station, Temperature-controlled cell chamber 가 통합된 장비
• 장비와 셀을 일일이 케이블로 연결해야 하는 과정이 생략되어 번거로움을 최소화 함
• 각 채널은 potentiostat/galvanostat/Impedance analyzer 기능을 모두 가지고 있어 독립적임
• Half-cell voltage와 Sensor signal을 동시에 기록 가능
• 호스트 PC에서 네트워크를 통한 원격 접속 가능
Applications
• Battery
Specifications
General
• Channels per device : 1 to 16
• Voltage : -7 V to +7 V
• Cell connection / Electrode connection : 3 electrodes plus sense wires, switch matrix
• ADC : 2 x 24 Bit
• DAC : 1 x 18 Bit
• Bandwidth ranges (Stability Factor)
- 500 kHz(Fast)
- 50 kHz(Medium)
- 5 kHz(Slow)
• Acquisition Time (Time Base) : 1 ms
• Internal Sample Buffer : 100 GByte
• Computer Interface : 1 GBit Ethernet / Runs standalone / Multiuser
Voltage
• Acquisition of ... :
- Full cell voltage
- Both half cell voltages
- Auxiliary voltage
• Measurement Accuracy : ±0.02% of FSR
• Control Resolution : 57 μV (18 Bit)
Current
• Current Ranges : ±100 mA / ±10 mA / ±1 mA / ±100 μA / Autorange
• Measurement Noise floor : <1 μA @ 100mA / <100 nA @ 10mA / <10 nA @ 1mA / <1 nA @ 100μA
• Measurement Accuracy : ±0.05% of FSR
• Control Resolution : 1 nA min. (18 Bit)
Impedance (each channel)
• Frequency range : 100 μHz to 100 kHz
• Impedance mode : PEIS and GEIS (simultaneous measurement of full- and half-cell impedances)
• Impedance range : 1 mΩ to 100 MΩ
Other
• Temperature Chamber : +10°C to +80°C, software controlled
• Additional Measurement (each channel)
- Digital (I²C) sensor signal, e.g. for cell temperature
- Analog sensor signal, e.g. for gas pressure
• Calibration : Fully automatic self-calibration with internal voltage reference and three internal calibration cells
• EL-Software with :
- Experiment designer
- Cell and material management with database
- Script editor
- Live data monitoring
- Analysing and reporting capabilities
• Cell Identification : PAT-Button with unique serial number stored in EEPROM
