Screen printed
electode
(Micrux)

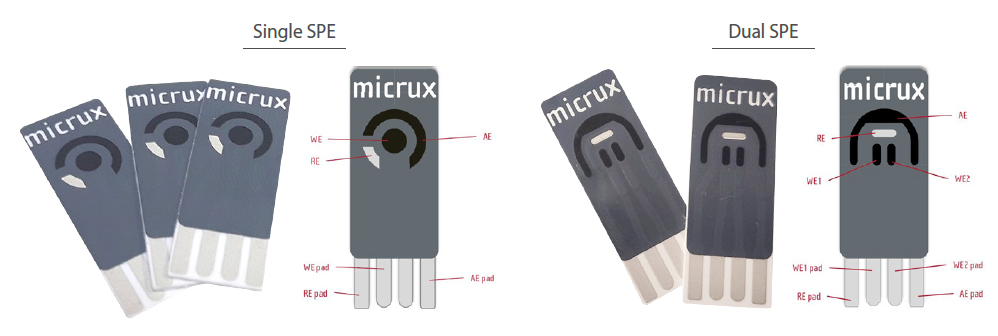

· Single ๋๋ Dual working electrode ๋ชจ๋ธ
· 20~50μl ์ ์ ์ ์ํ ์ฉ์ก ์ฌ์ฉ
· ์ ๊ทน ์ฌ์ง : Carbon, Silver, Gold
· ๊ธฐํ ์ฌ์ด์ฆ : 27.5 x 10.1mm
| Description | Materials | WE diameter | WE area | Cat.No. | |||
| WE | REF | CE | Substrate | ||||
| Thick-film Carbon single electrode | HP Carbon* | Ag | HP Carbon | PET | 3mm | 7.1mm2 | ED-S1PE-C10 |
| HP Carbon | Ag | HP Carbon | Ceramic | ED-S1PE-C10C | |||
| LC Carbon** | Ag | LC Carbon | PET | ED-S1PE-C20 | |||
| LC Carbon | Ag/AgCl | LC Carbon | PET | ED-S1PE-C21 | |||
| Graphene | Ag | Graphene | PET | ED-S1PE-CG20 | |||
| Graphene | Ag/AgCl | Graphene | PET | ED-S1PE-CG21 | |||
| Au | Ag | Au | PET | ED-S1PE-Au10 | |||
| Au | Ag | Au | Ceramic | ED-S1PE-Au10C | |||
| Thick-film Carbon dual electrode | WE 1 : Carbon WE 2 : Carbon | Ag | Carbon | PET | 1 x 2.5mm | 2.3mm2 | ED-D2PE-C |
* HP Carbon : High performance Carbon
**LC Carbon : Low cost Carbon
Options
| Description | Cat. No |
| Ultra-compact Potentiostat for electrochemical sensing interface | ECSENS100 |
| Cable connector for SPE | ED-SPE-CABLE |
| Box connector for SPE | ED-SPE-BOX |
Screen printed
electode
(Zensor)
· WE, CE, RE ๋ชจ๋ ํฌํจ๋ ์ ๊ทน
· ์ ์ ์์ ์ฉ์ก์์ ์ฌ์ฉ ๊ฐ๋ฅ
· ์ ๊ธฐํํ, Material, BIO, ์ผ์ ๋ฑ์ ์์ฉ๋ถ์ผ
· Connector adapter๋ฅผ ํตํ ๊ฐํธ ์ฐ๊ฒฐ ๊ฐ๋ฅ
· ๊ธฐํ ์ฌ์ด์ฆ : 12.6 x 50mm
| Description | Materials | WE diameter | WE area | Cat.No. | ||
| WE | REF | CE | ||||
| Screen Printed Electrode, 40 pcs | Carbon | - | - | 5mm | 0.196cm2 | SE-100 |
| Carbon | - | - | 3mm | 0.071cm2 | SE-101 | |
| Carbon | - | - | 1.5mm | 0.018cm2 | SE-102 | |
| Ag | - | - | 5mm | 0.196cm2 | Ag100 | |
| Carbon | Pseudo Ag | Carbon | 3mm | 0.071cm2 | TE-100 | |
| Carbon | Pseudo Ag | Carbon | 2x1mm | 0.02cm2 | TE-200 | |
| Carbon | Pseudo Ag | Carbon | 3mm | 0.071cm2 | TE-300 | |
| Screen Printed Interdigitated Electrodes, 20 pcs | Au | - | - | 5mm | 0.196cm2 | AUSE100 |
| Au | Au | Au | 3mm | 0.071cm2 | AUTE100 | |
| Au | AgCl | Au | 3mm | 0.071cm2 | AUTE100AgCl | |
| Au | Au | Au | 2x1mm | 0.02cm2 | AUTE200 | |
| Au | AgCl | Au | 2x1mm | 0.02cm2 | AUTE200AgCl | |
Options
| Description | Cat. No |
| Connector cable with alligator clips for Zensor SPE | ECC100 |
Metal electode
(MicruX)
· 10μl ์ดํ์ ๊ทน๋ฏธ๋ ์ํ ์ฌ์ฉ ๊ฐ๋ฅ ์ ๊ธฐํํ ์ผ์
· ์ฌ์ฌ์ฉ ๊ฐ๋ฅํ ๊ณ ๊ฐ๋์ ์ด์ํ ์ผ์
· ๋ค์ํ ์ ๊ทน ์ค๊ณ, ํฌ๊ธฐ ๋ฑ ๋ง์ถค์ ์ ๊ฐ๋ฅ
· ์ ๊ทน ์ฌ์ง : Pt, Au
· ๊ธฐํ ์ฌ์ด์ฆ : 10 x 6 x 0.75mm
· ๊ธฐํ ์ฌ์ง : Glass
· Insulating layer : EPON SU8 resin
· ์ ๊ทน ๋๊ป : 50/150nm
· ์ ๊ทน์ ์ฅ์ฐฉํ์ฌ Potentiostat๊ณผ ์ฐ๊ฒฐํ ์ ์๋
ํ๋ซํผ: Drop / Batch / Flow ํํ
Single Electrodes
| Description | Electrode material | WE size | Electrochemical cell | Cat.No. |
| Thin-film Platinum single electrode (50ea) | Ti/Pt | Φ1mm(0.8mm2) | Φ2mm | ED-SE1-Pt |
| Thin-film Gold single electrode (50 ea) | Ti/Au | ED-SE1-Au | ||
| Thin-film double-metal single electrodes (WE:Au, RE/CE:Pt) (25 ea) | WE : Ti/Au RE : Ti/Pt CE : Ti/Pt | ED-SE1-AuPt |
Microelectrode arrays (MEA)
| Description | Electrode material | Microholes diameter | Microhole number | Microhole pitch | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) microelectrode array (50 ea) | Ti/Pt(Au) | 5μm | 500 | 50μm | Φ2mm | ED-mSE-5-Pt (Au) |
| 10μm | 90 | 100μm | ED-mSE-10-Pt (Au) |
Interdigitated Electrodes (IDE)
| Description | Electrode material | Microholes width | Microelectrode gap | Number of fingers | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) interdigitated electrodes (50 ea) | Ti/Pt(Au) | 10μm | 10μm | 90 pairs | Φ3.5mm | ED-IDE1-Pt (Au) |
| 10μm | 5μm | 120 pairs | ED-IDE2-Pt (Au) | |||
| 5μm | 5μm | 180 pairs | ED-IDE3-Pt (Au) |
Interdigitated array microelectrodes (IDRA)
| Description | Electrode material | Microholes width | Microelectrode gap | Number of fingers | Electrochemical cell | Cat.No. |
| Thin-film Platinum (Gold) interdigitated ring array microelectrodes (50 ea) | Ti/Pt(Au) | 10μm | 10μm | 12 pairs | Φ2mm | ED-IDRA1-Pt (Au) |
RDE/RRDE Electrodes
(BioLogic)

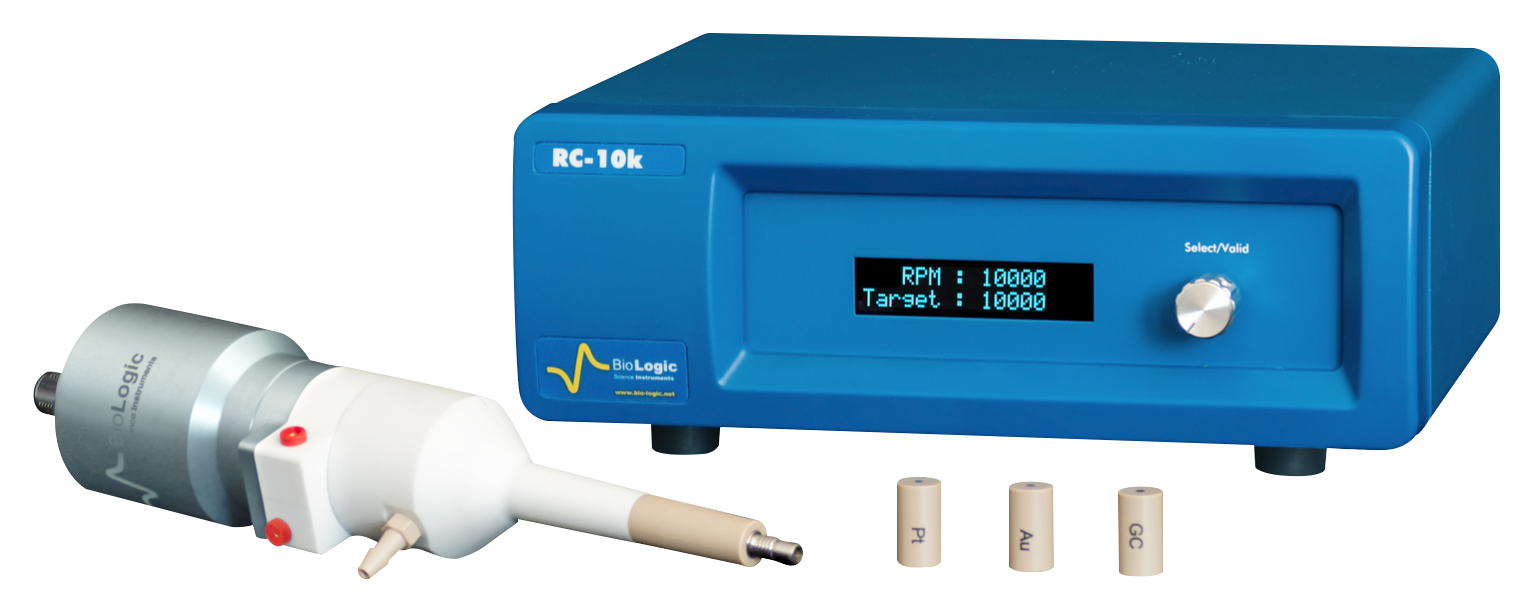

· BioLogic ์ฌ์ BluRev RDE/RRDE์ ์ฌ์ฉํ๋ ์ ๊ทน
BluRev RDE/RRDE
| Description | Ring ID | Ring OD | Disk Φ | Cat.No. | |
| RRDE | Glassy Carbon Ring & Disk (Nmax = 0.4626) | 4mm | 6mm | 2mm | 094-GC-GC |
| Pt Ring (99.9%) - Glassy Carbon Disk (Nmax = 0.4626) | 094-PT-GC | ||||
| RDE | Glassy carbon disk electrode | 3mm | 094-GC/3 | ||
| 5mm | 094-GC/5 | ||||
| Glassy carbon disk electrode, PTFE body | 3mm | 094-PTFE-GC/3 | |||
| 5mm | 094-PTFE-GC/5 | ||||
| Ag disk electrode | 3mm | 094-Ag/3 | |||
| Al disk electrode | 094-Al/3 | ||||
| Cu disk electrode | 094-Cu/3 | ||||
| Ni disk electrode | 094-Ni/3 | ||||
| Stainless steel disk electrode | 3mm | 094-316L/3 | |||
| Pt disk electrode | 2mm | 094-PT/2 | |||
| Au disk electrode | 2mm | 094-AU/2 | |||
| * Boron Doped Diamond | 3mm | 094-BDD/3 |
* BDD : 500 μm diamond layer / Typical Ra = 10 nm / Boron doping level between 500 and 1000 ppm
Disk replaceable tips
| Description | Cat.No. |
| Mounting tool kit | 094-DRE-KIT |
| 3mm PEEK empty tip for RDE | 094-DRE/3 |
| 3mm PEEK empty tip for RRDE (Pt ring) | 094-DRE-Pt/3 |
| Spacer kit (1x PEEK, 3x PTFE) | 094-SPACER-KIT |
| Polishing tip | 094-DRE-POLISH |
RDE/RRDE Electrodes
(EC-Frontier)

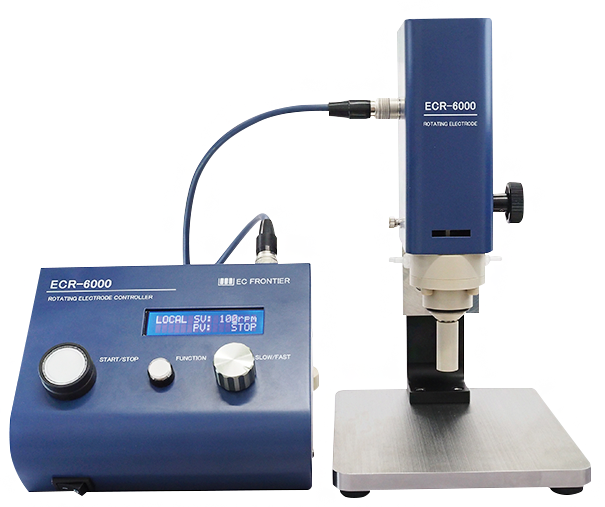

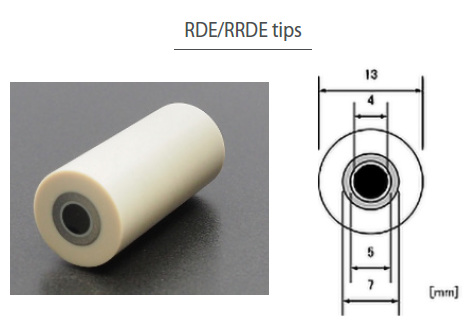

· EC-Frontier ์ฌ์ ECR-6000/6100 ์ ์ฌ์ฉํ๋ ์ ๊ทน
Description | Main Body | Disk Pole (์ธ๊ฒฝ) | PTFE guide | Ring Pole | Cat. No. | |||
| ์ธ๊ฒฝ | ๋ด๊ฒฝ | ์ธ๊ฒฝ | ๋ด๊ฒฝ | |||||
| RDE | GC disk | · ์ฌ์ง: PEEK, SUS304 · ์ธ๊ฒฝ: 13mm | 3mm | - | - | R-GC3 | ||
| 4mm | R-GC4 | |||||||
| 3mm | 5mm | 3mm | R-GC3-T | |||||
| 4mm | 6mm | 4mm | R-GC4-T | |||||
| 5mm | 7mm | 5mm | R-GC5-T | |||||
| AU disk | 3mm | - | R-AU3 | |||||
| 4mm | R-AU4 | |||||||
| 3mm | 5mm | 3mm | R-AU3-T | |||||
| 4mm | 6mm | 4mm | R-AU4-T | |||||
| PT disk | 3mm | - | R-PT3 | |||||
| 4mm | R-PT4 | |||||||
| 3mm | 5mm | 3mm | R-PT3-T | |||||
| 4mm | 6mm | 4mm | R-PT4-T | |||||
| RRDE (PT ring) | GC disk | 4mm | - | 7mm | 5mm | R-GC4-PT75 | ||
| 5mm | 4mm | R-GC4-PT75-T | ||||||
| 5mm | 6mm | 5mm | 8mm | 6mm | R-GC5-PT86-T | |||
| AU disk | 4mm | - | 7mm | 5mm | R-AU4-PT75 | |||
| 5mm | 4mm | R-AU4-PT75-T | ||||||
| PT disk | - | R-PT4-PT75 | ||||||
| 5mm | 4mm | R-PT4-PT75-T | ||||||

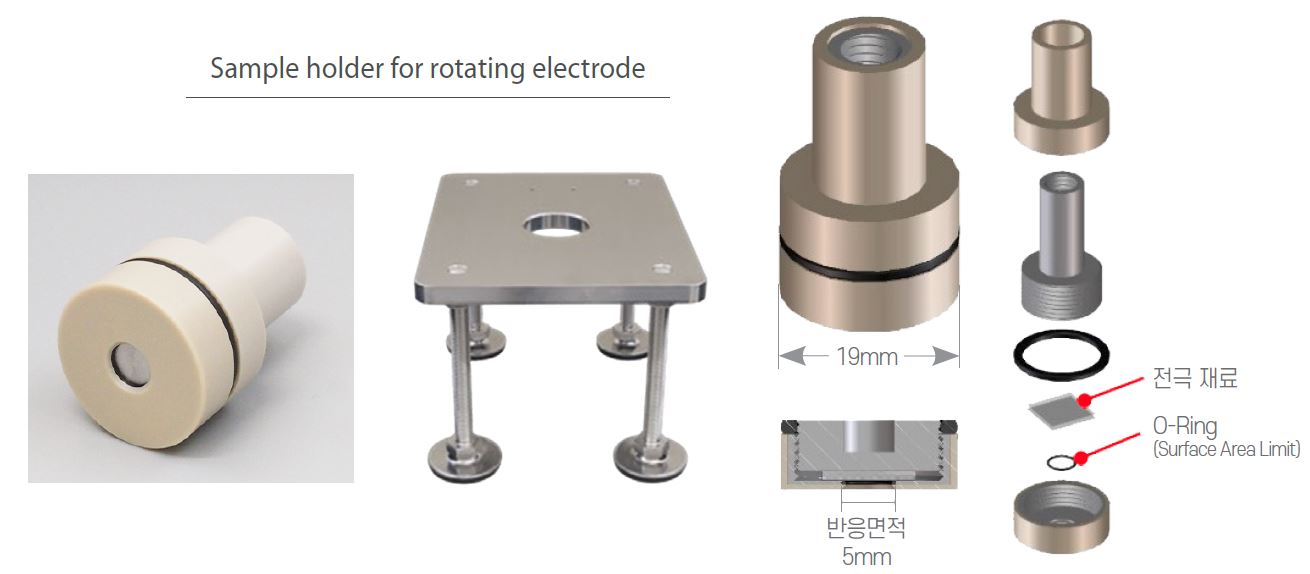

Rotating Electrode sample holder
| Description | Cat.No. |
| Sample holder for rotating electrode | R-SH5 |
| Vyton O-rings for R-SH5, 5 ea | R-SH5-RP01 |
| Perfluoro O-rings for R-SH5, 3 ea | R-SH5-OP01 |
