Redoxme

Current Collectors




Current Collectors (with Tantalum clip & Septum plug)

·  단단하거나 유연한 기판 위에 증착된 Membrane 또는 Thin film을, 외부 회로와 전극 간의 전기도체 역할을 하는 Tantalum Clip으로 고정시켜 전극을 제조


·  강한 알칼리나 플로오르화 수소산에서는 부적합하므로 사용에 유의

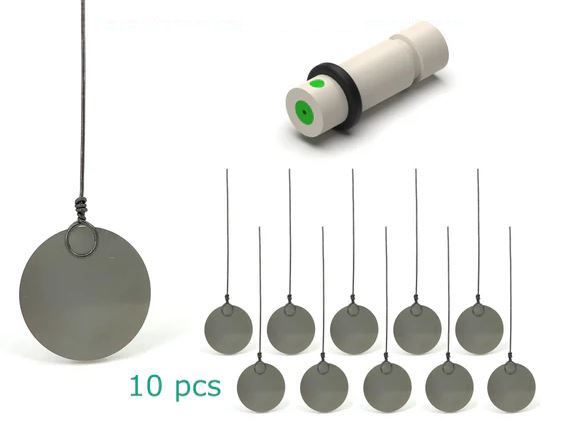

Stainless Steel : Foil
Stainless Steel : Foil
Stainless Steel : Mesh
Stainless Steel : Mesh

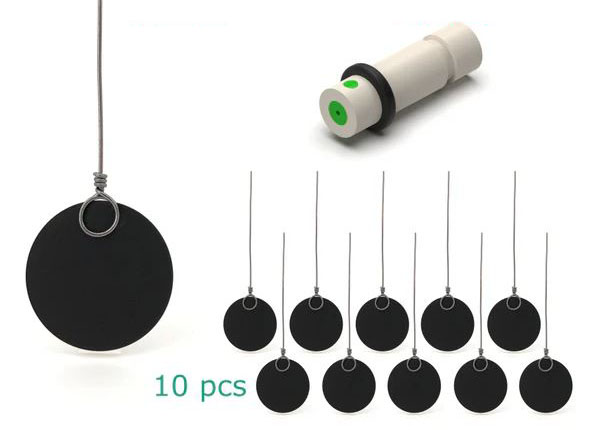

Graphite Coated Stainless Steel : Foil
Graphite Coated Stainless Steel : Foil

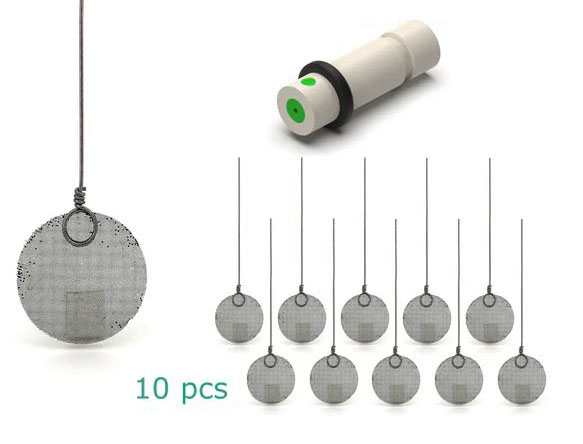

Graphite Coated Stainless Steel : Mesh
Graphite Coated Stainless Steel : Mesh
Product typeCat. No.
Stainless steel - 316LAqueousMeshE-A-CC_316L_MESH-10p
OrganicE-O-CC_316L_MESH-10p
AqueousFoilE-A-CC_316L_FOIL-10p
OrganicE-O-CC_316L_FOIL-10p
Graphite coated
stainless steel - 316L		AqueousMeshE-A-CC_Gr/316L_MESH-10p
OrganicE-O-CC_Gr/316L_MESH-10p
AqueousFoilE-A-CC_Gr/316L_FOIL-10p
OrganicE-O-CC_Gr/316L_FOIL-10p

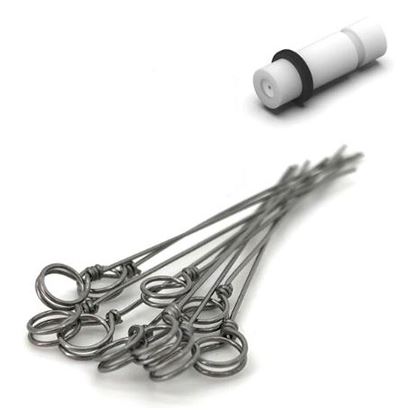

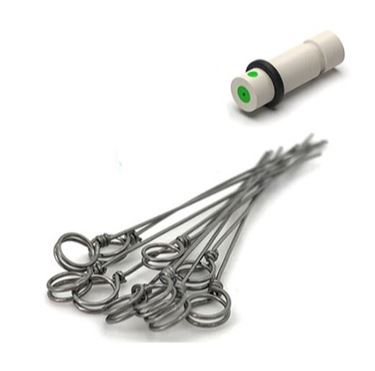

Clip with Plug

- 다양한 소재의 Wire를 선택하여 별도로 구매 가능

- 구성품 : Wire clip (10개), Plug (1개), O-ring (1개)

Wire clip typeExperimental environment type
Plug typeCat. No.
TantalumAqueousPEEK plug with
silicone rubber septum		E-A-Ta_CLIP-0.6/60-10p
OrganicE-O-Ta_CLIP-0.6/60-10p
Stainless Steel 316LAqueousPTFE plug with
expanded PTFE septum		E-A-SS316L_CLIP-0.6/60-10p
OrganicE-O-SS316L_CLIP-0.6/60-10p
NickelAqueousE-A-Ni_CLIP-0.6/60-10p
OrganicE-O-Ni_CLIP-0.6/60-10p
CopperAqueousE-A-Cu_CLIP-0.6/60-10p
OrganicE-O-Cu_CLIP-0.6/60-10p
ZincAqueousE-A-Zn_CLIP-0.6/60-10p
OrganicE-O-Zn_CLIP-0.6/60-10p

Metal Plate

Current Collectors

·  정사각형 판 형태의 다결정 금속 또는 다결정/고순도 귀금속


·  응용 : 전기화학 공정 및 박막 특성화를 위한 Current Collector


·  장점 : 높은 전기 전도성 / 역학적 안정성


·  특히, 귀금속 Plate는 화학물질에 대한 저항성이 뛰어남

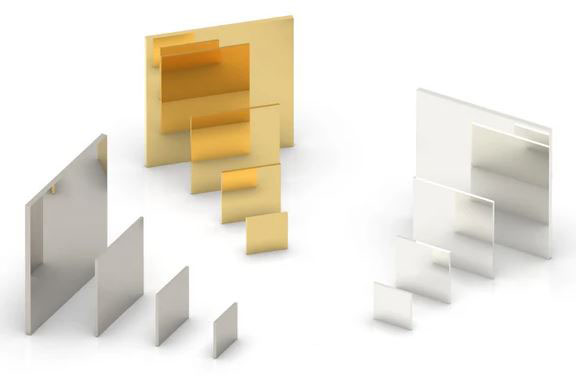

Platinum, Gold, Palladium : 1 ea
Platinum, Gold, Palladium : 1 ea

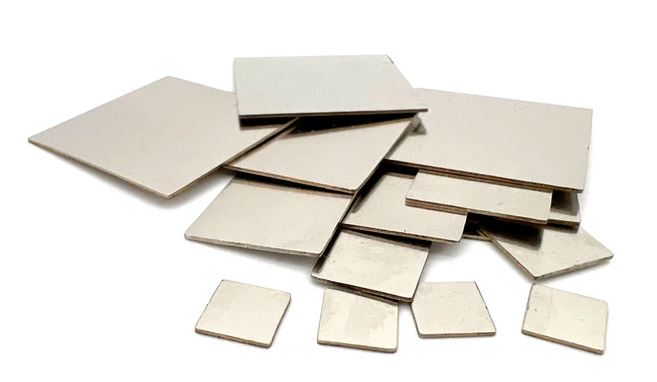

Nickel, Stainless steel, Titanium, Zinc, Lead, Tantalum, Silver : 1 Set of 10
Nickel, Stainless steel, Titanium, Zinc, Lead, Tantalum, Silver : 1 Set of 10
Product typeContentsCat. No.
Platinum7 x 7 x 0.5 mm3Noble metal plate x 1 eaE-NM_P_Pt-7x7x0.5
10 x 10 x 0.5 mm3
E-NM_P_Pt-10x10x0.5
15 x 15 x 0.5 mm3E-NM_P_Pt-15x15x0.5
25 x 25 x 1 mm3E-NM_P_Pt-25x25x1
Gold7 x 7 x 0.5 mm3
E-NM_P_Au-7x7x0.5
10 x 10 x 0.5 mm3
E-NM_P_Au-10x10x0.5
15 x 15 x 0.5 mm3
E-NM_P_Au-15x15x0.5
25 x 25 x 1 mm3
E-NM_P_Au-25x25x1
Palladium7 x 7 x 0.3 mm3
E-NM_P_Pd-7x7x0.3
10 x 10 x 0.3 mm3
E-NM_P_Pd-10x10x0.3
15 x 15 x 0.3 mm3
E-NM_P_Pd-15x15x0.3
25 x 25 x 0.3 mm3
E-NM_P_Pd-25x25x0.3
Nickel7 x 7 x 0.5 mm3
Metal plate electrode of selected size / material x 1 set (set of 10)E-M_P_Ni-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Ni-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Ni-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Ni-25x25x0.5-10p
Stainless steel
316L/317L		7 x 7 x 0.5 mm3
E-M_P_316L-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_316L-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_316L-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_316L-25x25x0.5-10p
Titanium7 x 7 x 0.5 mm3
E-M_P_Ti-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Ti-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Ti-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Ti-25x25x0.5-10p
Zinc7 x 7 x 0.5 mm3
E-M_P_Zn-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Zn-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Zn-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Zn-25x25x0.5-10p
Lead7 x 7 x 0.5 mm3
E-M_P_Pb-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Pb-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Pb-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Pb-25x25x0.5-10p
Tantalum7 x 7 x 0.5 mm3
E-M_P_Ta-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Ta-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Ta-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Ta-25x25x0.5-10p
Silver7 x 7 x 0.5 mm3
E-M_P_Ag-7x7x0.5-10p
10 x 10 x 0.5 mm3
E-M_P_Ag-10x10x0.5-10p
15 x 15 x 0.5 mm3
E-M_P_Ag-15x15x0.5-10p
25 x 25 x 0.5 mm3
E-M_P_Ag-25x25x0.5-10p
