cell kit-etc

Plate Material Evaluating Cells

Product		Components						Cat. No.
Product		Glass cell	Cell cap	Parts for flange	Parts for fixing electrode	Cell stand	Purge tube	Cat. No.

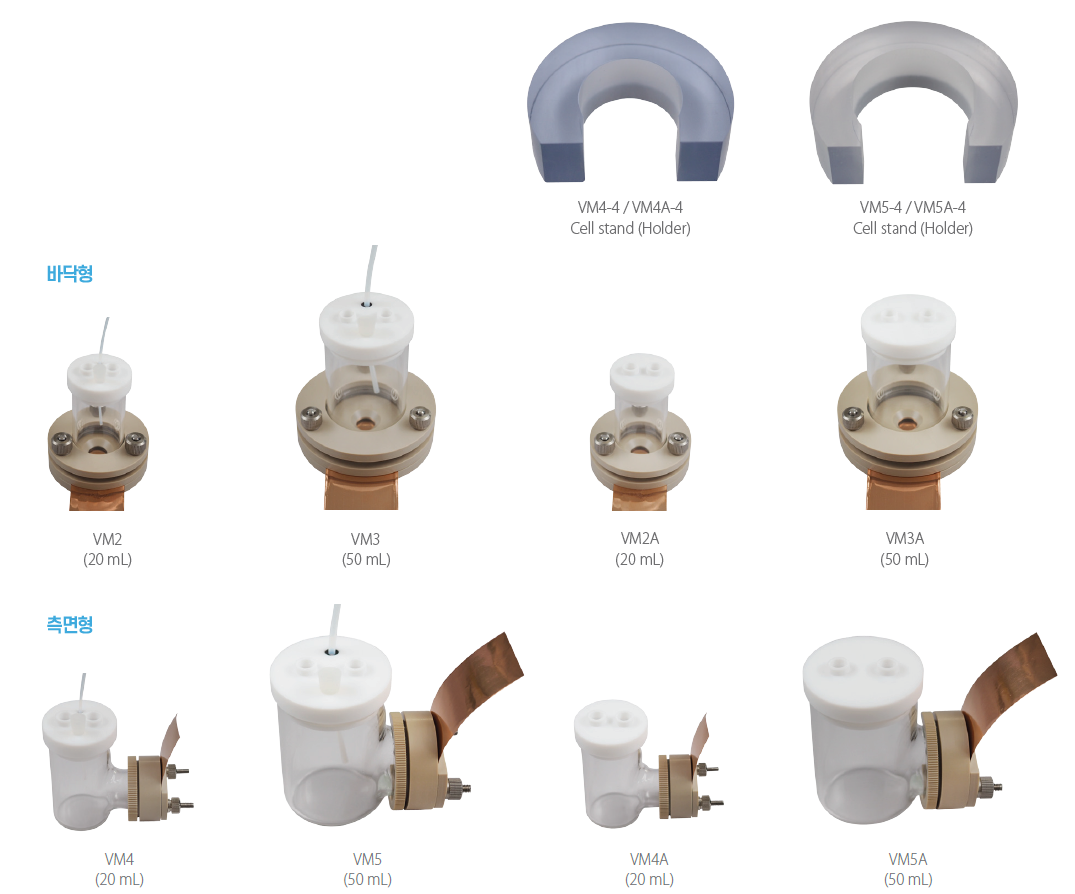

바닥형	Plate material evaluating cell standard kit with purge (20 mL)	●	●	●	-	-	●	VM2
	Plate material evaluating cell standard kit (20 mL)	●	●	●	-	-	-	VM2A-
	Plate material evaluating cell standard kit with purge (50 mL)	●	●	●	-	-	●	VM3
	Plate material evaluating cell standard kit (50 mL)	●	●	●	-	-	-	VM3
측면형	Plate material evaluating cell standard kit with purge (20 mL)	●	●	-	●	●	●	VM4
	Plate material evaluating cell standard kit (20 mL)	●	●	-	●	●	-	VM4A
	Plate material evaluating cell standard kit with purge (50 mL)	●	●	-	●	●	●	VM5
	Plate material evaluating cell standard kit (50 mL)	●	●	-	●	●	-	VM5A
Options
O-ring set
Silicone cap set
Gasket set

Property	Specification

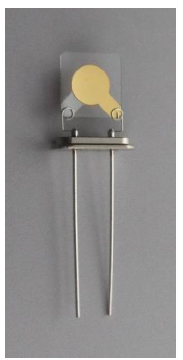

Resonant frequency	9MHz
Cut type	AT Cut
Electrode material	Au, Pt, Ag, Al, C, Cu, ITO, Mo, Ni, Si, SiO2, SUS304, Ti 등
Electrode thickness	300nm (sputtering on 100nm Ti-based)
Electrode diameter	Ø 5mm
Shape	Square 7.9×7.9mm(49U) assembled / separated type

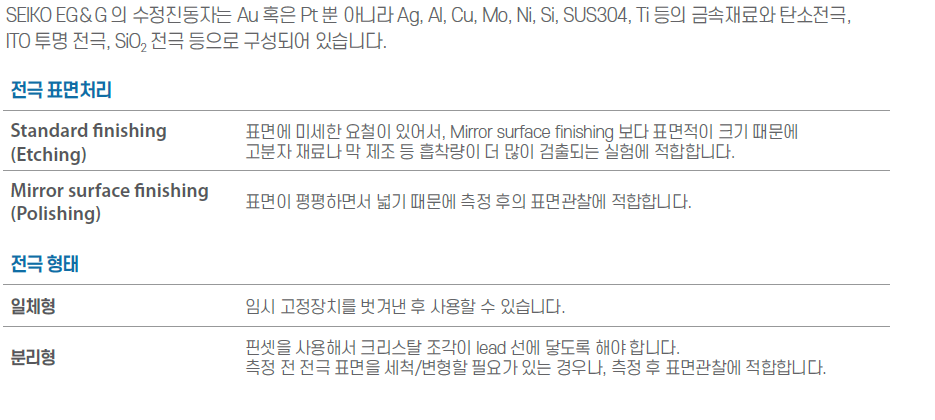

Crystal finishing	Standard finishing (Etching) : 4,000 times finishing, Mirror surface finishing (Polishing) : Mirror surface finishing
Operating temperature	-20°C ~ 70°C (Depending on the operating temperature during measurement)

※ ITO 투명전극은 Ti 기반의 전극을 사용하지 않습니다.

※ SiO2 전극은 별도로 문의해 주셔야 합니다.

※ 표면처리를 위한 Au 는 약 14nm Ti 위에 약 335nm 의 Au 을 부착하여 만듭니다.

• Flow Injection을 통한 실험 및 전기량 분석이 가능한 셀

• Carbon felt를 Working electrode로 사용함으로써 높은 전해 효율을 갖춤

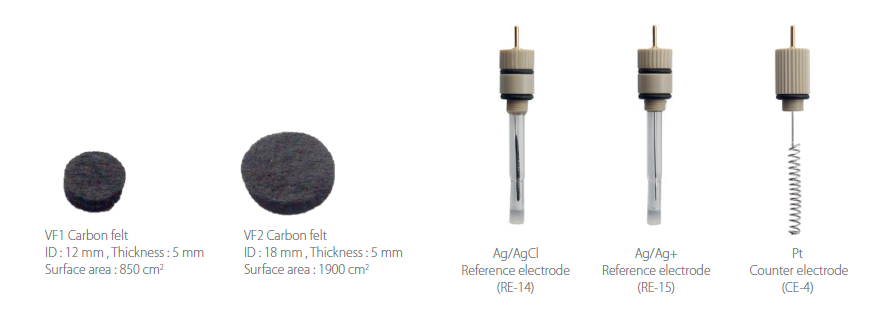

• Carbon felt 표면적: 850cm², 1900cm²

• 다공성 glass filter를 사용하여 Carbon felt 부분에서만 sample이 전해되며 Counter Electrode의 반응에는 참여하지 않으므로 전해 합성 등의 용도에 적합합니다

※ 본 Cell은 일반 수계용을 기준으로 제작되었습니다. 유기용매를 사용하려면 내부 O-ring 및 Gasket을 내화학성 재질(예: Perfluoro)로 변경해야 합니다.

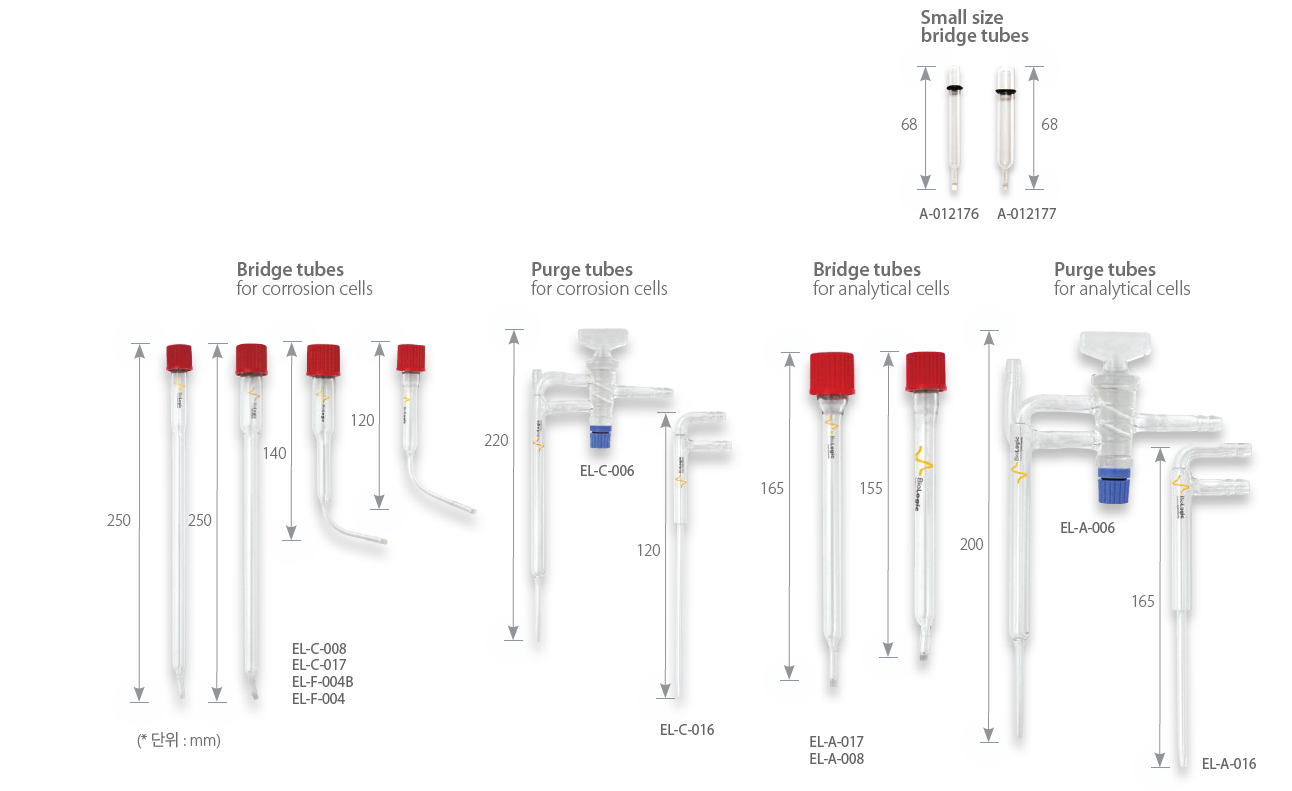

Bridge Tubes / Purge Tubes

Description	Ref. electrode	OD	Height	Quantity	Purpose	Vycor type compatibility	Cat. No.
Small size bridge tube	Ø 6 mm	6 mm	68 mm	2	SVC-3	092-VYC3	A-012176
	Ø 6 mm	6 mm		22	SVC-2, SVC-3		A-012306
	Ø 9 mm	9 mm		2	SVC-2		A-012177
	Ø 9 mm	9 mm		22	SVC-2		A-012307
Bridge tube for corrosion cells	Ø 6 mm	10 mm	250 mm	1	EL-CORR-1 EL-CORR-1DJ	092-VYC4	EL-C-008
	Ø 6 mm		120 mm		EL-FLAT-1CM EL-FLAT-10CM		EL-F-004
	Ø 8 mm		250 mm		EL-CORR-1 EL-CORR-1DJ		EL-C-017
	Ø 8 mm		140 mm		EL-FLAT-1CM EL-FLAT-10CM		EL-F-004B
Bridge tube for analytical cells	Ø 8 mm	10 mm	165 mm	1	EL-ELECTRO-80 EL-ELECTRO-80DJ EL-ELECTRO-150DJ		EL-A-017
Bridge tube for analytical cells	Ø 6 mm	10 mm	155 mm	1	EL-ELECTRO-80 EL-ELECTRO-80DJ EL-ELECTRO-150DJ		EL-A-008
Purge tube for corrosion cells	Single	10 mm	120 mm	1	EL-CORR-1		EL-C-016
Purge tube for corrosion cells	Double	10 mm	220 mm	1	EL-CORR-1DJ		EL-C-006
Purge tube for analytical cells	Single	10 mm	165 mm	1	EL-ELECTRO-80		EL-A-016
Purge tube for analytical cells	Double	10 mm	200 mm	1	EL-ELECTRO-80DJ EL-ELECTRO-150DJ		EL-A-006

Options

Cat. No.

Compatible

reference electrode

Compatible

bridge tubes

Content

092-VYC3

A-012167

A-012178

A-012176

A-012306

A-012177

A-012307

10 glass frits (Φ2.8mm Coralpor™)

200mm long heat shrink utbe (Φ3.2mm)

092-VYC4

-

EL-C-005

EL-C-017

EL-F-004B

EL-F-004

EL-A-017

EL-A-008

10 glass frits (Φ4mm Coralpor™)

200mm long heat shrink utbe (Φ4.8mm)

Small & Big Volume Cell Vials

Description		Volume	OD	ID	Height	Quantity	Purpose	Cat. No.
Small volume cell vials	Sample vial	5 mL	18 mm	15.6 mm	30 mm	10	VC-4	A-011504
		20 mL	28 mm	25.6 mm	50 mm	10	SVC-2, SVC-3	A-001056
		100 mL	50 mm	46.4 mm	72 mm	1	Bulk electrolysis	A-012632
	Water jacketed-glass vial	5 mL	40 mm	15.6 mm	40 mm	1	VC-4	A-012672
		20 mL	55 mm	25.6 mm	50 mm	1	SVC-2, SVC-3	A-001051
		100 mL	70 mm	46.4 mm	80 mm	1	Bulk electrolysis	A-012652
	Cell holder for 20 mL vial					1	SVC-2, SVC-3	A-001209
Big volume cell vials	Sample vial	80 mL	90 mm	62 mm	80 mm	1	EL-ELECTRO-80	EL-A-001
	Sample vial	1,000 mL	120 mm	90 mm	175 mm	1	EL-CORR-1	EL-C-001
	Water jacketed-glass vial	80 mL	90 mm	62 mm	85 mm	1	EL-ELECTRO-80DJ	EL-A-002
	Water jacketed-glass vial	1,000 mL	120 mm	90 mm	200 mm	1	EL-CORR-1DJ	EL-C-002
	Aluminum base holder for magnetic stirrer and 1L cell vial						EL-CORR-1 EL-CORR-1DJ EL-ELECTRO-80 EL-ELECTRO-80DJ EL-ELECTRO-150DJ	EL-C-018

Description		Cat. No.
Plate material evaluating cell		A-011951
구성	PTFE cell (body & base)	-
	O-ring	-
	Screw 20 mm, 2 ea	-
	Purging tube, 100 mm	-
	Pt counter electrode	A-002222
Options
O-rings, 10 ea		A-012022
RE-1B Ag/AgCl Reference electrode for aqueous electrolyte		A-012167
RE-7N Ag/Ag+ Reference electrode for non-aqueous electrolyte		A-013848

Product		Cat. No.

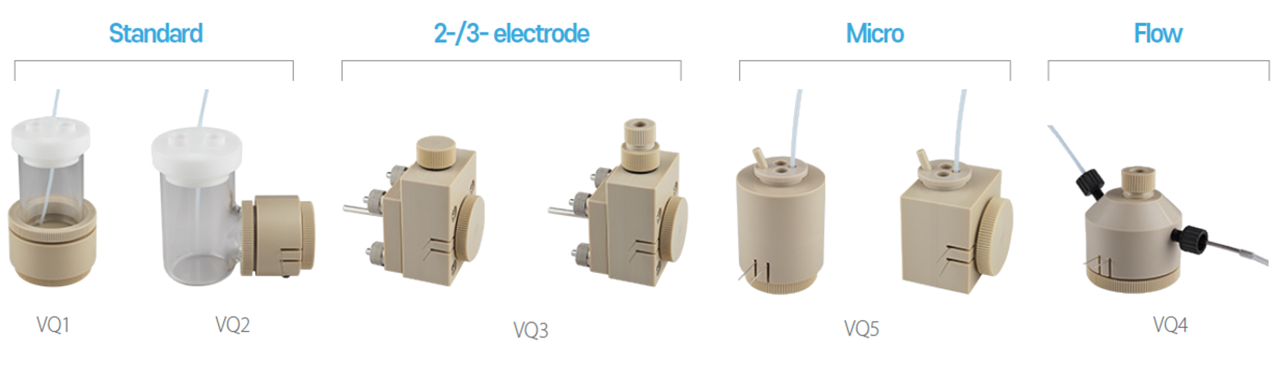

Standard	EQCM cell standard kit 바닥형 (20 mL)	VQ1
	EQCM cell standard kit 측면형 (20 mL)	VQ2
2-/3- electrode	2-electrode EQCM cell standard kit (1 mL)	VQ3
	3-electrode EQCM cell standard kit (1 mL)
Micro	Micro EQCM cell starter kit 바닥형 (1 mL)	VQ5
	Micro EQCM cell starter kit 측면형 (1 mL)
Flow	EQCM flow cell standard kit	VQ4

Description	Cat. No.
Thin-layer flow cell	VF3-S
- Cell body
- Electrode holder
- 1/16 SUS316 tube
- Teflon tube
- PEEK tube
- Tube connector
- Gasket
Options
O-ring set, Tube, Tube connector, Teflon gasket set, Silicon gasket set

Materials	FlexCell® PP	FlexCell® PTFE
Main	PP (PolyPropylene)	PTFE (PolyTetraFluorEthylene)
Gasket	Silicon
O-rings	EPDM (EthylenePropyleneDiene Monomer)
Cover plate	PSU (PolySUlfone)
Gas compartments	PMMA (PolyMethylMethAcrylate)	PSU (PolySUlfone)
Counter electrode	Pt-Ir (Platinum-Iridium)

Description	Cat. No.
FlexCell® PP - Electrochemical test cell made of PP	G-FLEXCELL/PP
FlexCell® PTFE - Electrochemical test cell made of PTFE	G-FLEXCELL/PTFE
FlexCell® Analyte compartment PP for membrane studies	G-COMP/PP
FlexCell® Analyte compartment PTFE for membrane studies	G-COMP/PTFE

Description	Cat. No.
FlexCell® - Spare part pack	G-FLEXCELL/SPARE
FlexCell® - Counter electrode	G-FLEXCELL/CE
FlexCell® - Temperature control box	G-FLEXCELL/CTRL
