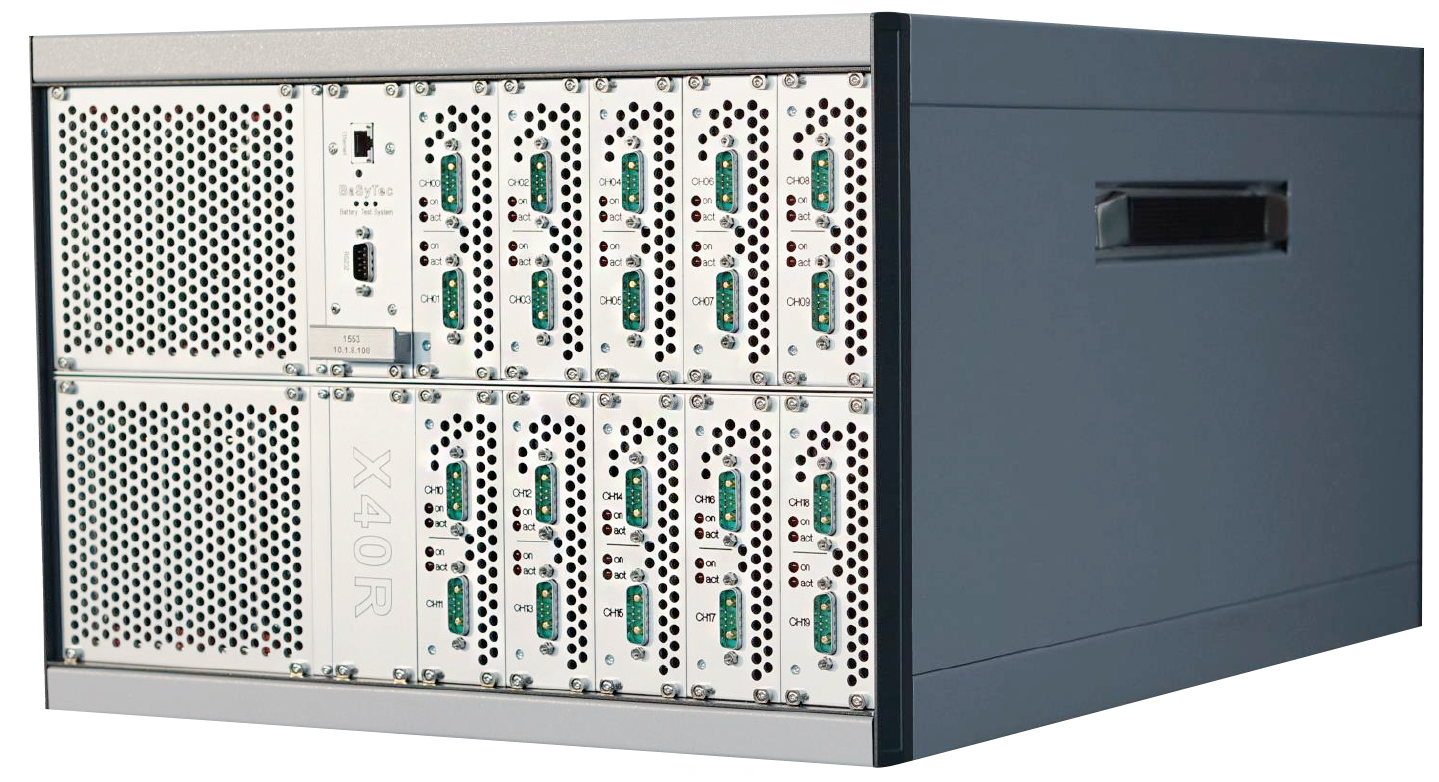

XCTS Mk II
Regenerative Battery Test System
Maker:
BaSyTec (Germany)
FEATURES
TECHNICAL SPECIFICATIONS
40A | 60A | 80A | |
Max. current/chan. | 40A | 60A | 80A |
Max. Power/chan. | 200W | 300W | 400W |
Parallel operation | Yes, 80A | Optional, 600A | Optional, 800A |
Range switching | automatic and dynamic | ||
Chans/Unit | 8 or 20 | 5, 10 or 12 | 4 or 10 |
Voltage range | 0-6V | ||
Min. disch. volt | 1V | ||
Resolution | 0.1mV / 1mA | 0.1mV / 0.05mA | 0.1mV / 1mA |
Accuracy | 1mV 10mA +0.1% up to 20A 20mA +0.1% up to 40A | 1mV 1mA +0.1% up to 1.5A 10mA +0.1% up to 20A 30mA +0.1% up to 60A | 1mV 10mA +0.1% up to 20A 20mA +0.1% up to 40A 40mA +0.1% up to 80A |
Measurement | Voltage (4W), current, temperature | ||
Temp. input type | NTC 5k (precision +/-2K) Epcos B57861S0502 or GE TK95 | ||
Time res./rise time | 1µs / 1ms | ||
Sampling rate Output change rate | Peak 0.5ms Min. 10ms (but not more than 1kHz continually per system) | ||
Current/voltage ripple | < 0.01%FS / < 0.5mV | ||
Control mode | Current, voltage, power, resistance and combinations | ||
Energy recovery | Yes, between the channels | ||
Recovery to the grid | Optional, total efficiency up to 70% (charge) / 60% (discharge) | ||
Software | BaSyTest | ||
Interface | Ethernet | ||
Connector | D-SUB 7W2 | D-SUB 9W4 | |
Noise | 70 - 85dB(A) (without recovery to the grid) 60 - 83dB(A) (with recovery to the grid) | ||
Size/weight/Supply No recovery to the grid | 450mm*310 (180)mm*500mm 40kg (25kg), 400VAC / 50Hz / 3 phases+N (230VAC / 16A) | ||
Size/weight/Supply Recovery to the grid | 450*310*620mm 70kg, 400VAC / 50Hz / 3 phases+N | ||
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
