Voltammetry Cell kits




Voltammetry Cells

악세사리 제품은 PC 화면으로 보시는 것을 권장합니다.


* 화면 하단의 [PC 모드로 보기]를 클릭하시면

모바일에서도 PC 화면과 동일하게 보실 수 있습니다.

Voltammetry Cells

(BioLogic)

·  다양한 실험에 맞는 Voltammetry cell


·  Macro electrochemistry 응용을 위한 large

volume cell


(* Large volume cell 은 double jacketed cell 에

구성 가능)

SVC-2 (A-012668)


Description
Cat. No.
Contents
Sample vial
20mL
(7 ea)
A-001056
Counter electrode
57mm
A-002222
PTFE cap
-A-012670
Additional items

Adaptor

10 to 6

-
Options
Sample holder9.0 mm
(2 ea)
A-012177
Cell holder
For 20mL
A-001209
Purge tube (ETFE)
1mA-010537

SVC-3 (A-012669)


Description
Cat. No.
Contents
Sample vial
20mL
(7 ea)
A-001056
Counter electrode
50mm
A-002233
PTFE cap
-A-012671
Options
Sample holder
6.0 mm
(2 ea)
A-012176
Cell holder
For 20mL
A-001209
Purge tube (ETFE)
1mA-010537

VC-4 (A-011224)


Description
Cat. No.
Contents
Sample vial
5mL
(7 ea)
A-011504
Counter electrode
57mm
A-002222
PTFE cap
-A-011226
Additional items

Cell holder

A-011227
Options
Purge tube (ETFE)
1mA-010537

Bulk electrolysis cell (A-001197)


Description
Cat. No.
Contents
Sample vial
100mL
(1 ea)
A-012632
Counter electrode
230mm
A-002234
PTFE cap
-A-012551
Additional items

Porous

carbon

electrode

A-010530
Lid for CE
A-001198

Chamber

for CE

A-001196
O-ring
A-001236
Port plug
A-009131
Stirrer bar
A-000178
Options
Purge tube (ETFE)
1m
A-010537
PTFE cap for CV
100mL
A-013596

Special SK-2 cell kit (A-012763)

Description
Cat. No.
Contents
SVC-3 cell kit
A-012669

PK-3

polishing kit

A-011975

Glassy carbon

working

electrode

A-002012

Pt working

electrode

A-002013

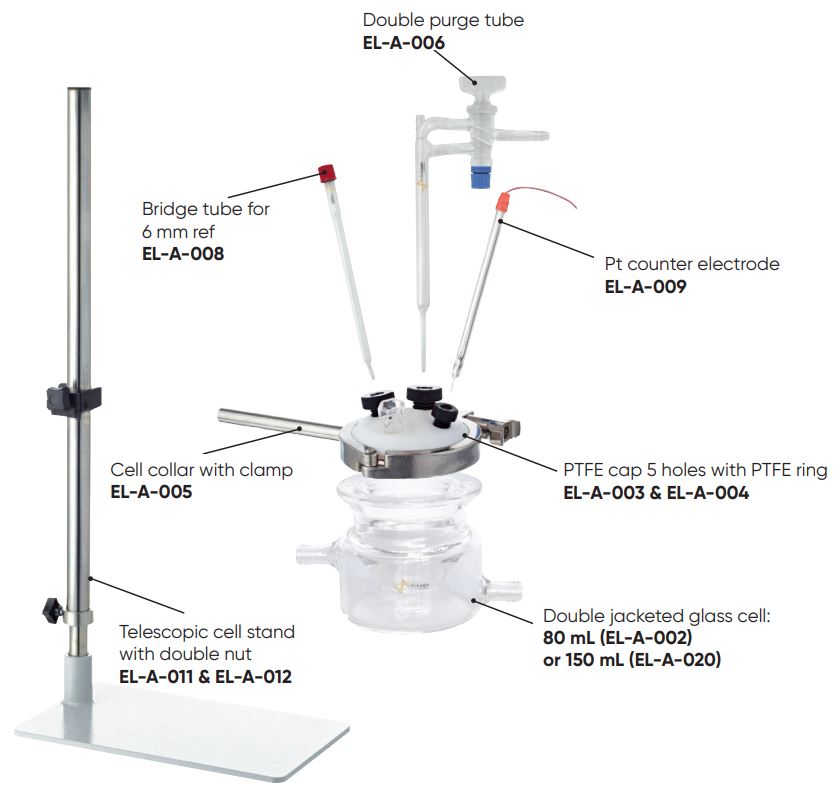

EL-ELECTRO-80
EL-ELECTRO-80DJ
EL-ELECTRO-150DJ
Cat. No.
Contents
Glass cell 80mL
●
-
-
EL-A-001
Double jacketed glass cell 80 mL
-
●
-
EL-A-002
Double jacketed glass cell 150 mL
-
-
●
EL-A-020
PTFE cap 5 holes
●
●
●
EL-A-003
PTFE ring, silicon encapsulated, OD 102 mm
●
●
●
EL-A-004
Cell collar with clamp
●
●
●
EL-A-005
Double purge tube
-
●
●
EL-A-006
Bridge tube for reference electrode, OD 6 mm
●
●
●
EL-A-008
Platinum counter electrode
●
●
●
EL-A-009
Purge tube
●
-
-
EL-A-016
Double nut 25 mm and 12 mm diameter
-
●
●
EL-A-011
Telescopic cell stand
-
●
●
EL-A-012
Options
Electrode bridge extension for electroanalytical cell
EL-A-022
Bridge tube for reference electrode of OD 8 mm
EL-A-017
PT100 probe, indicate connector type
EL-C-014
PTFE cap 5 holes compatible with BluRev RDE/RRDE
094-A-CAP
Magnetic stirrer & heater, without PT100 probe
220V

EL-C-015A
110V

EL-C-015B
Aluminum base holder for magnetic stirrer
EL-C-018
Set of 10 porous 4 mm glass frit (CoralPor™) with PTFE heat shrink (200 mm)
092-VYC4


* 250mL cells are also available : glass cell EL-A-018 or double jacketed glass cell EL-A-021

* Reference electrodes have to be purchased separately.




Voltammetry Cells

(EC-Frontier)

·  셀 고정장치가 포함되어 안정적인 실험 가능


·  200μL의 극미량부터 50mL까지 다양한 셀 용량


·  Purge tube 장착형 / 미장착형


·  Standard, Compact Cell, VB7, VB7A : 6mm 전극용


·  VB6A, VB6B : 3mm 전극용

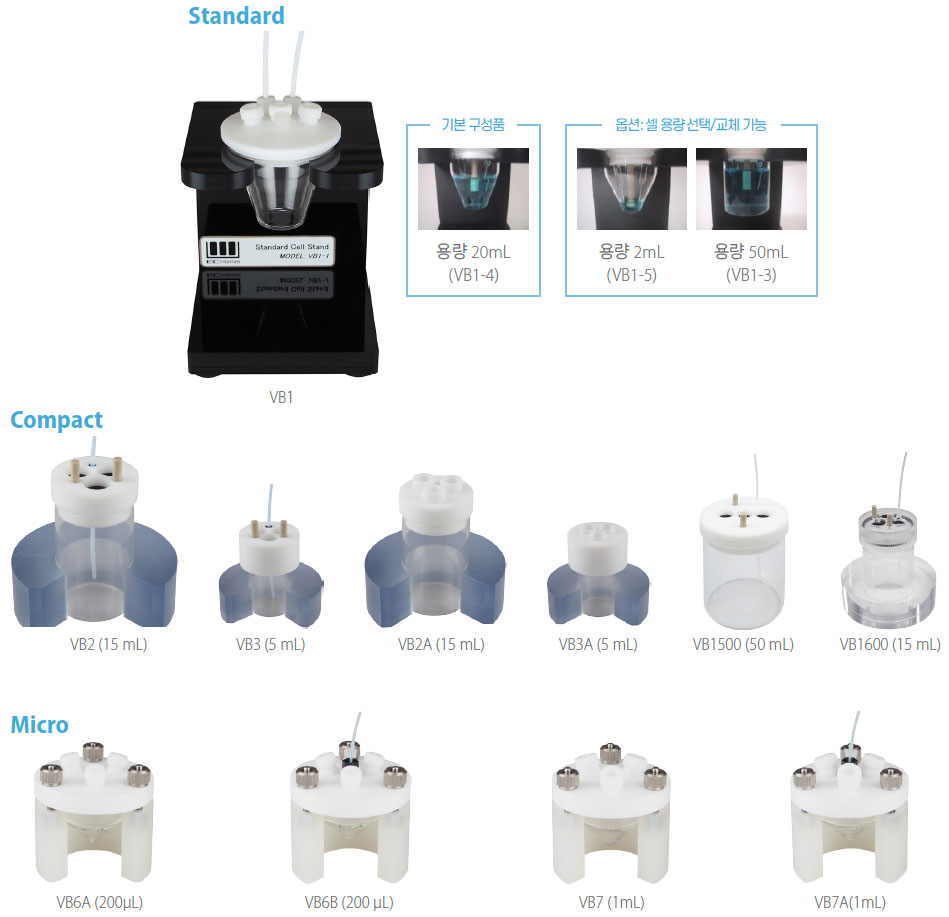

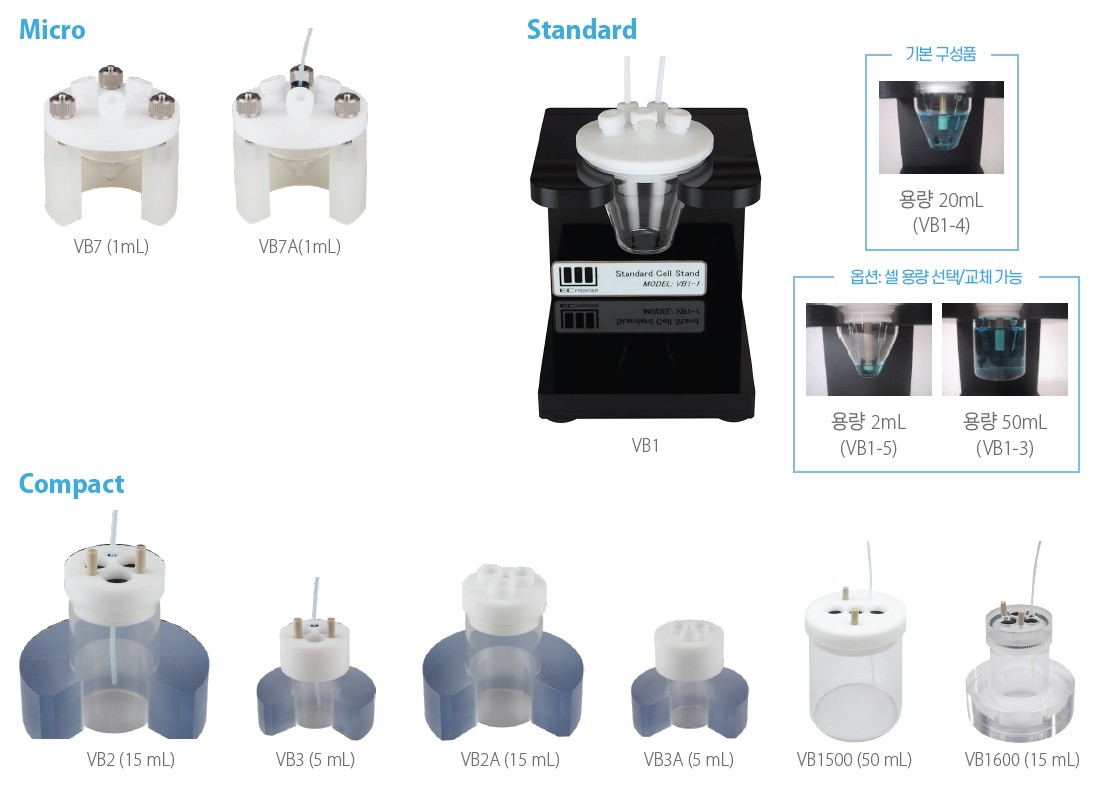

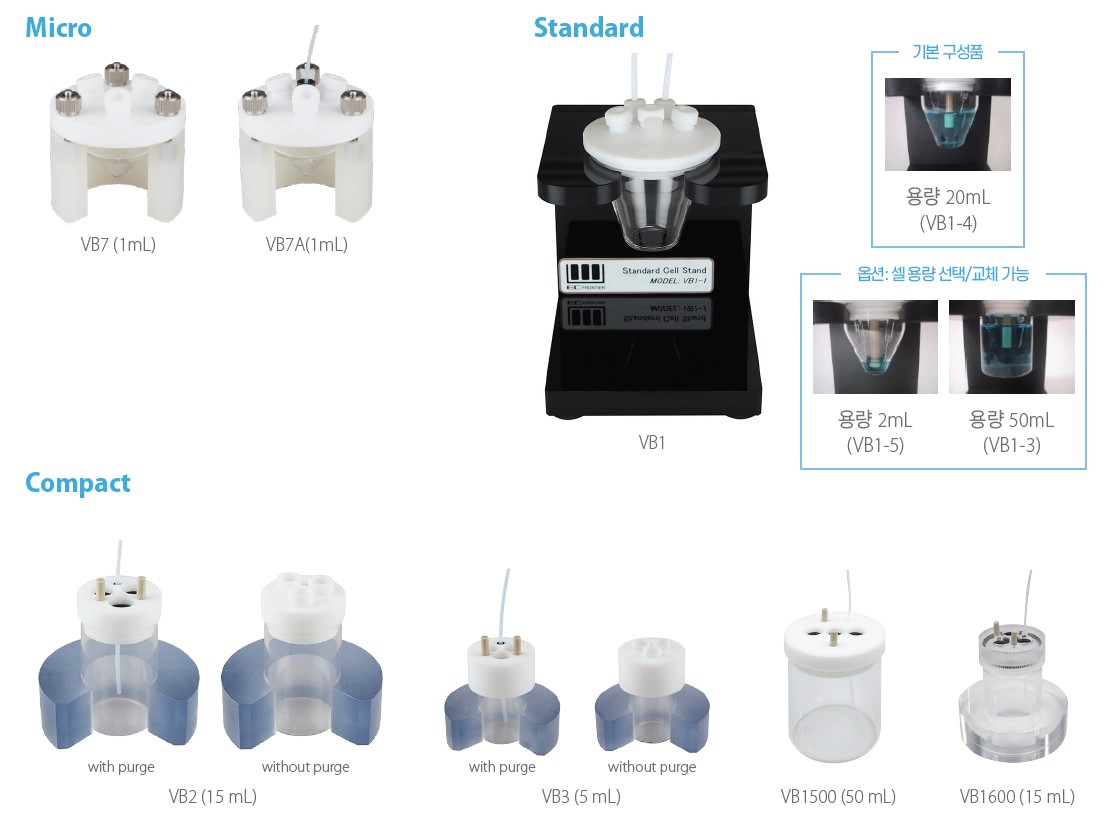

ProductComponentsCat. No.
Glass cellCell capPurge tubeCell stand
StandardStandard analytical cell kit (20 mL) : Standard
●

●

●
●
VB1-S
Standard analytical cell kit (50 mL) : Option
Standard analytical cell kit (2 mL) : Option
CompactCompact analytical cell kit with purge (15 mL)
●
●
●
●
VB2-S
Compact analytical cell kit without purge (15 mL)
●
●
-
●
Compact analytical cell kit with purge (5 mL)
●
●
●
●
VB3-S
Compact analytical cell kit without purge (5 mL)
●
●
-
●
Compact analytical cell kit with purge (50ml)
●
●
●
●VB1500-S
Compact analytical cell kit with purge (15ml) – Alkaline-resistant
●
●
●
●
VB1600-S
MicroMicro analytical cell kit with purge (1 mL)
●
●
●
●
VB7A-S
Micro analytical cell kit (1 mL)
●
●
-
●
VB7-S
 Options
 O-ring set
 3-way cock for purge tube connection

Gas Diffusion Cells

(EC-Frontier)

·  3상 계면 가스 확산 전기화학 셀


·  가스 챔버와 액체 챔버 사이에 GDE를 배치하여 기체의 반응을 직접 수행할 수 있음


·  격막 분리 구조로 간섭을 최소화하기 때문에 안정적인 측정이 가능


·  투명한 설계로 셀 내부 관찰이 용이함

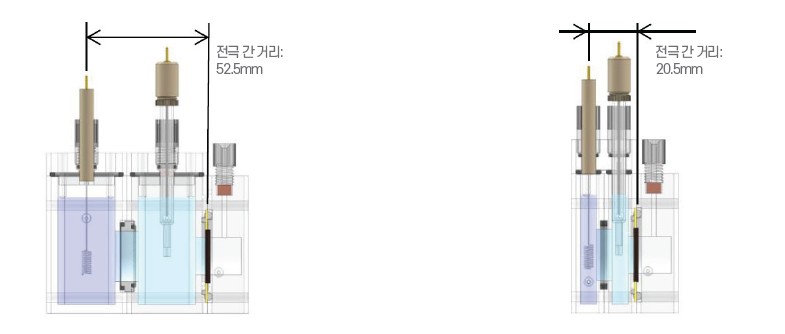

·  기본형(VB1700) 셀 또는, 전극 사이의 거리를 단축시킨 단거리형(VB1700A) 셀 선택 가능

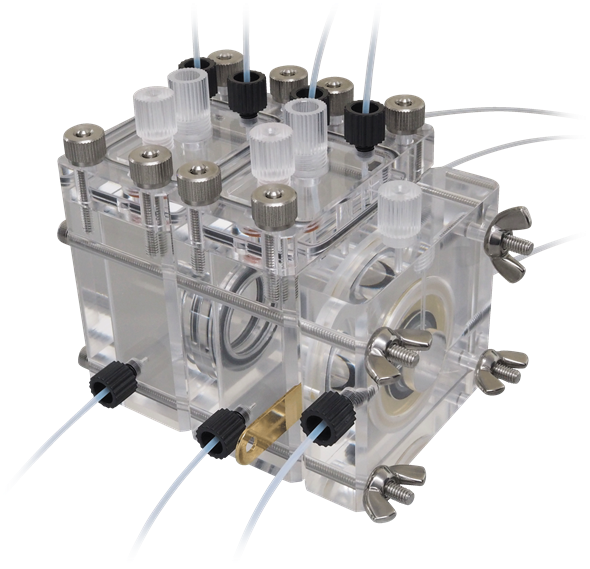

VB1700
VB1700

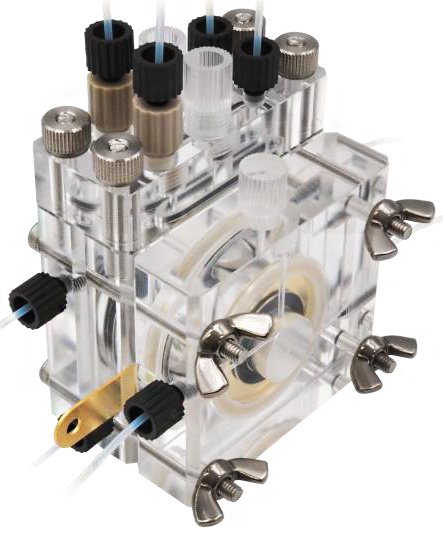

VB1700A
VB1700A
DescriptionVB1700-S (Cat. No. 11250)VB1700A-S (Cat. No. 11315)
MaterialSUS304, SUS316/gold plating, acrylic, PEEK, PTFE, Viton gas bucket, silicon viton O-ring, silicon O-ring

Electrode collector : SUS304 / SUS440C (hardening treatment),

PEEK, PTFE, Zirconia Ceramic

Gas diffusion electrode size- Reaction area : 2cm2 / Dia. Φ16
- Adapted size : Φ25~Φ32
- Thickness : 190~370μm

Replacement Parts

DescriptionVB1700-S (Cat. No. 11250)VB1700A-S (Cat. No. 11315)
Rubber(3회분)Vyton gasket
Silicon & Vyton O-ring
Tube connectors(for 1/16” tube), 5 EA
PEEK
Tube connectors(blank type), 5 EA
PEEK
Teflon tube (2m)

- Material : PTFE

- Outside dia. : 1/16”

- Inside dia. : 0.8mm

Septums, 25 EA
Silicon

Voltammetry Cells

(AMEL)

·  전기화학 실험을 위한 다양한 형태의 셀

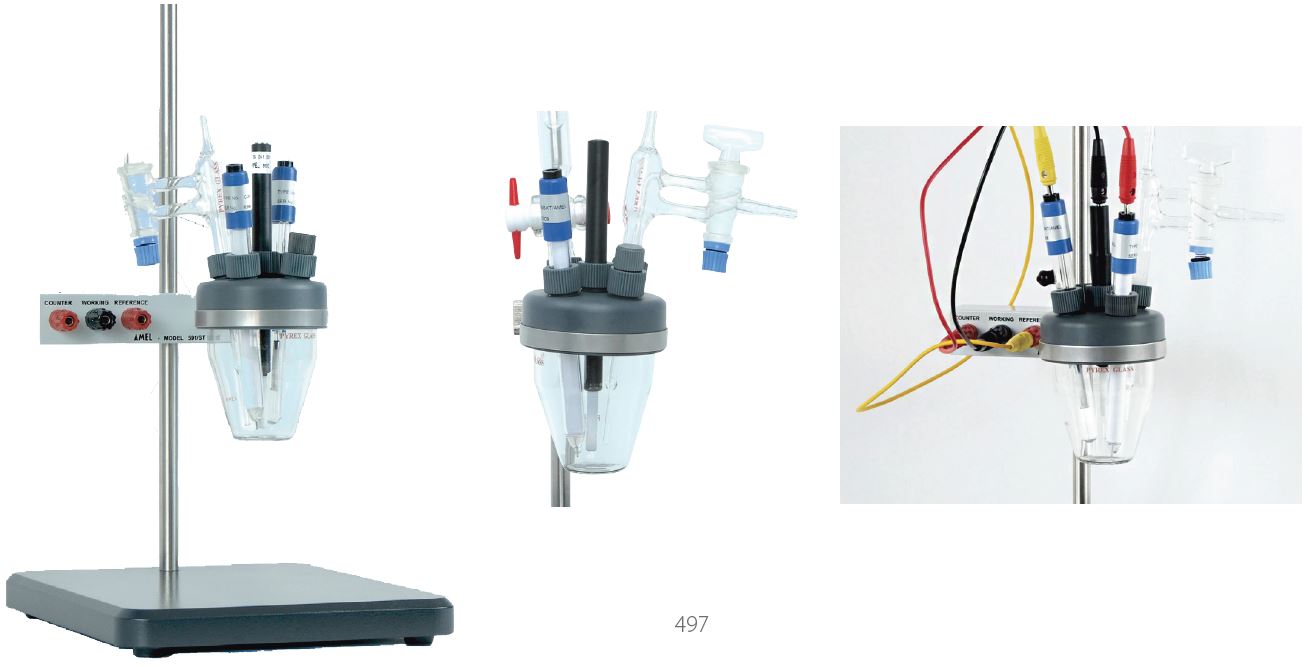

General Purpose Cell

Description
Cat. No.
Universal cell with 5 holes (dia. 12 mm), 70 ml , Luggin capillary
497




Microcell

Description
Cat. No.
Microcell with built-in gas bubbler and Pt CE, 5 ml
430/MC
3-electrode microcell with built-in gas bubbler, 20 ml
495

Basic & Standard Cell

(Redoxme)

2전극/3전극 실험을 위한 가장 기본적인 전기화학 셀 키트입니다.

DescriptionExperimental environment typeCat.No.
Basic electrochemical cell kit (50ml)AqueousB-A-BEC-50
OrganicB-O-BEC-50
PTFE basic electrochemical cell kit (50ml)AqueousB-A-PTFE_BEC-50
OrganicB-O-PTFE_BEC-50
Standard electrochemical cell kit (100ml)AqueousB-A-STD_EC-100
OrganicB-O-STD_EC-100
Standard electrochemical cell kit (150ml)AqueousB-A-STD_EC-150
OrganicB-O-STD_EC-150
Standard electrochemical cell kit (200ml)AqueousB-A-STD_EC-200
OrganicB-O-STD_EC-200
Standard electrochemical cell kit (250ml)AqueousB-A-STD_EC-250
OrganicB-O-STD_EC-250
Standard electrochemical cell kit (350ml)AqueousB-A-STD_EC-350
OrganicB-O-STD_EC-350
Standard electrochemical cell kit (500ml)AqueousB-A-STD_EC-500
OrganicB-O-STD_EC-500
Standard electrochemical cell kit (1000ml)AqueousB-A-STD_EC-1L
OrganicB-O-STD_EC-1L
Standard electrochemical cell (500ml)AqueousC-A-STD_EC-500
Standard electrochemical cell (1000ml)C-A-STD_EC-1L

Jacketed type Cells

(Redoxme)

2중 처리된 전기화학 셀

Jacketed type

DescriptionVolumeExperimental environment typeCat.No.
Jacketed standard electrochemical cell kit100mlAqueousB-A-STD_EC-100-J
OrganicB-O-STD_EC-100-J
150mlAqueousB-A-STD_EC-150-J
OrganicB-O-STD_EC-150-J
200mlAqueousB-A-STD_EC-200-J
OrganicB-O-STD_EC-200-J
250mlAqueousB-A-STD_EC-250-J
OrganicB-O-STD_EC-250-J
350mlAqueousB-A-STD_EC-350-J
OrganicB-O-STD_EC-350-J
500mlAqueousB-A-STD_EC-500-J
OrganicB-O-STD_EC-500-J
1000mlAqueousB-A-STD_EC-1L-J
OrganicB-O-STD_EC-1L-J

Dual & Triple holder type Cells

(Redoxme)

2개 또는 3개의 샘플 홀더를 동시에 장착할 수 있는 형태의 전기화학 셀

Dual holder type

Standard
Standard
Jacketed
Jacketed
DescriptionCell typeVolumeExperimental
environment type		Cat.No.
Electrochemical dual holder cell kitStandard
350mlAqueousB-A-STD_EC_DH-350
OrganicB-O-STD_EC_DH-350
500mlAqueousB-A-STD_EC_DH-500
OrganicB-O-STD_EC_DH-500
1000mlAqueousB-A-STD_EC_DH-1L
OrganicB-O-STD_EC_DH-1L
Jacketed
350mlAqueousB-A-STD_EC_DH-350-J
OrganicB-O-STD_EC_DH-350-J
500mlAqueousB-A-STD_EC_DH-500-J
OrganicB-O-STD_EC_DH-500-J
1000mlAqueousB-A-STD_EC_DH-1L-J
OrganicB-O-STD_EC_DH-1L-J

Triple holder type

Standard
Standard
Jacketed
Jacketed
DescriptionCell typeVolumeExperimental
environment type		Cat.No.
Electrochemical triple holder cell kitStandard500mlAqueousB-A-STD_EC_TH-500
OrganicB-O-STD_EC_TH-500
1000mlAqueousB-A-STD_EC_TH-1L
OrganicB-O-STD_EC_TH-1L
Jacketed500mlAqueousB-A-STD_EC_TH-500-J
OrganicB-O-STD_EC_TH-500-J
1000mlAqueousB-A-STD_EC_TH-1L-J
OrganicB-O-STD_EC_TH-1L-J

Two-compartment type Cells

(Redoxme)

2개의 구획으로 나뉘어진 형태의 전기화학 셀.

Two-compartment type

Standard
Standard
Multiport
Multiport
with addtional inlet/outlet
with addtional inlet/outlet
Autoclavable
Autoclavable
DescriptionCell typeExperimental
environment type		Cat.No.
Two compartment electrochemical cell kit (50ml)StandardAqueousB-A-2CEC-50
OrganicB-O-2CEC-50
MultiportAqueousB-A-2CMEC-50
OrganicB-O-2CMEC-50
with additional
inlet/outlet		AqueousB-A-2CEC+-50
OrganicB-O-2CEC+-50
Autoclavable two-compartment electrochemical cell (50ml)B-AC_2CEC-50

Two-compartment bottom mount type

Standard
Standard
Front contact
Front contact
DescriptionCell typeExperimental
environment type		Sample sizeCat.No.
Two-compartment bottom mount electrochemical cell kit (50ml)Screw mount
Aqueous-B-A-2C_BM_EC-50
OrganicB-O-2C_BM_EC-50
Front contact
Aqueous5 x 5mmB-A-2C_BM_FC_EC-50-5x5
OrganicB-O-2C_BM_FC_EC-50-5x5
Aqueous7 x 7mmB-A-2C_BM_FC_EC-50-7x7
OrganicB-O-2C_BM_FC_EC-50-7x7
Aqueous10 x 10mmB-A-2C_BM_FC_EC-50-10x10
OrganicB-O-2C_BM_FC_EC-50-10x10
Aqueous15 x 15mmB-A-2C_BM_FC_EC-50-15x15
OrganicB-O-2C_BM_FC_EC-50-15x15

Bottom Mount type Cells

(Redoxme)

Bottom mount cell

Electrochemical cell
Electrochemical cell
Corrosion cell
Corrosion cell
H-cell
H-cell
DescriptionExperimental environment typeMount typeCat.No.
Bottom mount electrochemical cell kit (15ml)AqueousMagneticB-A-BMM_EC-15
OrganicB-O-BMM_EC-15
AqueousScrewB-A-BM_EC-15
OrganicB-O-BM_EC-15
Bottom mount corrosion cell kit (15ml)AqueousMagneticB-A-BMM_CC-15-1
OrganicB-O-BMM_CC-15-1
AqueousScrewB-A-BM_CC-15-1
OrganicB-O-BM_CC-15-1
Bottom mount electrochemical H-cell kit (50ml)AqueousB-A-BM_HC-50
OrganicB-O-BM_HC-50

Bottom mount front contact cell

DescriptionExperimental
environment type		Mount typeSample sizeCat.No.
Bottom mount front contact electrochemical H-cell kitAqueous-5 x 5mmB-A-BM_FC_HC-50-5x5
7 x 7mmB-A-BM_FC_HC-50-7x7
10 x 10mmB-A-BM_FC_HC-50-10x10
15 x 15mmB-A-BM_FC_HC-50-15x15
Organic5 x 5mmB-O-BM_FC_HC-50-5x5
7 x 7mmB-O-BM_FC_HC-50-7x7
10 x 10mmB-O-BM_FC_HC-50-10x10
15 x 15mmB-O-BM_FC_HC-50-15x15
Bottom mount front contact electrochemical cell kitAqueousMagnetic5 x 5mmB-A-BMM_FC_EC-15-5x5
7 x 7mmB-A-BMM_FC_EC-15-7x7
10 x 10mmB-A-BMM_FC_EC-15-10x10
15 x 15mmB-A-BMM_FC_EC-15-15x15
AqueousScrew5 x 5mmB-A-BM_FC_EC-15-5x5
7 x 7mmB-A-BM_FC_EC-15-7x7
10 x 10mmB-A-BM_FC_EC-15-10x10
15 x 15mmB-A-BM_FC_EC-15-15x15
OrganicMagnetic5 x 5mmB-O-BMM_FC_EC-15-5x5
7 x 7mmB-O-BMM_FC_EC-15-7x7
10 x 10mmB-O-BMM_FC_EC-15-10x10
15 x 15mmB-O-BMM_FC_EC-15-15x15
OrganicScrew5 x 5mmB-O-BM_FC_EC-15-5x5
7 x 7mmB-O-BM_FC_EC-15-7x7
10 x 10mmB-O-BM_FC_EC-15-10x10
15 x 15mmB-O-BM_FC_EC-15-15x15
