    Voltammetry Cells

     (BioLogic)

  • 다양한 실험에 맞는 Voltammetry cell
  • Macro electrochemistry 응용을 위한 large volume cell(* Large volume cell은 double jacketed glass cell 구성가능)


Small Volume

Cells

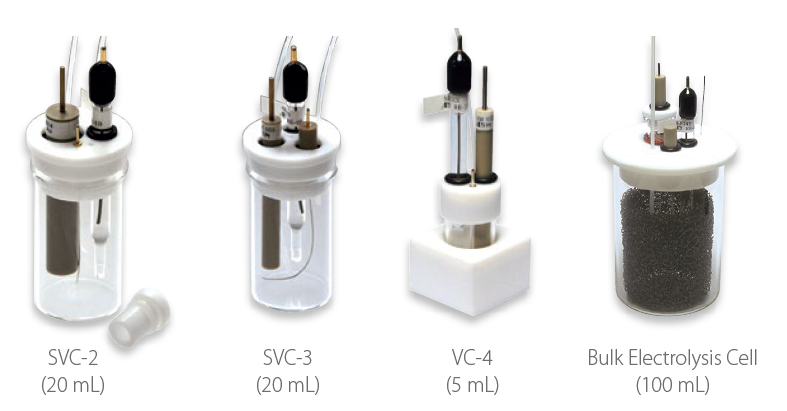

SVC-2

(A-012668)

SVC-3

(A-012669)

VC-4

(A-011224)

Bulk electrolysis cell

(A-001197)

Description
Cat. No.
Description
Cat. No.
Description
Cat. No.
Description
Cat. No.
Contents
Sample vial
20 mL(7ea)
A-001056
20 mL (7ea)
A-001056
5 mL (7 ea)
A-011504
100 mL (1 ea)
A-012632
Counter electrode
57 mm
A-002222
50 mm
A-002233
57 mm
A-002222
230 mm
A-002234

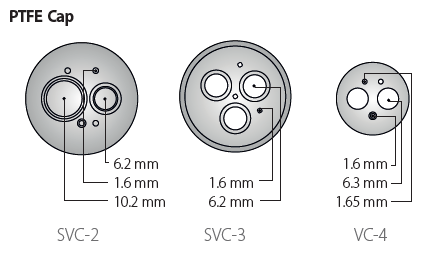

PTFE cap
-
A-012670
-
A-012671
-
A-011226
-
A-012551

Purge tube (ETFE),

100mm

-
-
-
-
-
-
-
-
Additional items

Adaptor

10 to 6


-
-
-
Cell holder
A-011227

Porous

carbon

electrode

A-010530
Lid for CE
A-001198

Chamber

for CE

A-001196
O-ring
A-001236
Port plug
A-009131
Stirrer bar
A-000178
  1. Options
Sample holder
9.0 mm (2ea)
A-012177
6.0 mm(2ea)
A-012176




Cell holder
For 20 mL
A-001209
For 20 mL
A-001209




Purge tube (ETFE)
1 m
A-010537
1 m
A-010537
1 m
A-010537
1 m
A-010537
PTFE cap
 for CV






100 ml
A-013596

Special SK-2 cell kit

(A-012763)

Description
Cat. No.
Contents
SVC-3 cell kit
A-012669

PK-3

polishing kit

A-011975

Glassy carbon

working

electrode

A-002012

Pt working

electrode

A-002013

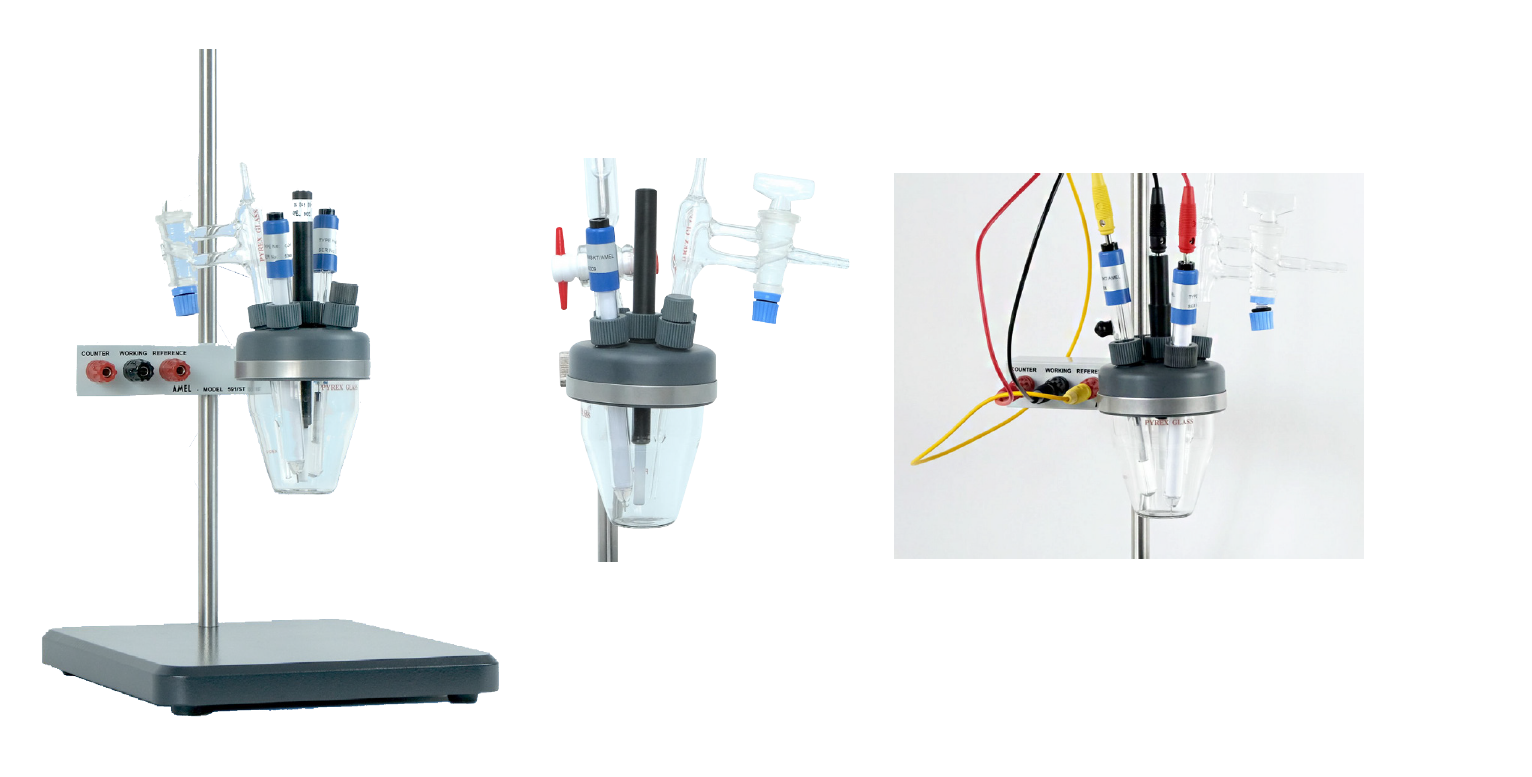

Large

Volume

Cells

Standard

analytical

cell kit

Complete

analytical

cell kit

Cat. No.
EL-ELECTRO-1
EL-ELECTRO-2
EL-ELECTRO-3
Contents
Glass cell 80mL
●
-
-
EL-A-001

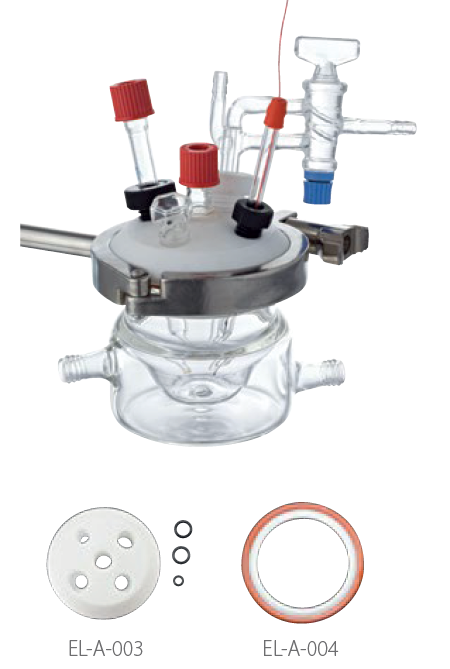

Double jacketed glass cell 80 mL
-
●
-
EL-A-002
Double jacketed glass cell 150 mL
-
-
●
EL-A-020
PTFE cap 5 holes
●
●
●
EL-A-003
PTFE ring, silicon encapsulated, OD 102 mm
●
●
●
EL-A-004
Cell collar with clamp
●
●
●
EL-A-005
Double purge tube
-
●
●
EL-A-006
Bridge tube for reference electrode, OD 6 mm
●
●
●
EL-A-008
Platinum counter electrode
●
●
●
EL-A-009
Purge tube
●
-
-
EL-A-016
Double nut 25 mm and 12 mm diameter
-
●
●
EL-A-011
Telescopic cell stand
-
●
●
EL-A-012
Options
Electrode bridge extension for electroanalytical cell
EL-A-022
Bridge tube for reference electrode of OD 8 mm
EL-A-017
PT100 probe, indicate connector type
EL-C-014
PTFE cap 5 holes compatible with BluRev RDE/RRDE
094-A-CAP
Magnetic stirrer & heater, without PT100 probe
220V

EL-C-015A
110V

EL-C-015B
Aluminum base holder for magnetic stirrer
EL-C-018
Set of 10 porous 4 mm glass frit (CoralPor™) with PTFE heat shrink (200 mm)
092-VYC4


* 250mL cells are also available : glass cell EL-A-018 or double jacketed glass cell EL-A-021

* Reference electrodes have to be purchased separately.







Voltammetry Cells

(EC-Frontier)

  • 셀 고정장치가 포함되어 안정적인 실험 가능
  • 200μL의 극미량부터 50mL까지 다양한 셀 용량
  • Purge tube 장착형 / 미장착형
  • Standard, Compact Cell, VB7, VB7A : 6mm 전극용
  •  VB6A, VB6B : 3mm 전극용

Voltammetry Cells


ProductComponentsCat. No.
Glass cellCell capPurge tubeCell stand

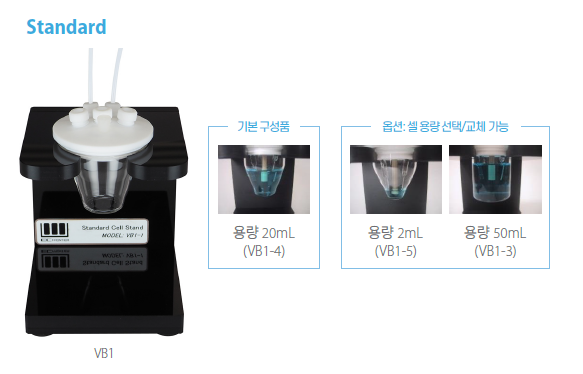

StandardStandard analytical cell kit (20 mL) : Standard
●

●

●
●
VB1-S
Standard analytical cell kit (50 mL) : Option
Standard analytical cell kit (2 mL) : Option

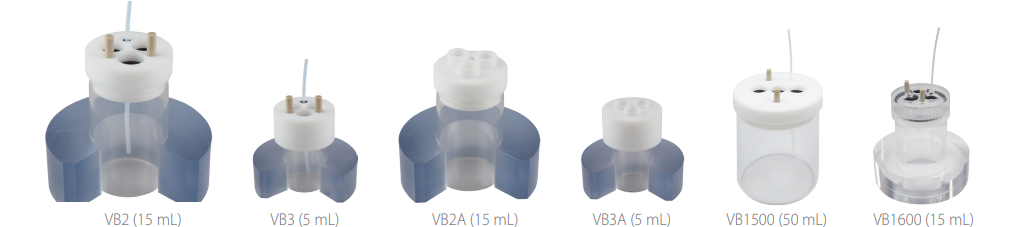

CompactCompact analytical cell kit with purge (15 mL)
●
●
●
●
VB2-S
Compact analytical cell kit (15 mL)
●
●
-
●
VB2A-S
Compact analytical cell kit with purge (5 mL)
●
●
●
●
VB3-S
Compact analytical cell kit (5 mL)
●
●
-
●
VB3A-S
Compact analytical cell kit with purge (50ml)
●
●
●
●VB1500-S
Compact analytical cell kit with purge (15ml) – Alkaline-resistant
●
●
●
●
VB1600-S

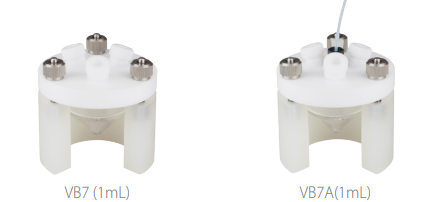

MicroMicro analytical cell kit with purge (1 mL)
●
●
●
●
VB7A-S
Micro analytical cell kit (1 mL)
●
●
-
●
VB7-S
 Options
 O-ring set
 3-way cock for purge tube connection



Voltammetry Cells

(AMEL)

  • 전기화학 실험을 위한 다양한 형태의 Cell

General Purpose Cell


Description
Cat. No.
Universal cell with 5 holes (dia. 12 mm), 70 ml , Luggin capillary
497




Microcell


Description
Cat. No.

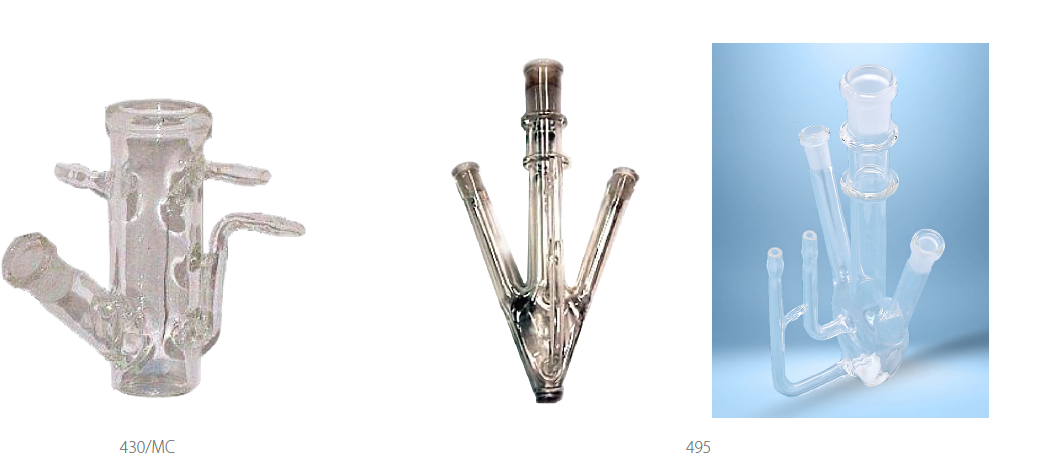

Microcell with built-in gas bubbler and Pt CE, 5 ml
430/MC
3-electrode microcell with built-in gas bubbler, 20 ml
495
