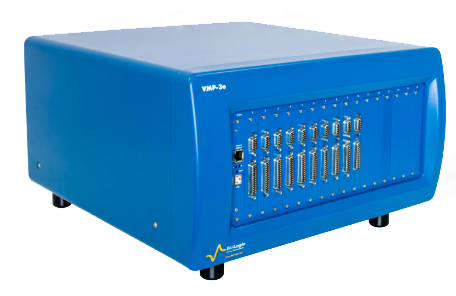

VMP-3e
16-channel research grade workstation
Maker
BioLogic (France)
General Specifications
| Slots available | Up to 16 |
| Electrodes connections | 2,3,4,5 |
| Compliance | 20 V adjustable from ± 10 V between [-20 ; 20] V |
| Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
| Software | EC-Lab, EC-Lab developper package |
| Add-ons compatibility | Yes |
| Dimension (W x D x H) | 495 x 465 x 260 mm |
| Weight | 15kg |
| Power requirement | 1000W |
| Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel Specifications : Control
| Voltage | |
| Ranges | Customizable ranges. Compliance of 20 V adjustable (example 0 - 20 V). Up to 60 V with FlexP-0060 |
| Accuracy | < 0.1 % FSR* (20 mV) |
| Resolution | 5 µV to 305 µV |
| Current | |
| Ranges | ± 10 µA to ± 1 A (6 ranges). Automatic current range available. Up to 800 A with four FlexP-0012 |
| Accuracy | < 0.1 % FSR* (min 20 nA) |
| Resolution | 0.004 % of the range (min 760 pA) |
| EIS | |
| EIS capability | 1 MHz to 10 µHz |
| EIS quality indicators | Yes (with "e" type channel board) |
* FSR : Full Scale Range
Channel Specifications : Measurement
| Voltage | |
| Ranges | ± 2.5 V, ± 5 V, ± 10 V. ± 10 V adjustable (example 0 - 20 V) Up to 60 V with FlexP0060/FlexP0160 |
| Accuracy | < 0.1 % FSR* (20 mV) |
| Resolution | 76 µV below 10 V, 152 µV from 10 to 15 V, 305 µV from 15 to 20 V |
| Current | |
| Ranges | ± 10 µA to ± 1 A (6 ranges). Automatic current range available. Up to 800 A with four FlexP-0012 |
| Accuracy | < 0.1 % FSR* (min 20 nA) |
| Resolution | 0.004 % of the range (min 760 pA) |
| EIS | |
| EIS capability | 1 MHz to 10 µHz |
| EIS quality indicators | Yes (with "e" type channel board) |
* FSR : Full Scale Range
Advanced
| Floating options | CE to ground |
| Permeation (WE to ground) | No |
| Multi-electrode (CE to ground) | Yes (with "e" type channel board) |
| Filters | Software |
| Input / output | 2x analog inputs 1x analog output 3x TTL (trigger input/output, and safety) 2x monitor outputs (current and voltage) |
| Stability control mode | 7 bandwidths |
| Calibration | More than 50 verified points |
SPECIFICATIONS
| General | |
| Slots available | Up to 16 |
| Electrodes connections | 2,3,4,5 |
| Compliance | 20 V adjustable from ± 10 V between [-20 ; 20] V |
| Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
| Software | EC-Lab, EC-Lab developper package |
| Add-ons compatibility | Yes |
| Dimension (W x D x H) | 495 x 465 x 260 mm |
| Weight | 15kg |
| Power requirement | 1000W |
| Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel specifications | ||
| Control | Measurement | |
| Voltage | ||
| Ranges | Customizable ranges. Compliance of 20 V adjustable (example 0 - 20 V). Up to 60 V with FlexP-0060 | ± 2,5 V, ± 5 V, ± 10 V. ± 10 V adjustable (example 0 - 20 V). Up to 60 V with FlexP0060/FlexP0160 |
| Accuracy | < 0.1 % FSR* (20 mV) | < 0.1 % FSR* (20 mV) |
| Resolution | 5 µV to 305 µV | 76 µV below 10 V, 152 µV from 10 to 15 V, 305 µV from 15 to 20 V |
| Current | ||
| Ranges | ± 10 µA to ± 1 A (6 ranges). Automatic current range available. Up to 800 A with four FlexP-0012. | |
| Accuracy | < 0.1 % FSR* (min 20 nA) | |
| Resolution | 0.004 % of the range (min 760 pA) | |
| EIS | ||
| EIS capability | 1 MHz to 10 µHz | |
| EIS quality indicators | Yes (with "e" type channel board) | |
* FSR : Full Scale Range
| Advanced | |
| Floating options | CE to ground |
| Permeation (WE to ground) | No |
| Multi-electrode (CE to ground) | Yes (with "e" type channel board) |
| Filters | Software |
| Input / output | 2x analog inputs 1x analog output 3x TTL (trigger input/output, and safety) 2x monitor outputs (current and voltage) |
| Stability control mode | 7 bandwidths |
| Calibration | More than 50 verified points |
