Scheme 1: high-precision automatic test system, model SEMS1100
Scheme 2: simple manual test device, model SEMS1000 (applied to electrochemical test)
Scheme3: simple manual test device, model SEMS1300 (applied to ionic conductivity test)

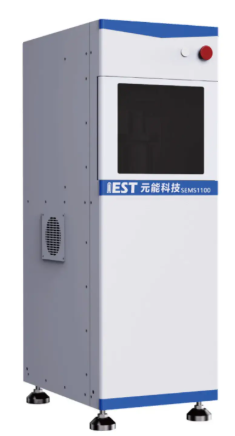

SEMS1100
Solid Electrolyte Test System
Maker:
IEST (CHINA)
FEATURES
산화물, 황화물, 폴리머 등 다양한 유형의 solid electrolytes 테스트 가능
샘플 압축, 전기화학적 성능 측정 및 분석을 위한 다기능 통합 장비
APPLICATIONS
performance
Scheme 1: high-precision automatic test system, model SEMS1100
System Parameters | |
| Pressure measurement accuracy | 0.05 ~ 5T |
| Pressure measuring range | ±0.3%F.S |
| Thickness test range | 0 ~ 8mm |
| Thickness test resolution | 0.5μm |
| Thickness test accuracy | ±10μm |
| Sample mould diameter | 13mm (Other sizes can be customized) |
| Temperature and humidity range | 0 ~ 50℃ / 20% ~ 90%RH |
| Temperature and humidity accuracy | ±2℃ / ±5%RH |
Scheme 2: simple manual test device, model SEMS1000 (applied to electrochemical test)
System Parameters | |
| Pressure measuring range | 10 ~ 400kg |
| Pressure measurement accuracy | ±0.3%F.S |
| Thickness test range | 0 ~ 8mm |
| Thickness test resolution | 5μm |
| Thickness test accuracy | ±10μm |
| Sample mould diameter | 13mm (Other sizes can be customized) |
| Temperature and humidity range | 0 ~ 50℃ / 20% ~ 90%RH |
Scheme3: simple manual test device, model SEMS1300 (applied to ionic conductivity test)
System Parameters | |
| Pressure measuring range | 50 ~ 2000kg |
| Pressure measurement accuracy | ±0.3%F.S |
| Thickness test range | 0 ~ 8mm |
| Thickness test resolution | 5μm |
| Thickness test accuracy | ±10μm |
| Sample mould diameter | 13mm (Other sizes can be customized) |
| Temperature and humidity range | 0 ~ 50℃ / 20% ~ 90%RH |
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
