배터리 사이클러

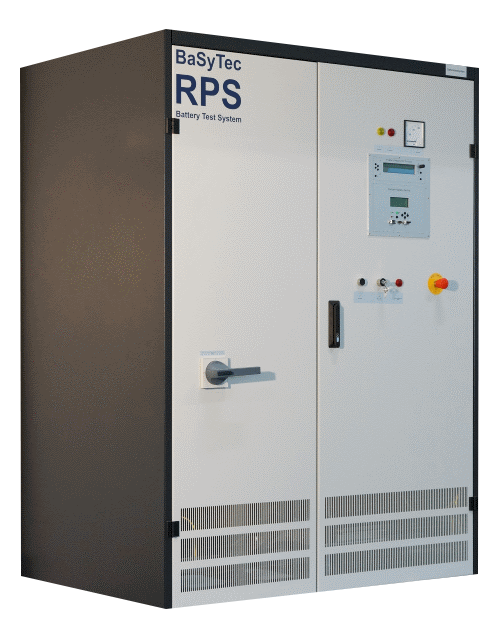

Battery Cyclers
FEATURES
• Voltage : 100 to 1000 V
• Current Output : Up to 1000A
• Parallel Operation : Up to 3 channels (3000A)
• Max. Power : 6 KW / channel
• Battery safety device (BSD) is integrated
TECHNICAL SPECIFICATIONS
Power | Up to 500kW (1.5MW in parallel operation) |
Voltage range | Up to 1500V |
Voltage accuracy / resolution | 0.02% FS / 24Bit* (<=800V) 0.5V / 24Bit* (1000V) 2V / 24Bit* (>1000V) |
4-wire measurement | yes |
Current range | Up to 1000A (3000A in parallel operation) |
Current accuracy / resolution / ripple | 0.05%FS / 24Bit* / <0.3% FS |
Time resolution / | 1 µs / < 1ms |
Current rise time | < 1ms (600V / 800V), < 5ms (other voltages) |
Parallel operation | Yes, up to 3 channels |
Current ranges | optional, up to 2, automatic range switching |
Sampling rate Output change rate | Min. 1ms but not more than 1kHz continually per system |
Standard inputs | Voltage, current, 4* Pt100/4W |
Control modes | Current, voltage, power, resistance and combinations |
Cooling | Air cooled |
Power supply | 400V / 3 phases, N, GND, power factor >0.99 |
Efficiency | up to 95% |
Noise | max. 79 dB(A) |
Isolation monitor | Yes, switchable |
Battery simulator mode | Optional but with reduced accuracy and resolution and not supported by the BaSyTest software. Control via CAN instead |
Emergency stop | Performance level d |
Other options | CAN interface CMU cell voltage/temperature inputs SSMS interface Digital-IO or relay outputs |
Software | BaSyTest |
Interface | Ethernet |
