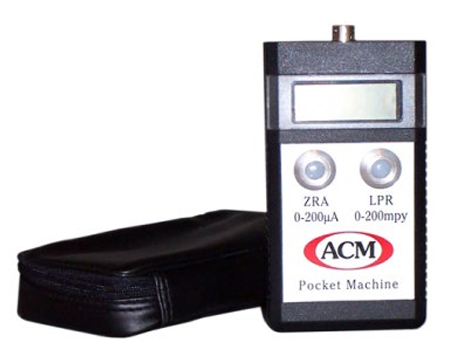

Pocket Machine
Measurement of Linear Polarisation Resistance and ZRA currents for the determination of corrosion rates and galvanic currents.
Maker:
ACM (U.K.)
FEATURES
APPLICATIONS
TECHNICAL SPECIFICATIONS
| Hardware | |
| Dimensions | 18 * 8.5 * 3 cm |
| Power Supply | 9v PP3 (10 years, 4000 measurements) |
| Weight | 300 grams |
| LPR Reading | 0-200 mpy |
| ZRA Range | 0-200 µA |
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
