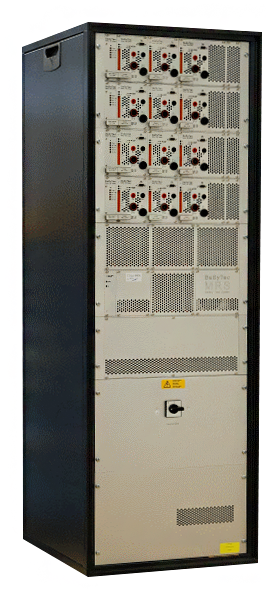

MRS


Regenerative Battery Test System

Maker:

BaSyTec (Germany)

  FEATURES


  • Voltage : 3 to 70 V , 0 to 6 V (Discharge 1 - 6 V)


  • Current Output :  Up to 1000 A


  • Parallel Operation : Up to 4 channels  (2400 A)


  • Automatic and dynamic current range selection


  • Low heat generation and compact design


  • Energy recovery  for high energy efficiency

TECHNICAL SPECIFICATIONS



80V Variant
6V Variant
Charge voltage
3-80V
0-6V
Discharge voltage
3-80V
1-6V
Voltage accuracy / resolution
16mV / 24Bit
1mV / 24Bit
Channel configurations
70A /1.5kW
140A / 3kW
210A / 4.5kW
280A / 7kW
360A / 9kW
500A / 12kW
570A / 14kW
100A
200A
300A
…
600A
800A
1000A
Efficiency charge
up to 90%
up to 80%
Efficiency discharge
up to 87%
up to 70%
4-wire measurement
yes
Current accuracy / resolution / ripple
0.05%FS / 24Bit* / <0.3% FS
Time resolution / Current rise time
1 µs / < 1ms
Parallel operation
Yes, up to 4 channels
Current ranges
optional, up to 3, automatic range switching
Sampling rate Output change rate
Min. 1ms (but not more than 1kHz continually per system)
Standard inputs
Voltage, Current, 2* Pt100/4W, NTC
Control modes
Current, voltage, power, resistance and combinations
Cooling
Air cooled, temperature regulated fans
Power supply
400V / 3 phases, N, GND, power factor >0.99
Noise
50 – 80 dB(A)
Other options
CAN interface
BSD (Battery Safety Device)
CMU cell voltage inputs
CMU Type-K, Pt100/4W or NTC temperature inputs
SSMS interface
Digital-IO or relay outputs
Software
BaSyTest
Interface
Ethernet

Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
