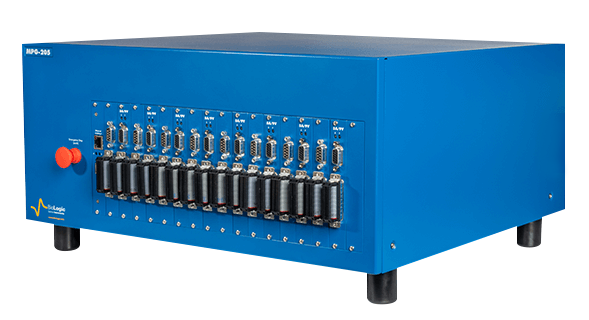

MPG-205

TECHNICAL SPECIFICATIONS

	MPG-2	MPG-205
Channel number	16	8
Cell connection	2, 3, 4 or 5 terminal leads	2 or 4 terminal leads
Voltage
Range	± 10 V	-2 V: 9 V
Control resolution	200 µV down to 5 µV
Measurement resolution	0.004 % of FSR
Accuracy	± 0.1 % of control ± 0.01% of FSR
Current
Max (continuous) per channel	± 100 mA	± 5 A
Ranges	5: 100 mA down to 10 µA	7: 5 A down to 10 µA
Control resolution	0.004 % of FSR /0.8 nA
Measurement resolution	0.004 % of FSR
Accuracy	± 0.1 % of control ± 0.01% of FSR
EIS
Built-in	Optional: simultaneously on every channel
Range	10 µHz to 100 kHz
Measurement
Acquisition time	200 µs
Time base	200 µs
Auxiliary inputs/outputs
Monitor ouput	E and I monitors	I monitor
2 analog inputs	Automatic ± 2.5 V, ± 5 V, ± 10 V ranges – 16 bits resolution
1 analog output	± 10 V range, 16 bits resolution
2 digital inputs	TTL level trigger input
1 digital ouput	TTL level trigger ouput
General
Dimensions (H x W x D)	260 x 495 x 465 mm	254 x 494 x 454 mm
Weight	17 kg	25 kg
Power consumption	350 W	860 W

Model	BER2100	BER2200
Press mode	Cylinder Pipeline gas required,range:5-35MPa)
Testable parameter	Resistance, Pressure Temperature and humidity	Resistance, Pressure Temperature and humidity conductivity, resistivity
Function	One point test Constant pressure condition	Included BER2100 function Automatic measurement software

Model	BER2300	BER2500
Press mode	Servo motor (No pipeline gas required, range:5-60MPa)
Testable parameter	Resistance, Pressure Temperature and humidity conductivity, resistivity	Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density
Function	Included BER2100 function Variable pressure	Included BER2300 function Thickness mesurement Compaction density measurement
