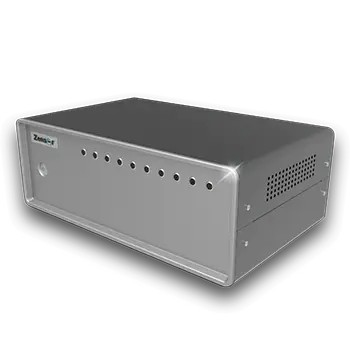

MCP100


Multi-Channel Potentiostat



Maker:

Zensor (TAIWAN)

  FEATURES


  • 기본 2채널 에서 10채널 까지 확장 가능


  •  멀티채널 Simultaneous 모드와 개별 채널의 Individual 모드 사용 가능


  • USB powered


  • Potential range: +2~-2V


  • Current ranges: 10-2~10-10A

SPECIFICATIONS


Electrochemical Methods
Multi-channels with individual control of 3 electrodes system
Multi-channels of electrochemical graphs (including CV,IT,OCP) showing simultaneously or individually
Execution of electrochemaical methods continuously and automatically
Save data automatically
Data Analysis automatically
Electrochemical Method
 Cyclic Voltammetry (CV)
Amperometry (IT)
Open circuit potential (OCP)

Range

Potentai range
+2~-2V
Measured current range
10-2~10-10A
Channels
2~10
Others
Potential resolution
1mV
Potential accuracy
 +- 0.1%
Measured currrent resolution
0.006% current range (1.2fA on 10pA)
Sampling rate
1ms
Power requirement:

AC100~250V,50~60Hz,40W

Size

230(L)*370(W)*130(H)mm
