LN-Z2-HF / HT-Z2-HF

High Frequency Cryostat /   Heating Furnace System

Maker:

TOYO Corporation (JAPAN)

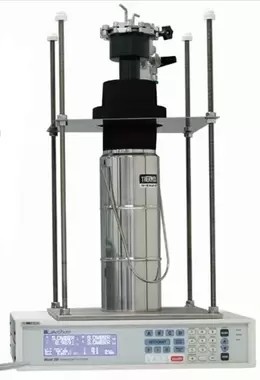

LN-Z2-HF

  FEATURES


  • LN-Z2-HF :  90k ~ 473k์˜ ์˜จ๋„์™€ 20Hz ~ 100MHz์˜ ์šฐ์ˆ˜ํ•œ ์ฃผํŒŒ์ˆ˜ ์‘๋‹ต์„ ๊ฐ–์ถ˜ ์ƒ˜ํ”Œ ํ™€๋” ๊ฒธ ์ €์˜จ ์œ ์ง€ ์žฅ์น˜

                                           EDMS ์†Œํ”„ํŠธ์›จ์–ด๋ฅผ ์‚ฌ์šฉํ•˜์—ฌ ์˜จ๋„ ๋ฐ ์ž„ํ”ผ๋˜์Šค ์ธก์ •์„ ์™„์ „ ์ž๋™ํ™”


LN-Z2-HF - Specification
Temperature control range
90 k ~ 473 k
 Temperature stability
±0.1K
Measurement frequency range
DC ~ 100MHz (Patented technology)
Measurement sample shape
Disc shape: diameter 13 mm or less, thickness 3 mm or less (pressurized sample holder diameter 10 mm or less)
Sample atmosphere
He gas displacement, atmospheric or gas displacement
 Temperature controller
HA-900 Temperature Controller
  •  Sealed and pressurized sample holders available
  • Electromotive voltage samples are also supported
  • Temperature controllerLake Shore Type 336 Temperature Controller

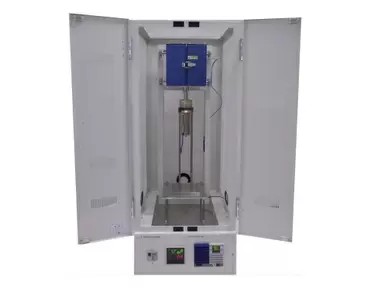

HT-Z2-HF

  FEATURES


  • HT-Z2-HF :  100°C ~ 800°C์˜ ์˜จ๋„ ๋ฒ”์œ„์—์„œ 20Hz ~ 100MHz์˜ ๋„“์€ ์ฃผํŒŒ์ˆ˜ ๋ฒ”์œ„์—์„œ ์ž„ํ”ผ๋˜์Šค๋ฅผ ์ •ํ™•ํ•˜๊ฒŒ ์ธก์ •ํ•  ์ˆ˜ ์žˆ๋Š”

                                          ๊ณ ์˜จ ๋ฐ ๊ณ ์ฃผํŒŒ ํผ๋‹ˆ์Šค ์ œ์–ด ์‹œ์Šคํ…œ


                                           HT-Z2-HF-ROD ๊ณ ์˜จ ๋ฐ ๊ณ ์ฃผํŒŒ ์ƒ˜ํ”Œ ๋กœ๋“œ์™€ ์ž„ํ”ผ๋˜์Šค ๋ถ„์„๊ธฐ๋ฅผ ์‚ฌ์šฉํ•˜๋ฉด ๊ฐ„๋‹จํ•œ ๋ณด์ • ๊ธฐ๋Šฅ๋งŒ์œผ๋กœ ์ธก์ •


                                          ๋˜ํ•œ, ์†Œํ”„ํŠธ์›จ์–ด๋ฅผ ํ†ตํ•ด ํผ๋‹ˆ์Šค ์˜จ๋„๋ฅผ ์ œ์–ดํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์˜จ๋„๋ณ„ ์ž„ํ”ผ๋˜์Šค ์ธก์ •์ด ๊ฐ€๋Šฅ


                                          ๋ฐ˜๋„์ฒด, ์ ˆ์—ฐ์ฒด, ์‚ฐํ™”๋ฌผ๊ณผ ๊ฐ™์€ ์ €ํ•ญ์„ฑ ๋ฌผ์งˆ์— ๋Œ€ํ•œ ์ €ํ•ญ ์˜จ๋„์˜ ์˜์กด์„ฑ์„ ์—ฐ๊ตฌํ•˜๋Š” ๋ฐ ์‚ฌ์šฉ


HT-Z2-HF - Specification
Temperature control range100โ„ƒ๏ฝž800โ„ƒ
 Temperature stability±0.1K
Measurement frequency rangeDC ๏ฝž 100MHz
Measurement sample shapeDisc shape (area: 20 mm φ or less, thickness: 10 mm or less)
Sample atmosphereAtmospheric or gas displacement
 Temperature controllerHA-900 Temperature Controller
Bias voltage sample measurement (optional)
