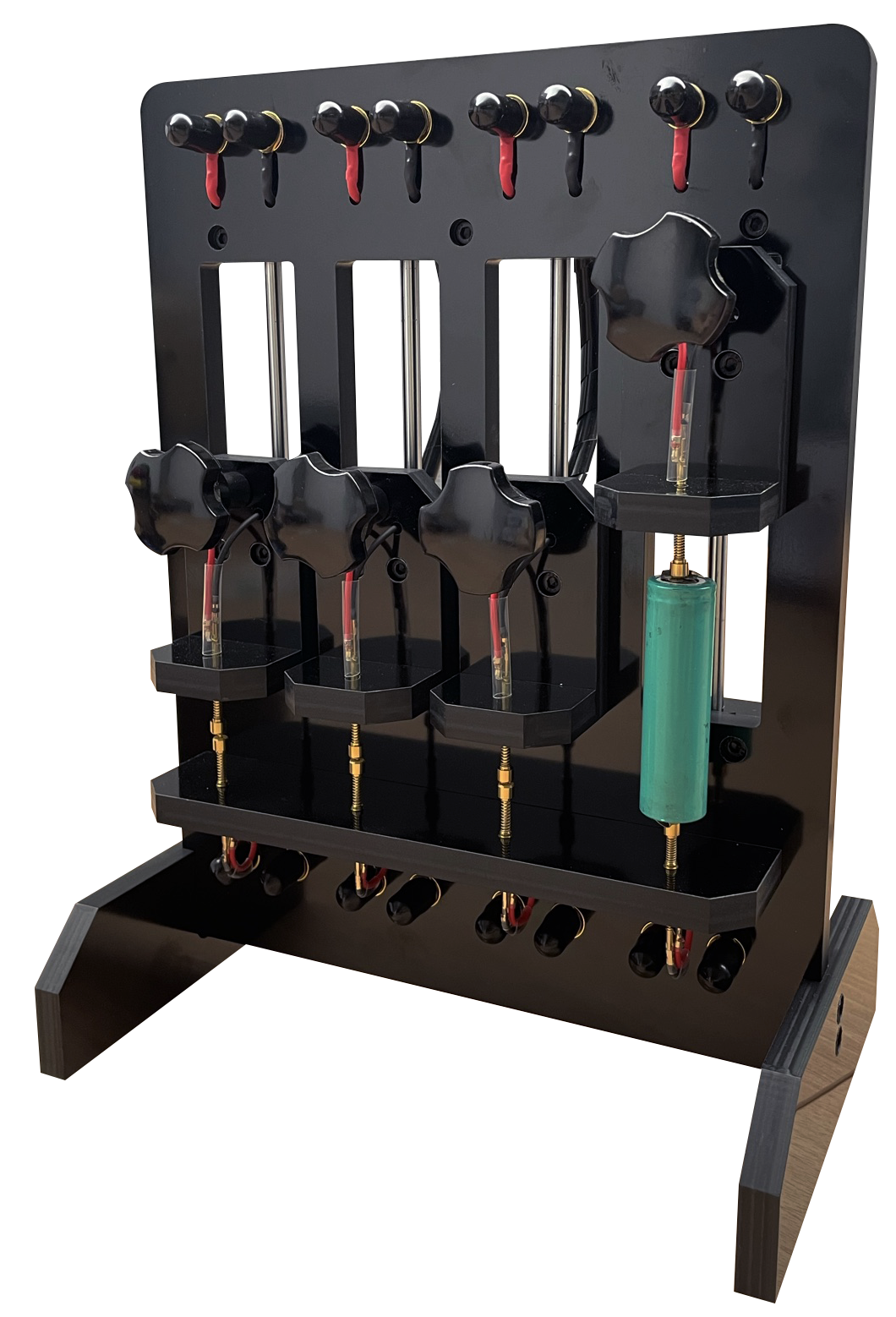

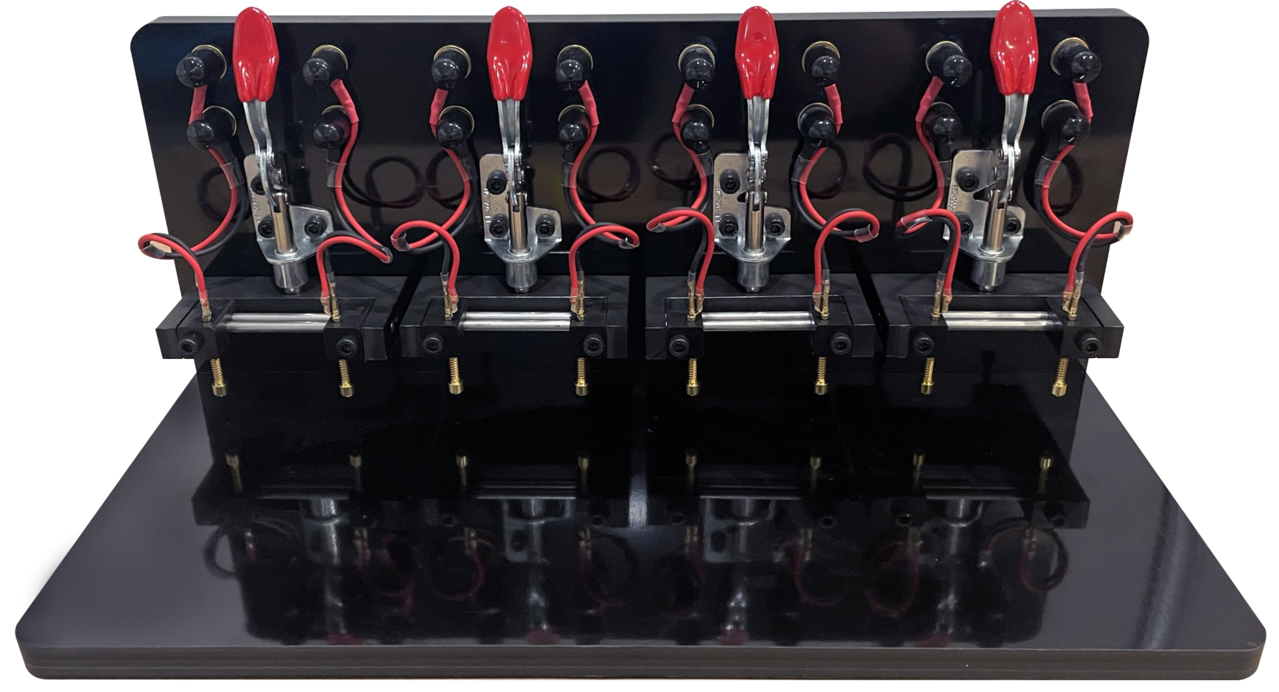

JIG / 케이블 / Faraday Cage 외

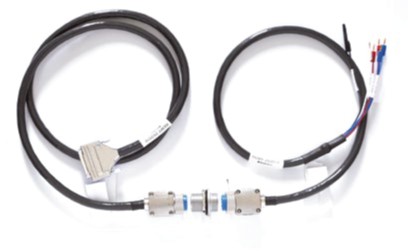

Hermetic Cell Cable for Glove Box

	Essential	Premium
		Standard	Low Current cable
Cat. No.	092-23/5	094-101/6	094-101/8
구성
Feedthrough type	12 pins	25 pins *
Inside glovebox (length : 1 m)	Cable with 2 mm connectors on one side and 12-pin Jaeger connector on the other side	Cable with electrometer on one side and 25-pin connector on the other side
Outside glovebox (length : 1.5 m)	Cable with Sub-D 25 connector on one side and 12 pin Jaeger connector on the other side (length 1.5 m)	Cable with Sub-D 25 connector on one side and 12 pin Jaeger connector on the other side (length 1.5 m)
Requirement
Hole diameter needed in glovebox / mm	27	45

* Two feedthrough seals : one installed in the glove box wall, the other dedicated to the channel board.

Product	Length	Cat.No.
Premium
SP-200 SP-300 VSP-300 VMP-300	2.5m	094-101/3A
	3m	094-101/3B
	5m	094-101/3C
	2.5m *	094-101/4-25
	2.5m (Ultra Low Current)	094-101/4A
	5m (Ultra Low Current)	094-101/4D
Essential
SP-50e SP-150e VSP VSP-3e VMP-3e	1.5m	092-23/1
	1.5 m stack measurements	092-23/1S
	1.5 m high temperature (-40°C to +150°C)	092-23/1HT
	2.5m	092-23/2
	3m	092-23/7
	5m	092-23/3
	10m	092-23/4
Booster 2A, 5A	2.5m	092-33/11
	3m	092-33/12
	5m	092-33/13
Booster 10A, 20A	2.5m	092-33/21
	3m	092-33/22
	5m	092-33/23
BCS cables
BCS-X15 BCS X05 BCS X10	25 cm cell cable for one BCS-X15 channel	096-011/1
	2.5 m cell cable for one BCS-X15 channel	096-011/2
	5 m cell cable for one BCS-X15 channel	096-011/3
	10 m cell cable for one BCS-X15 channel	096-011/4
	30 cm cable for BCS X05/X10	096-021/1
	2.5 m cable for BCS X05/X10	096-021/2
	5 m cable for BCS X05/X10	096-021/3
	10 m cable for BCS X05/X10	096-021/4
Booster to Potentiostat
All boosters	3 m	092-33/5
All boosters	5 m	092-33/6

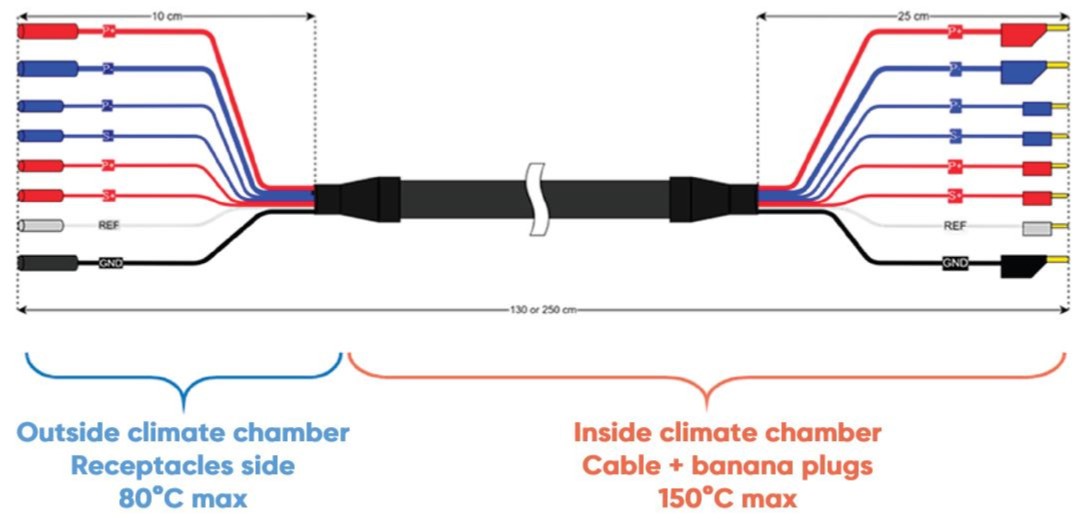

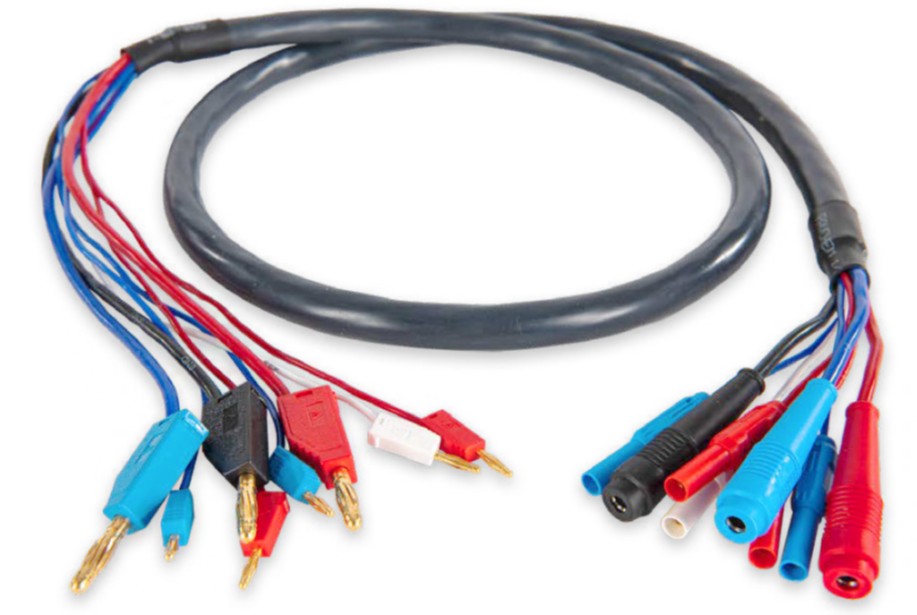

Description		Cat. No.
		092-25/1	092-25/2
Length		1.3 m	2.5 m
Temperature *		-40°C to 150°C
Max. current by using 2 mm input/output/A		2
Max. current by using 4 mm input/output/A		20
Cable diameter / mm		12.7
2mm	Resistance /mOhm**	< 95	< 180
	Open circuit capacity /pF	< 155	< 340
	Short circuit inductance /nH	< 20	< 30
4mm	Resistance /mOhm**	< 25	< 40
	Open circuit capacity /pF	< 155	< 340
	Short circuit inductance /nH	< 195	< 455

* Only for the cables and output banana plugs. Input receptacles can only be used up to 80°C maximum.

** These resistances will not be measured in a 4-point configuration.

The compensation analysis tool can also be used if 2-point measurements are performed.

The compensation analysis tool can also be used to compensate the open circuit capacity as well as the short circuit inductance.

Description		Cat. No.
Alligator clips

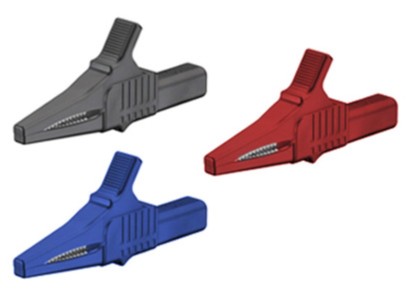

2 mm (pack of 28) : 8 x red, 8 x blue, 8 x white, 4 x black	Temperature: -25°C to +100°C Rated current: 8 A (30 V AC - 60 V DC)Contact resistance: 5 mOhm	092-1001/40
4 mm (pack of 9) : 3 x red, 3 x blue, 3 x black	Temperature: -40°C to +80 °C Rated current: 32 A	092-1001/41

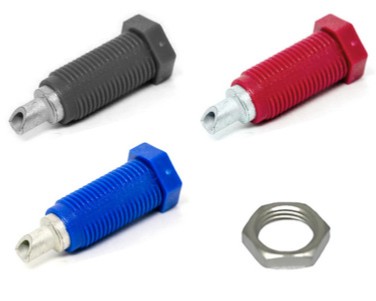

Receptacles
2 mm (pack of 75) : 20 x red, 20 x blue, 20 x white, 15 x black	Temperature: -60°C to +100°C Rated current: 10 A Contact resistance < 1 mOhm	092-1001/42
4 mm (pack of 36) : 12 x red, 12 x blue, 12 x black	Temperature: -60°C to +100°C Rated current: 30 A Contact resistance = 0.5 mOhm	092-1001/43
Banana plugs

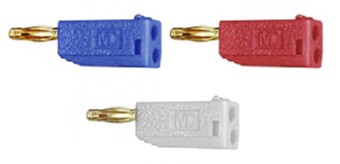

2 mm (pack of 40) : 10 x red, 10 x blue, 10 x white, 10 x black	Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC)	092-1001/44
4 mm (pack of 24) : 8 x red, 8 x blue, 8 x white	Temperature: -40°C to +70°C Rated current: 19 A (30V AC - 60 V DC)	092-1001/45
Adaptors

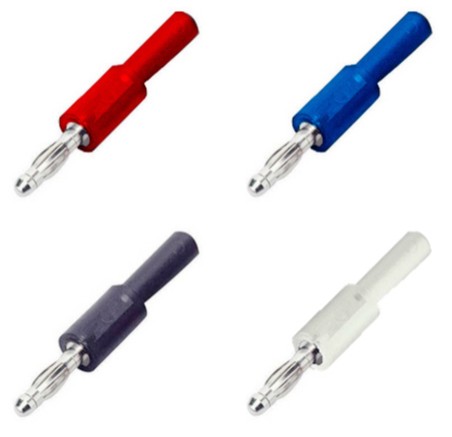

2 mm receptacle to 4 mm plug adapter (pack of 20) : 6 x red, 6 x blue, 4 x white, 4 x black	Temperature: 0°C to +60°C Rated current: 10 A (30V AC - 70 V DC)	092-1001/46

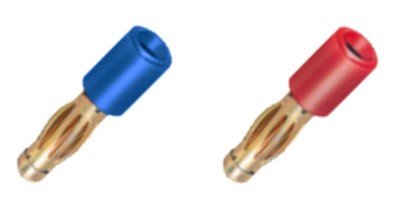

2 mm receptacle to 4 mm plug adapter for banana plug (pack of 32) : 16 x red, 16 x blue	Temperature: -40°C to +70°C Rated current: 25 A (30V AC - 60 V DC)Contact resistance = 0.4 mOhm	092-1001/47

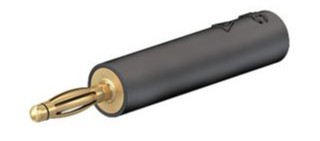

4 mm receptacle to 2 mm plug adapter for banana plug (pack of 20)	Temperature: -40°C to +70°C Rated current: 10 A (30V AC - 60 V DC)	092-1001/48

Product	CC4-60A	CC8	CC4-200A
Cat.No.	096-022	096-015	093-100/CC4
Input
Power cables / receptacles diameter / mm	4		6 (IP2x)
Voltage sense receptacles diameter / mm	2		4
Number of input channels	4	8	4
Max. current / channel/A	15		50
Output
Power cables / receptacles diameter / mm	6 (IP2x)		8 (Amphenol, IP2x)
Voltage sense receptacles diameter / mm	2 (IP2x)		4 (IP2x)
Max. output current / A	60	120	200
Cables details
Output power cables	1 pair of 2 m power cables with 6 mm receptacles		1 pair of 2.5 m power cables with 8 mm receptacles and M8 threads
Output voltage cables	1 pair of 2 m sense cables with 2 mm banana plugs		1 pair of 2.5 m sense cables with 4 mm banana plugs
Instrument compatibility	BCS-815* VSP-300 VMP-300		FlexP0160 FlexP0060 HCV-3048
Included connection kit	094-110/CNT		093-200/CNT
Measurement type	4 point
Max. operating / °C	80
Size (H x W x D) / mm	70 x 170 x 88	70 x 300 x 88	120 x 248 x 169
Weight / kg	3.8

* The CC8 comes with BCS tablets and cables.

It is also compatible with the VSP-300 and VMP-300 and can be provided without cables and tablets using the following part number: 096-015/1.

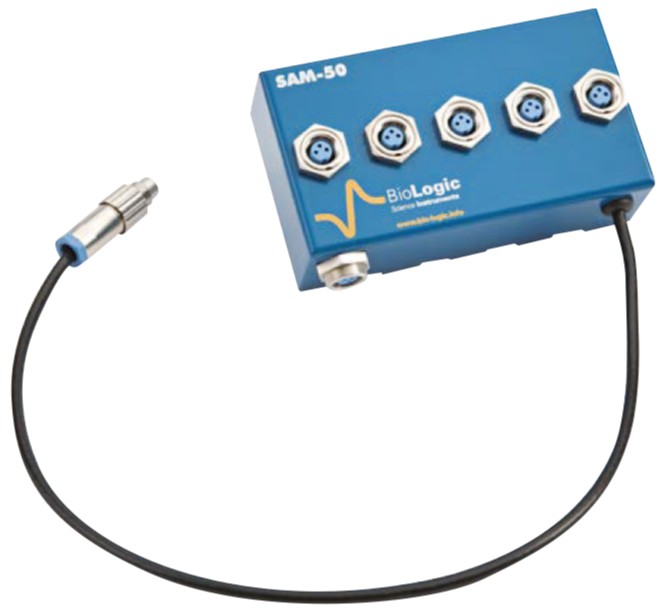

Sense Adapter Module	Cat. No.
SAM-50	092-26
