Hg Type Reference Electrodes

Description	Junction	Electrolyte	Diameter	Length	Purpose	Cat.No.
RE-2BP Hg/Hg₂Cl₂ calomel reference electrode	Ceramic	Saturated KCl	6mm	92mm	SVC-2, SVC-3, VC-4, bulk electrolysis, RRDE-3A, flat cell	A-013430
RE-2CP Hg/Hg₂SO₄ reference electrode, free from chloride		Saturated K₂SO₄			Reference electrode free from chloride ion	A-013431
RE-61AP Hg/HgO reference electrode main body in polyacetal resin		-			For alkaline media	A-013395

※ RE-61AP (Cat.No. A-013395)의 경우 전극 내부 용액이 포함되어 있지 않으니 구매 시 참고하여 주시기 바랍니다.

Description	Junction	Electrolyte	Diameter	Length	Cat.No.
Hg/Hg₂Cl₂ calomel reference electrode with 6 mm joint, 4 mm banana plug	Ceramic	Saturated KCl	0.5mm	50mm	303/SCG/6JZ

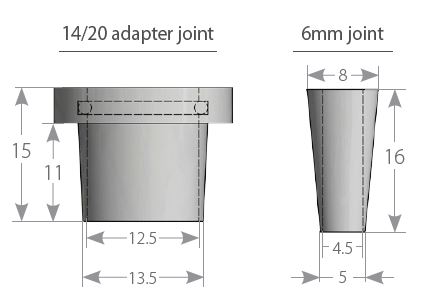

Hg/Hg₂Cl₂ calomel reference electrode with 14/20 adapter joint		Saturated KCl	4.5mm	120mm	303/SCG/12J
Hg/Hg₂Cl₂ calomel double salt bridge reference electrode with 14/20 adapter joint, 4 mm banana plug		Internal : KCl gel External : Sat. KNO₃	12mm	120mm	390/TCG/12J
Hg/Hg₂Cl₂ calomel double salt bridge reference electrode with 6 mm joint, 4 mm banana plug		Internal : KCl gel External : Sat. KNO₃	4.5mm	110mm	390/TCG/6J
Hg₂SO₄ reference electrode with 14/20 adapter joint, 4 mm banana plug		Saturated K₂SO₄	12mm	120mm	383/SHG/12J

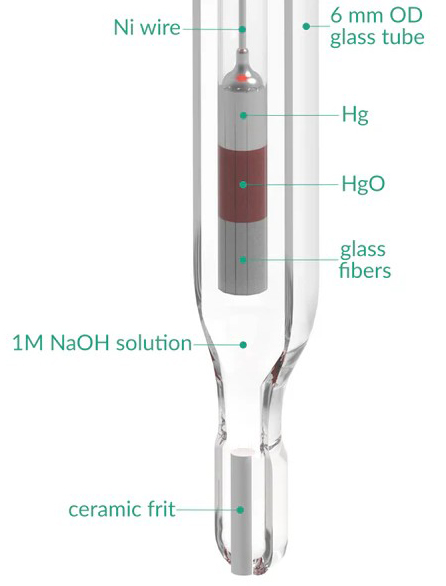

Hg/HgO reference electrode with 14/20 adapter joint, 4 mm banana plug		0.1M KOH (0.1M NaOH on request)	12mm	120mm	383/OHG/12J

Description	Cat.No.
RE-PV preservative vial for reference electrode (10ml)	A-012108
