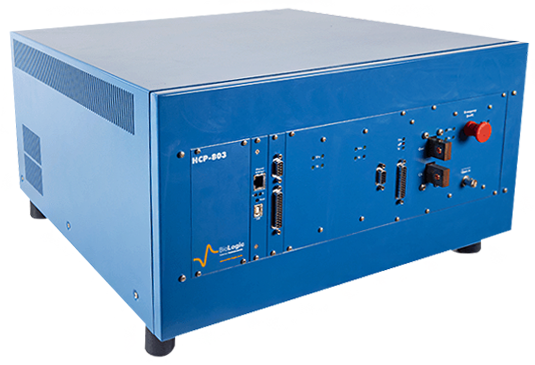

HCP-803
High current p'stat / G'stat for Supercapacitors
and Fuel cells
Maker
BioLogic (France)
Features
• 연료전지 실험에 적합한 고전류 Potentiostat
• Potential noise : 0.18 mV (RMS type)
• Current noise : 14 mA (RMS type)
• Rise/fall time :
[Potentio] 95 µs (no load), [Galvano] 150 µs (load = 10 mΩ, 50 cm cable)
Applications
• Fuel Cell (PEMFC, DMFC, SOFC 등)
General Specifications
Slots available | 1 |
Electrodes connections | 2,3,4,5 |
Compliance | 6 V |
Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
Software | EC-Lab EC-Lab developper package |
Add-ons compatibility | Integrated booster |
Dimension (W x D x H) | 495 x 465 x 262 mm |
Weight | 22.3kg |
Power requirement | 1000W |
Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel Specifications : Control
Voltage control and measurement | |
Ranges | ± 5 V at 1 A, ± 3 V at 80 A |
Accuracy | < 0.1 % FSR* |
Current control and measurement | |
Ranges | ± 80 A |
Accuracy | < 0.5 % FSR* (< 800 mA) |
EIS | |
EIS capability | 10 kHz to 10 µHz |
EIS quality indicators | Yes (with "e" type channel board) |
* FSR : Full Scale Range
Advanced
Floating options | CE to ground |
Filters | Software |
Input / output | 1x external input (TTL level), Temperature probe PT100 (0 to 250 °C), 1x Open IN (0 - 5 V TTL level active low), Overheat shutdown at 70 °C |
Stability control mode | 4 bandwidths |
FEATURES
• 연료전지 실험에 적합한 고전류 Potentiostat
• Potential noise : 0.18 mV (RMS type)
• Current noise : 14 mA (RMS type)
• Rise/fall time : [Potentio] 95 µs (no load), [Galvano] 150 µs (load = 10 mΩ, 50 cm cable)
APPLICATIONS
• Fuel Cell (PEMFC, DMFC, SOFC 등)
SPECIFICATIONS
General | |
Slots available | 1 |
Electrodes connections | 2,3,4,5 |
Compliance | 6 V |
Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
Software | EC-Lab, EC-Lab developper package |
Add-ons compatibility | Integrated booster |
Dimension (W x D x H) | 495 x 465 x 262 mm |
Weight | 22.3kg |
Power requirement | 1000W |
Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel specifications | ||
Control | Measurement | |
Voltage control and measurement | ||
Ranges | ± 5 V at 1 A, ± 3 V at 80 A | |
Accuracy | < 0.1 % FSR* | |
Current control and measurement | ||
Ranges | ± 80 A | |
Accuracy | < 0.5 % FSR* (< 800 mA) | |
EIS | ||
EIS capability | 10 kHz to 10 µHz | |
EIS quality indicators | Yes (with "e" type channel board) |
* FSR : Full Scale Range
Advanced | |
Electrode connections | CE to ground |
Filters | Software |
Input / Output | 1x external input (TTL level), Temperature probe PT100 (0 to 250 °C), 1x Open IN (0 - 5 V TTL level active low), Overheat shutdown at 70 °C |
Stability control mode | 4 bandwidths |
