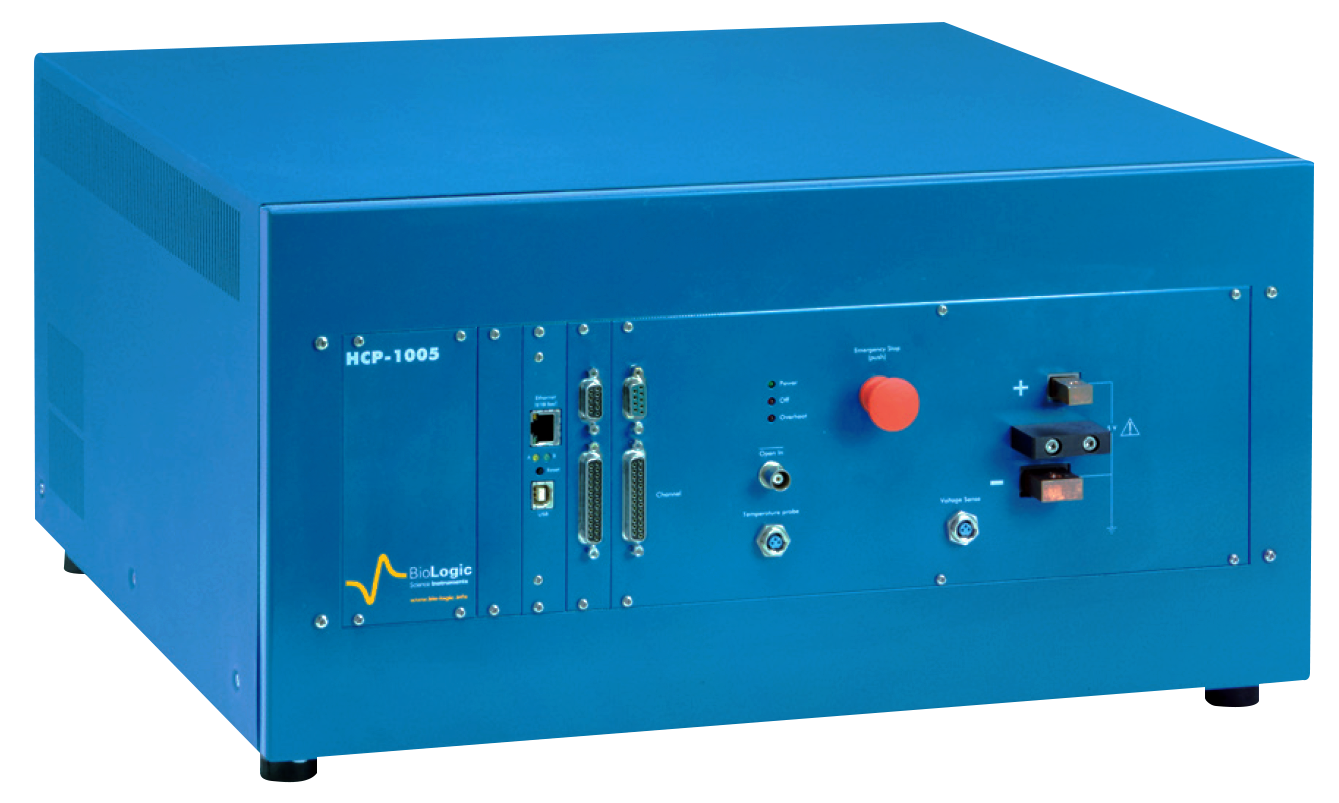

HCP-1005
More power for battery testing
Maker
BioLogic (France)
Features
• 연료전지 실험에 적합한 고전류 Potentiostat
• Potential noise : 0.15 mV (RMS type)
• Current noise : 5 mA (RMS type)
• Rise/fall time :
[Potentio] 1.7 ms (no load), [Galvano] 4 ms (load = 20 mΩ, 50 cm cable)
Applications
• Fuel Cell (PEMFC, DMFC, SOFC 등)
General Specifications
| Slots available | 1 |
| Electrodes connections | 2,3,4,5 |
| Compliance | 6 V |
| Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
| Software | EC-Lab EC-Lab developper package |
| Add-ons compatibility | Integrated booster |
| Dimension (W x D x H) | 495 x 465 x 262 mm |
| Weight | 25kg |
| Power requirement | 1000W |
| Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel Specifications : Control
| Voltage control and measurement | |
| Ranges | 0.6 - 5 V adjustable range |
| Accuracy | < 0.1 % FSR* |
| Current control and measurement | |
| Ranges | ± 100 A |
| Accuracy | < 0.5 % FSR* (< 1 A) |
| EIS | |
| EIS capability | 10 kHz to 10 µHz |
| EIS quality indicators | Yes (with "e" type channel board) |
* FSR : Full Scale Range
Advanced
| Floating options | CE to ground |
| Filters | Software |
| Input / output | 1x external input (TTL level), Temperature probe PT100 (0 to 250 °C), 1x Open IN (0 - 5 V TTL level active low), Overheat shutdown at 70 °C |
| Stability control mode | 4 bandwidths |
FEATURES
• 연료전지 실험에 적합한 고전류 Potentiostat
• Potential noise : 0.15 mV (RMS type)
• Current noise : 5 mA (RMS type)
• Rise/fall time : [Potentio] 1.7 ms (no load), [Galvano] 4 ms (load = 20 mΩ, 50 cm cable)
APPLICATIONS
• Fuel Cell (PEMFC, DMFC, SOFC 등)
SPECIFICATIONS
| General | |
| Slots available | 1 |
| Electrodes connections | 2,3,4,5 |
| Compliance | 6 V |
| Acquisition time | 20 µs with EC-Lab developer package, 200 µs with EC-Lab |
| Software | EC-Lab, EC-Lab developper package |
| Add-ons compatibility | Integrated booster |
| Dimension (W x D x H) | 495 x 465 x 262 mm |
| Weight | 25kg |
| Power requirement | 1000W |
| Interfaces | Ethernet (Direct, LAN, Wifi), USB 2.0 |
Channel specifications | ||
| Control | Measurement | |
| Voltage control and measurement | ||
| Ranges | 0.6 - 5 V adjustable range | |
| Accuracy | < 0.1 % FSR* | |
| Current control and measurement | ||
| Ranges | ± 100 A | |
| Accuracy | < 0.5 % FSR* (< 1 A) | |
| EIS | ||
| EIS capability | 10 kHz to 10 µHz | |
| EIS quality indicators | Yes (with "e" type channel board) | |
* FSR : Full Scale Range
| Advanced | |
| Electrode connections | CE to ground |
| Filters | Software |
| Input / Output | 1x external input (TTL level), Temperature probe PT100 (0 to 250 °C), 1x Open IN (0 - 5V TTL level active low), Overheat shutdown at 70 °C |
| Stability control mode | 4 bandwidths |
