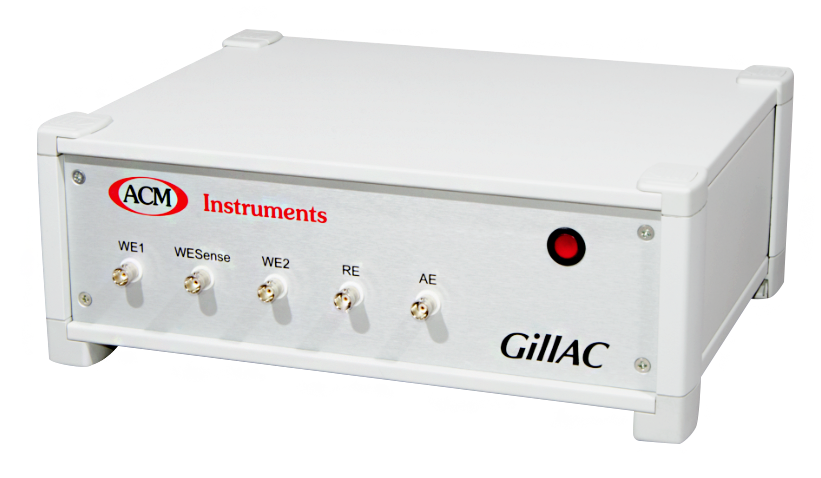

Gill AC
Potentiostat, Galvanostat and Zero Resistance Ammeter with integrated Frequency Response Analyser and Sweep Generator in one
Maker:
ACM (U.K.)
FEATURES
TECHNICAL SPECIFICATIONS
| Hardware | |
| Case Dimensions | 34 * 26 * 13 cm |
| Power Supply | 110 / 230 VAC 50-60 Hz |
| Weight | 3.8 kg |
| Electrode Cable Length | 1.2 meters (can be increased) |
| Noise & Ripple | Less than 3 µV |
| Potentiostat | |
| Compliance Voltage | ± 15 V (can be increased) |
| Sweep Range | ± 3 V (can be increased) |
| Sweep Resolution | 25 µV |
| Current Output | ± 600 mA |
| RE Input Impedance(Ohms) | Greater than 1012 |
| Frequency Response | 100 kHz (1 to 100K Ohm load) |
| Measurement Accuracy | 21 Bit A/D (full mains rejection) |
| Measurement Resolution | 1 µV ± 0.0015% non-linearity |
| Potentiodynamic Sweep Rate | 200 mV / Second |
| Zero Resistance Ammeter | |
| Current Range | 10 pA to 600 mA |
| Counter Resistors | 1, 10, 100, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ |
| Input Offset Voltage | Less than 10 mV |
| Galvanostat | |
| Current Output | ±10 pA to 600 mA |
| Potential Resolution | 1 µV ± 0.0015% non-linearity |
| Frequency Response Analyser | |
| Frequency Range | 10 µHz to 100 kH |
| Amplitude | 1 to 232 mV |
| Impedance Error | < 2% for 1 to 100 kΩ loads |
| Theta Error | < 1° for 1 to 100 kΩ loads |
| Averaging | Configurable adaptive averaging |
| Sample Rate | 1 MHz (true continuous sample rate) |
| ADC | 12 bit |
| DAC | |
| Operational Temperature | -5 °C to 72 °C |
| Calibrated Temperature | 25 °C |
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
