FEATURES

• 전압/전류 정밀도가 0.01% 로, 다음과 같은 실험을 위한 정밀한 데이터를 제공

               - Lifespan prediction, inventory efficiency, self-discharge, micro-reaction

• 다양한 셀 타입, capacitor  재료, half-cell,, 3전극, 코인 셀의 테스트를 지원

• 3중 보호(소프트웨어, 하드웨어, 펌웨어)로 장비와 샘플의 안전한 작동을 보장

• Multi-scan rate cyclic voltammetry(ERT Series available), linear sweep voltammetry(ERT Series available), GITT, PITT, CA, CP 같은 다양한 테크닉

• 온라인 calibration 및 간섭 없이 채널의 독립적인 작동

• 온도 제어, 표면 온도 모니터링, 3전극 설정 및 압력 감지를 위한 auxiliary 채널

             integration 이 가능

APPLICATIONS

• dQ/dV Analysis
• Accurate DCIR

• Electrochemical Workstation

• Accurate gram capacity

• Accurate Coulombic Efficiency
• Charge/Discharge Testing

• Comparison of impedance of

• Cell Cycle Impedance Analysis

TECHNICAL SPECIFICATIONS

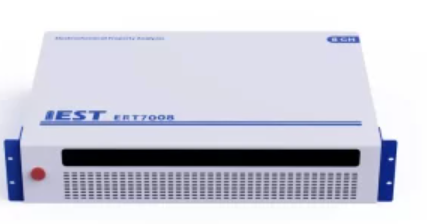

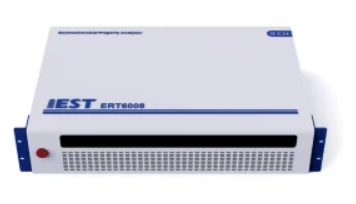

	ERT6008 (Cyclic Voltammetry Analyzer)		ERT7008 (Electrochemical Impedance Analyzer)
Type	ERT6008-5V6A	ERT6008-5V12A	ERT7008-5V100mA	ERT7008-5V6A	ERT7008-5V12A
Voltage	0-5V		0-5V	±5V
Current	0.6μA~6mA 6mA~60mA 60mA~600mA 600mA~6A	1.2μA~12mA 12mA~120mA 120mA~1.2A 1.2A~12A	10nA~1mA 1mA~10mA 10mA~100mA	0.6μA~6mA 6mA~60mA 60mA ~600mA 600mA~6A	1.2μA~12mA 12mA~120mA 120mA~1.2 A 1.2A~12A
EIS testing	×		EIS (Electrochemical Impedance Spectroscopy) testing：0.01Hz~100kHz
Electrochemical features	Cyclic Voltammetry (CV), Linear Sweep Voltammetry (LSV), GITT/PITT/CA/CP Testing
Temp. Chamber	-20~80℃
Channel	8
Output	Four-Electrode Aviation Connector (Supports three-electrode testing with auxiliary voltage integration)
V&I Accuracy	± 0.01% F.S.
CP&CR Accuracy	± 0.02% F.S.
Resolution	16bit
Input Power	500W/1000W		30W	500W/1000W
Operating Modes	Charge-Disc harge Modes: Constant Current Charge/Discharge (CC) Constant Voltage Charge/Discharge (CV) Constant Current-Constant Voltage Charge/Discharge (CC-CV) Constant Power Charge/Discharge (CP) Constant Resistance Charge/Discharge (CR) DCIR (Direct Current Internal Resistance) Rate Charge/Discharge Electrochemical Modes: GITT (Galvanostatic Intermittent Titration Technique) PITT (Potentiostatic Intermittent Titration Technique) CA (Chronoamperometry) CP (Chronopotentiometry
