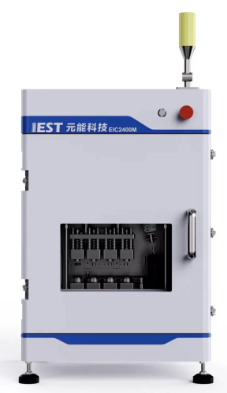

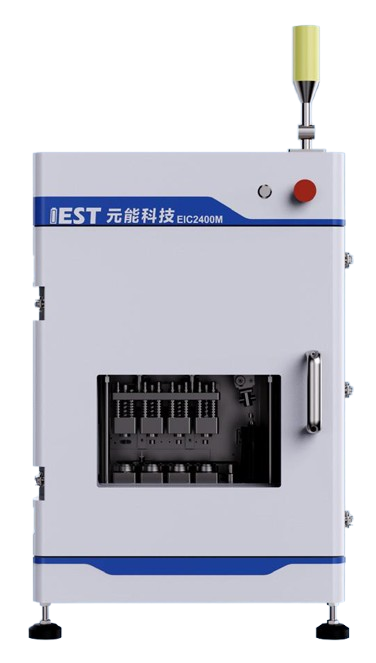

EIC Series
Electrode Tortuosity & Separator Ion Conductivity Tester
Maker:
IEST (CHINA)
FEATURES
- 대칭 전극을 사용한 배터리의 EIS 테스트로 전극의 굴곡도(tortuosity) 계산
간단한 조립, 자동화된 테스트 및 분석, 간소화된 프로세스로 테스트 효율성 향상
4채널 동기화 테스트 지원
APPLICATIONS
- Electrode tortuosity test
- Separator ion conductivity test
TECHNICAL SPECIFICATIONS
Model | EIC1400K | EIC1400M | EIC2400K | EIC2400M |
Channels number | 4 | |||
Auxiliary equipment | Glove box | No additional auxiliary equipment required | ||
EIS test range | 1500 - 0.1 Hz | 100k - 0.01 Hz | 1500 - 0.1 Hz | 100k - 0.01 Hz |
Pressure range | 10 - 50kg | |||
Applicable samples | Anode & Cathode electrodes | Anode & Cathode electrodes, separator | Anode & Cathode electrodes | Anode & Cathode electrodes, separator |
Mold Size | Φ60*61mm (W×H) | Φ45*20mm (W×H) | ||
Test parameters | Ionic conductivity, MacMullin number | Air pressure, dew point, ionic conductivity, MacMullin number, etc. | ||

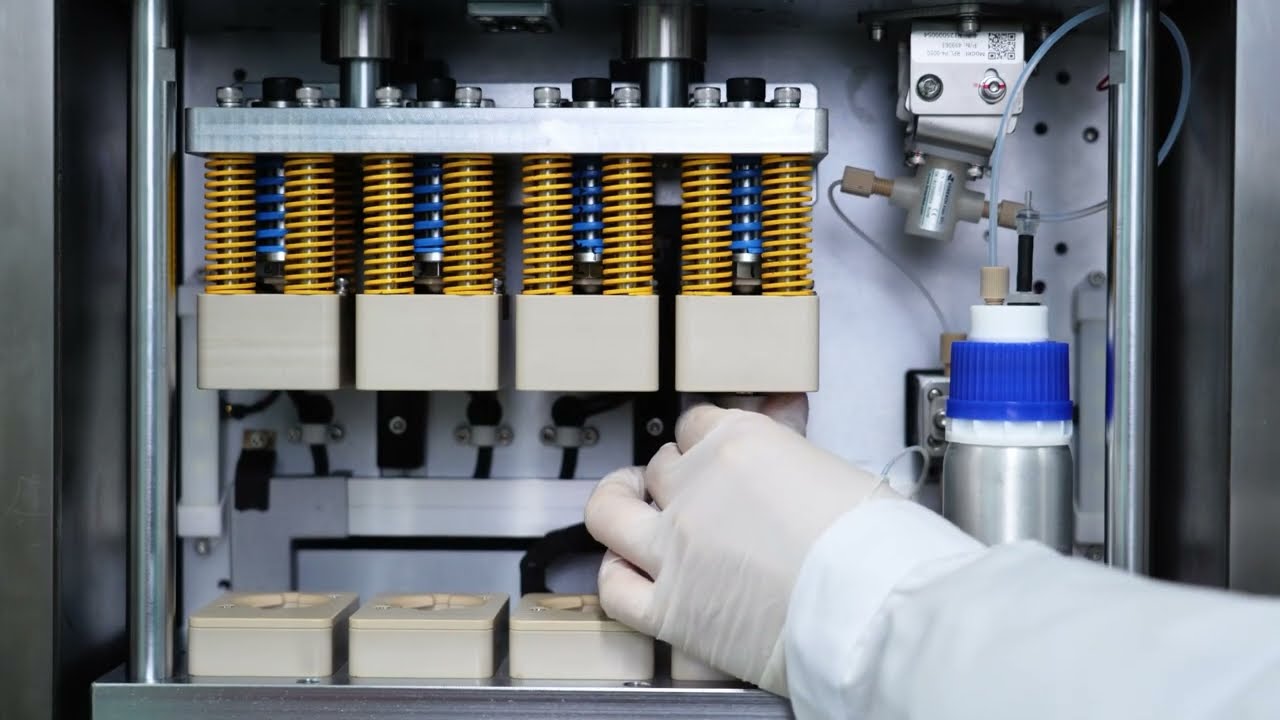

Features | - Testing of separator ionic conductivity and electrode MacMullin number under different pressures - The software interface displays test curves and allows for fitting of EIS curves to obtain parameters | - Automatic ventilation to ensure a high-purity argon gas environment inside the chamber - Automatic liquid injection - Assemble multi-channel symmetric batteries rapidly and test EIS | ||
