ECSTATSYN-8000

Sections	Specifications
Measurement technique	Constant Current/Constant Current Pulse (Minimum 5ms Control) Constant voltage/constant voltage pulse (minimum 5ms control) Cyclic voltammetry Differential Pulse Voltammetry
Maximum Output/Control Voltage	±10V
Control voltage/potential resolution	1mV
Measured voltage/potential resolution	±200mA
Current range	± 200 mA (1 μA resolution) ± 200 μA (1 nA resolution)
Stirrer speed	50~1000rpm *10rpm increments
power	24 VDC AC adapter
Outer Dimensions/Weight	W150×D250×H180mm/Approx. 2.2kg

Product Name	PFC	Glassycarbon	RVC	RVC electrode current collector plate	Titanium/ Gold plated	Titanium/ Platinum Plating	Titanium	Stainless
Number of sheets	4	1	8	1	1	1	8	8
Cat. No.	27003	27004	27005	27006	27007	27008	27009	27010

Material	Plastic Formed Carbon (PFC)	(GC) glassy carbon	Reticulated glasscarbon (RVC)	(SUS316) stainless steel	(Ti/Pt base/ Au plating) Titanium/ Platinum base/ Gold plating	(Ti/Pt plating) titanium/ platinum plating	(Ti) Titanium	(SUS316) Stainless steel
size	8×52.5×2mm	8×52.5×2mm	6×36×5mm	-	8×52.5×2mm	8×52.5×2mm	8×52.5×2mm	8×52.5×2mm

Product Name	Silver	Copper	Nickel	Aluminium	Ag/Ag+ reference electrode	Disc Acting Electrode GC-5238	Disc Acting Electrode PT-5238
Number of sheets	4	8	8	8	1	1	1
Cat. No.	27011	27012	27013	27014	27015	27016	27017

Material	(Ag) Silver	(Cu) Copper	(Ni) Nickel	(Al) Aluminum	Pyrex Glass, Porous Glass, FEP Heat Shrink Tubing, Silver Wire, SUS316, PPS, Perflo O-Ring	Electrode Material: GC Others : PEEK, Brass, SUS316	Electrode Material: Pt Others : PEEK, Brass, SUS316
size	8×52.5×2mm	8×52.5×2mm	8×52.5×2mm	8×52.5×2mm		Electrode diameter: φ2	Electrode diameter: φ2

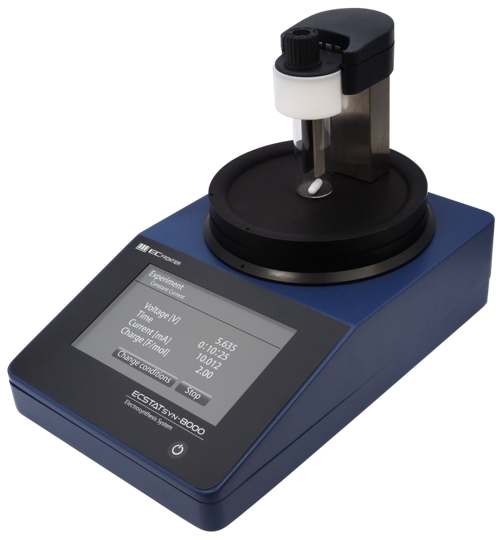

Product name	ECSTATsyn-8000 Batch Electrolytic Synthesizer
Cat. No.	27001

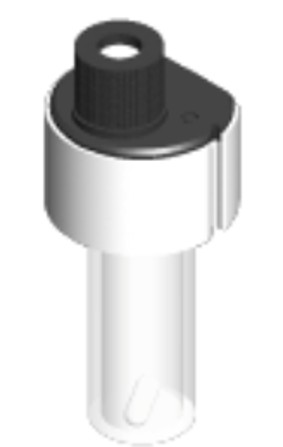

Composition	Device body / Attachment (1ch) / Electrolytic synthesis cell
accessory	AC adapter / alligator cable / USB cable / lead resistance / USB memory (instruction manual) / Test report
