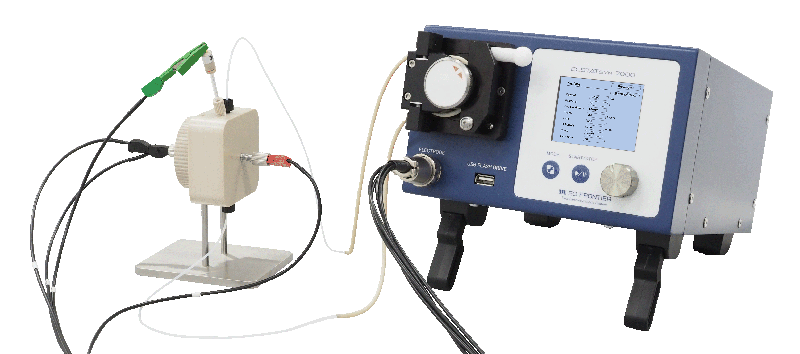

ECSTATSYN-7000

FEATURES

Flow Type	Specifications
Constant potential & voltage Single Flow	Applied voltage [V], flow velocity [mL/h], polarity reversal, end conditions (sample volume [mL], continuous)
Constant current Single Flow	Energizing current [A], substrate concentration [mM], energization [F/mol], flow velocity [mL/h], polarity reversal, exit conditions (sample volume [mL], continuous), Applied voltage [V], flow velocity [mL/h], polarity reversal, end conditions (sample volume [mL], continuous)
Constant potential & voltage Circular Flow	Applied voltage [V], sample volume [mL], substrate concentration [mM], energization amount [F/mol], flow velocity [mL/h], polarity reversal, termination conditions (charge amount [C], continuous)
Constant Current Circular Flow	Energizing current [A], sample volume [mL], substrate concentration [mM], energization [F/mol], flow velocity [mL/h], polarity reversal, termination conditions (charge amount [C], continuous)

* 다양한 매개변수를 설정하고 시작버튼을 누르면 자동으로 액체공급과 전기분해가 시작됩니다.

Sections	Specifications
Measurement technique	Constant potential/constant voltage/constant current
electrode	Anode / Cathode /reference electrode: 3-electrode system
Maximum output voltage	±20V
Maximum output current	±1A
Control voltage resolution	1mV
Control Current Resolution	50μA
pump	Roller Pump
Flow rate	0.6~600 mL/h *Flow velocity is adjusted by tube inner diameter
tube	Farmed BPT
power	DC24V 2.5A AC adapter
Usage environment	(Temperature) 10~40 °C (Humidity) 30~80%RH *No condensation
External I/O Relay Outputs	Photorelay 2-point DC30 V_0.1A for device synchronization and alarm
Digital Inputs	1 point ON voltage: 5-24V OFF voltage: 0.8V or less For device synchronization / isolated power supply + / isolated power supply -
Communication Data Retrieval	USB memory (real-time saving when the USB memory is inserted into the main unit)
Configuration data retrieval	communication
Display/Manipulation	2.8" (240×320) / Button (MODE, Start/Stop), Knob
Dimensions/Weight	W195×D265×H120 mm/Approx. 3.5kg
