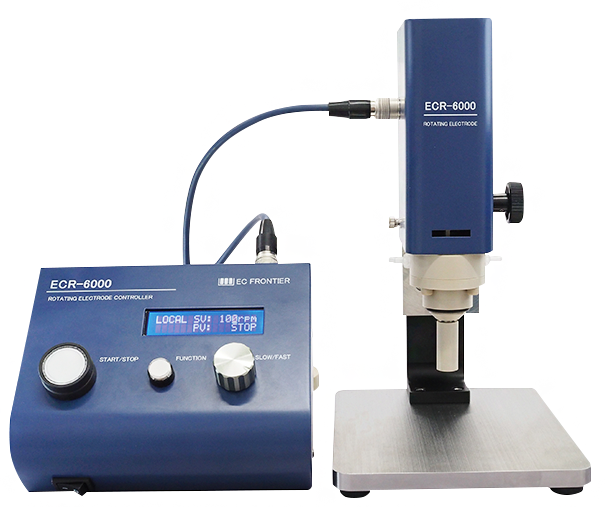

ECR-6000
저속~고속회전이 가능한 콤팩트형 회전 전극 장치
Maker
EC-Frontier (Japan)
Features
• A4용지 정도의 설치 면적 및, 경량화된 무게로 이동/설치가 용이하여 실험의 폭이 넓어짐

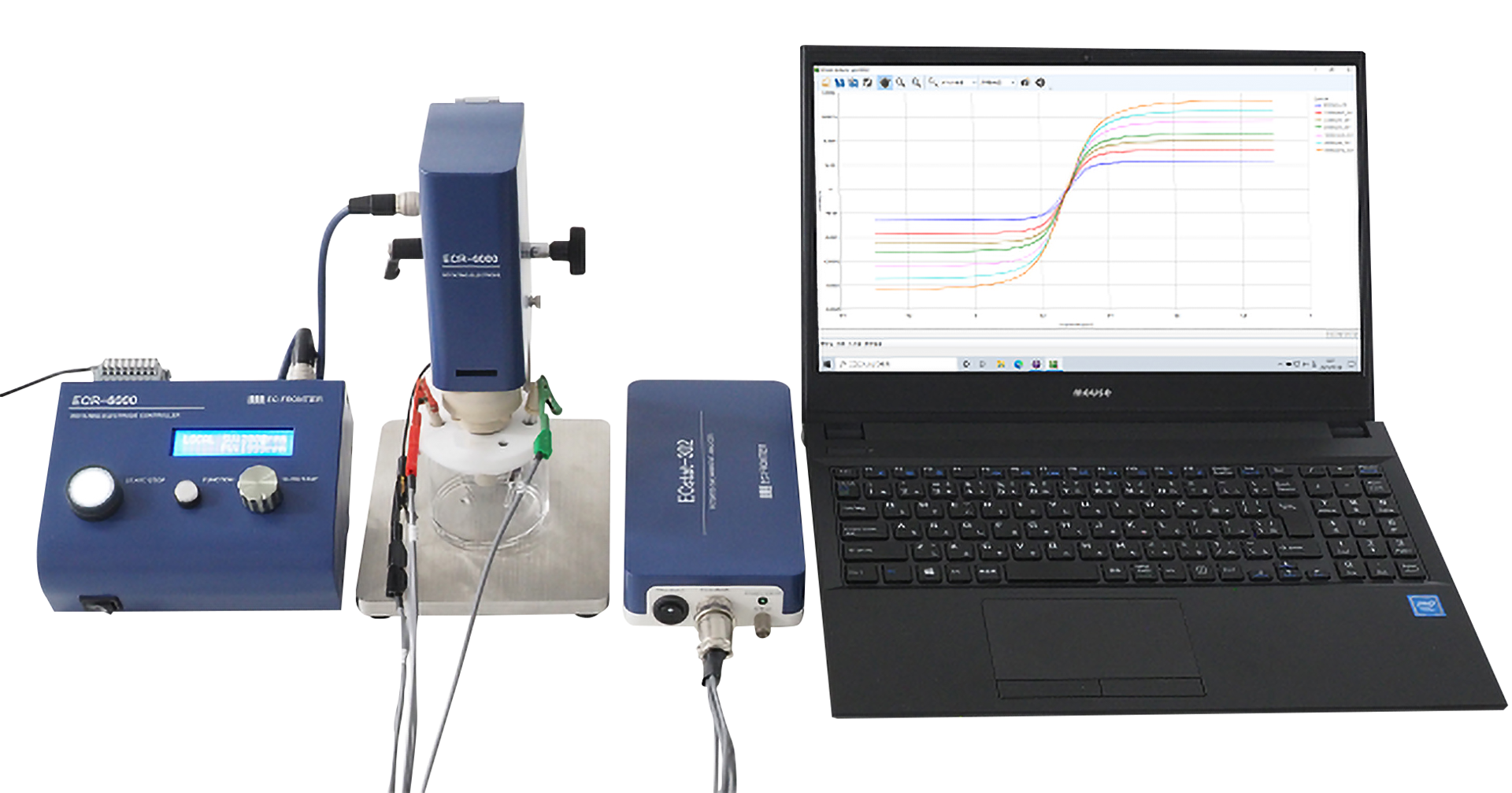

• 동봉된 소프트웨어와 연동하여 EC-Frontier 사의 Potentiostat(Ec-stat 시리즈)과 동기화 제어 및 USB를 통한 원격 제어 가능
• Shaft를 통해 불활성 가스를 직접 주입 가능하여, 가스 주입으로 인한 베어링 및 모터 손상 방지
• 실험 용도에 따라 다양한 크기와 사양을 고려하여 전용 셀 선택 가능
• Tip 소재: Au, Pt, GC
Applications
• Electrocatalysis
• Fuel cells
• Electrolyzers
• Photoelectrochemistry
• Battery materials
• Corrosion
• Coatings
• Sensors
• Electrodeposition
• Bioelectrochemistry
• Molecular electrochemistry
• Pharmacology
• Analytical electrochemistry
Rotation controller
Specifications
| Rotational range | 80 - 8,000 rpm |
| Accuracy | 80 to 200 rpm (±2 rpm of reading) 200 to 8,000 rpm (±1% of reading) |
| RPM resolution | 1 rpm |
| Motor | Brushless motor |
| Setting operation and control method | Manual control / remote control by PC |
| External rotation control input | 1 rpm/mV, 2 rpm/mV, 4 rpm/mV (can be changed by control unit) |
| External rotation control output | 2 rpm/mV |
| Power supply | DC 24V 2.5A AC adapter included |
| Operating temperature limit | 10 to 40 °C |
| Operating humidity range | 30 to 80% RH (no condensation) |
| Size(mm) | 제어부: 160(W)x120(D)x70(H) 회전부: 140(W)x175(D)x230(H) |
| Weight(kg) | 제어부: 약 0.9 회전부: 약 3.6 |
Cells
| Description | Cat. No. |
| VR100-S : Simple RDE/RRDE cell kit (100 ml) | 17001 |
| VR100A-S : Simple RDE/RRDE Double-jacket cell kit (100 ml) | 17017 |
| VR200-S : Micro volume RDE/RRDE cell kit (20 ml) | 17006 |
| VR300-S : Alkaline-resistant RDE/RRDE cell kit (20 ml) | 17012 |
| VR400-S : General purpose RDE/RRDE Cell kit (Luggin capillary type) (100 ml) | 17019 |
| VR500-S : Light irradiation RDE/RRDE Quartz Cell kit (100 ml) | 17027 |
Tips
RRDE
| Description | Disk Φ | Cat. No. |
| Glassy carbon ring / Glassy carbon disk electrode | 4mm | 01043 |
| Pt ring / Glassy carbon disk electrode | 01044 | |
| Glassy carbon disk electrode | 01045 |
* Ring ID: 5mm / Ring OD: 7mm
RDE
| Description | Disk Φ | Cat. No. |
| Glassy carbon disk electrode | 4mm | 01040 |
| Au disk electrode | 01041 | |
| Pt disk electrode | 01042 |
Rotating electrode sample holder
| Description | Cat. No. |
| R-SH5 : Sample holder for rotating electrode | 01048 |
| Vyton O-rings for R-SH5 (5 ea) | 04050 |
| Perfluoro O-rings for R-SH5 (3 ea) | 04051 |
FEATURES
• A4용지 정도의 설치 면적 및, 경량화된 무게로 이동/설치가 용이하여 실험의 폭이 넓어짐
• 동봉된 소프트웨어와 연동하여 EC-Frontier 사의 Potentiostat(Ec-stat 시리즈)과 동기화 제어 및
USB를 통한 원격 제어 가능
• Shaft를 통해 불활성 가스를 직접 주입 가능하여, 가스 주입으로 인한 베어링 및 모터 손상 방지
• 실험 용도에 따라 다양한 크기와 사양을 고려하여 전용 셀 선택 가능
• Tip 소재: Au, Pt, GC
APPLICATIONS
• Electrocatalysis
• Fuel cells
• Electrolyzers
• Photoelectrochemistry
• Battery materials
• Corrosion
• Coatings
• Sensors
• Electrodeposition
• Bioelectrochemistry
• Molecular electrochemistry
• Pharmacology
• Analytical electrochemistry
SPECIFICATIONS
| Rotational range / rpm | 80 - 8,000 |
| Accuracy / rpm | 80 to 200 (±2 rpm of reading) 200 to 8,000 (±1% of reading) |
| RPM resolution | 1 rpm |
Motor | Brushless motor |
Setting operation and control method | Manual control / remote control by PC |
External rotation control input | 1 rpm/mV, 2 rpm/mV, 4 rpm/mV (can be changed by control unit) |
External rotation control output | 2 rpm/mV |
Power supply | DC 24V 2.5A AC adapter included |
| Operating temperature limit / °C | 10 to 40 |
| Operating humidity range | 30 to 80% RH (no condensation) |
| Size (mm) | 제어부: 160(W)x120(D)x70(H) 회전부: 140(W)x175(D)x230(H) |
| Weight (kg) | 제어부: 약 0.9 / 회전부: 약 3.6 |
Cells
| Description | Cat. No. |
| VR100-S : Simple RDE/RRDE cell kit (100 ml) | 17001 |
| VR100A-S : Simple RDE/RRDE Double-jacket cell kit (100 ml) | 17017 |
| VR200-S : Micro volume RDE/RRDE cell kit (20 ml) | 17006 |
| VR300-S : Alkaline-resistant RDE/RRDE cell kit (20 ml) | 17012 |
| VR400-S : General purpose RDE/RRDE Cell kit (Luggin capillary type) (100 ml) | 17019 |
| VR500-S : Light irradiation RDE/RRDE Quartz Cell kit (100 ml) | 17027 |
RDE/RRDE tips & Rotating electrode sample holder
| Description | Ring ID | Ring OD | Disk Φ | Cat. No. | |
| RRDE | Glassy carbon ring / Glassy carbon disk electrode | 5mm | 7mm | 4mm | 01043 |
| Pt ring / Glassy carbon disk electrode | 01044 | ||||
| Glassy carbon disk electrode | 01045 | ||||
| RDE | Glassy carbon disk electrode | - | - | 4mm | 01040 |
| Au disk electrode | 01041 | ||||
| Pt disk electrode | 01042 | ||||
| Description | Cat. No. |
| R-SH5 : Sample holder for rotating electrode | 01048 |
| Vyton O-rings for R-SH5 (5 ea) | 04050 |
| Perfluoro O-rings for R-SH5 (3 ea) | 04051 |
