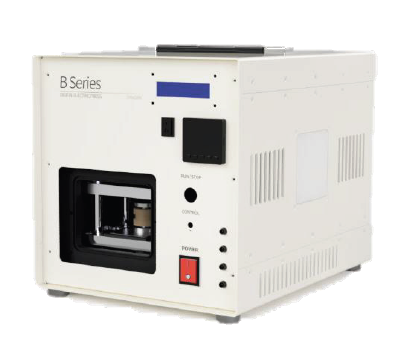

SSB Digital Press
• ์ ์ฉ Press cell๊ณผ ํจ๊ป ์ฌ์ฉ
• ํ๋ ์ค, ์จ๋ ๋ถ์๊ธฐ์ EIS ์ธก์ ์
๋์์ ํ ์ ์์
Specification
| Unit | TPU-040 | |
Max. pressure | N | 40,000 |
Min. force resolution | N | 10 |
Sample moving space | WxDxH (mm) | 70 X 50 X 80 |
SERVO actuator moving distance | mm | 30 |
Min. distance resolution | um | 1 |
Max. velocity | mm/MIN | 10 |
Operating temperature | หC | 45~80 |
Temperature resolution | หC | 0.1 |
| Dimensions | WxDxH (mm) | 270 X 350 X 280 |
| Weight | kg | 24 |

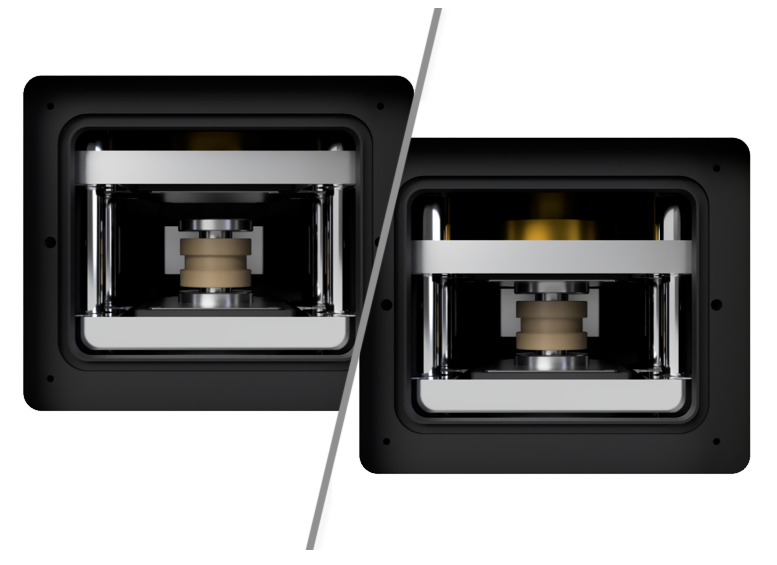

์ ์ฉ Press Jig
| Spec | TLP1109- SC |
O-ring Materials | Viton |
| Dimension | 48 x 28 ( ∅ x H mm) |
Electrode Diameter | 10∅ |

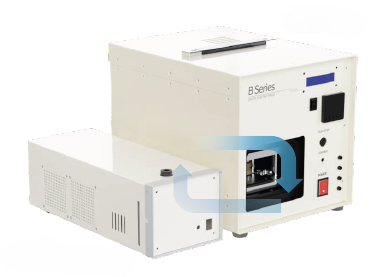

์์จ(25'C) ํ๊ฐ๋ฅผ ์ํ ์ ์ฉ ์ฟจ๋ง ๋ชจ๋
• ํ ํฐ์ด ์์์ ์๋์ ์ํฐ ํํ๋ฅผ ์ด์ฉํ์ฌ ์์จ ์ ์ง
• ๋ด๋ถ ํฌ์ ์ด์ฉํ์ฌ ์ํ์ํค๋ ๊ตฌ์กฐ
| Spec | TLP1109-WP |
O-ring Materials | Viton |
| Dimension (WxDxH) | 137 x 346 x 119 mm |
Power requirement | 110V/220V 50~60Hz 1A |
