 Corrosion Cells

  (BioLogic)

• 일반적인 부식 실험에 사용되는 cell kit


• 실험 용량, 온도 제어, 기준전극 위치, sample

 holder 선택


• Pitting corrosion test(ASTM G150)에 적합한 Avesta cell kit

※ 점부식(Pitting corrosion) 실험 시 발생할 수 있는  crevice corrosion을 방지할 수 있습니다.

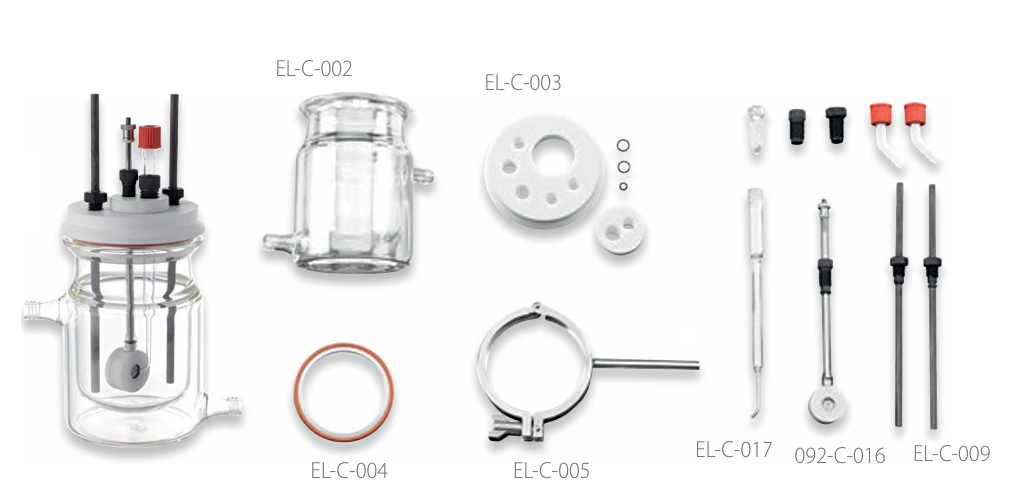

  Standard Corrosion Cells

Description
Basic corrosion cell kit
Complete corrosion cell kit
              Cat. No.
EL-CORR-1
EL-CORR-1DJ
Glass cell 1L
●
-
EL-C-001
Double-jacketed glass cell 1L
-
●
EL-C-002
PTFE Cap
●
●
EL-C-003
PTFE ring, silicon encapsulated, OD 102mm
●
●
EL-C-004
Cell collar with clamp
●
●
EL-C-005
Double purge tube
-
●
EL-C-006
Bridge tube for 6 mm diameter reference electrode, OD 10 mm
●
●
EL-C-008
Graphite counter electrode rod (2 ea), OD 6 mm
●
●
EL-C-009
Double nut 25 mm and 12 mm diameter
-
●
EL-C-011
Telescopic cell stand
-
●
EL-C-012
Purge tube
●
-
EL-C-016
Sample holder 1cm2 (max. sample thickness 3.4 mm, max. diameter 14.6 mm)
-
●
092-C-016
Options
PT100 probe (indicate connector type)
EL-C-014
Magnetic stirrer & heater, without PT100 probe
220V
EL-C-015A
110V
EL-C-015B
Bridge tube for 8 mm diameter reference electrode, OD 10 mm
EL-C-017
Aluminium base bolder for magnetic stirrer and 1L cell vial
EL-C-018
Set of 10 porous frits (4 mm ColarPor™) with PTFE heat shrink (200 mm)
092-VYC4

※ The reference electrode has to be purchased separately.

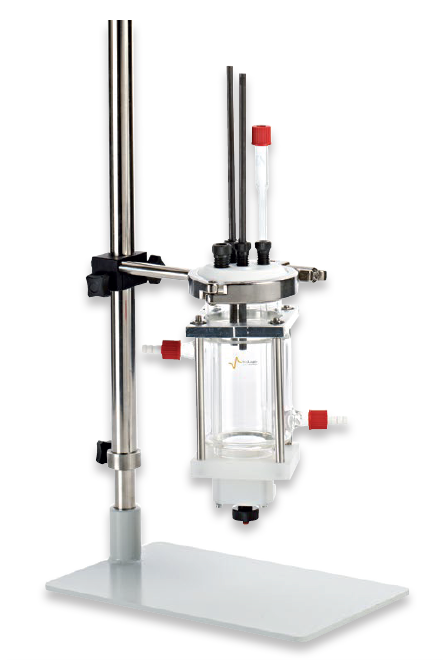

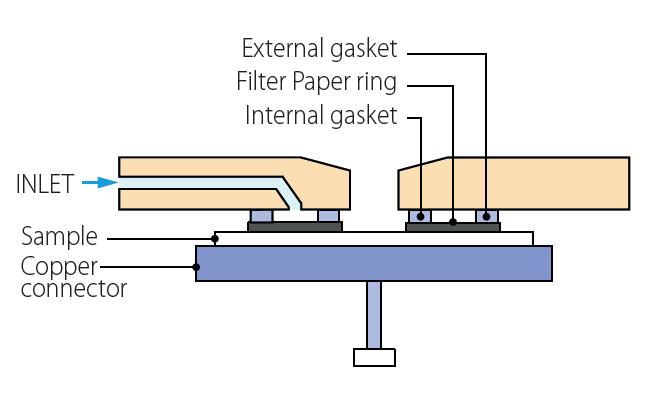

Avesta Cell


Description
Cat. No.
Avesta cell kit
EL-AVESTA
구성
Double-jacketed cell glass 250 ml
EL-AV-002
PTFE cap 5 holes
EL-AV-003
O-ring PTFE silicone encapsulated
EL-AV-004
Cell collar with clamp
EL-A-005
Double purge tube
EL-AV-006
Filter paper ring (100 pcs)
EL-AV-007
Graphite counter electrode rods (2 ea)
EL-C-009
Bridge tube for 6 mm reference electrode
EL-AV-010
Double nut
EL-C-011
Telescopic cell stand
EL-AV-012
Skeleton
EL-AV-015
Options
Peristaltic pump for low flow
EL-AV-008
Bridge tube for reference electrode with OD of 8 mm
EL-AV-013
Single purge tube
EL-AV-014
Temperature probe PT100
EL-C-014
Set of 10 porous frit (4 mm CoralPor™) with PTFE heat shrink (200mm)
092-VYC4

※ The reference electrode has to be purchased separately.

 Corrosion Cells

  (BioLogic)

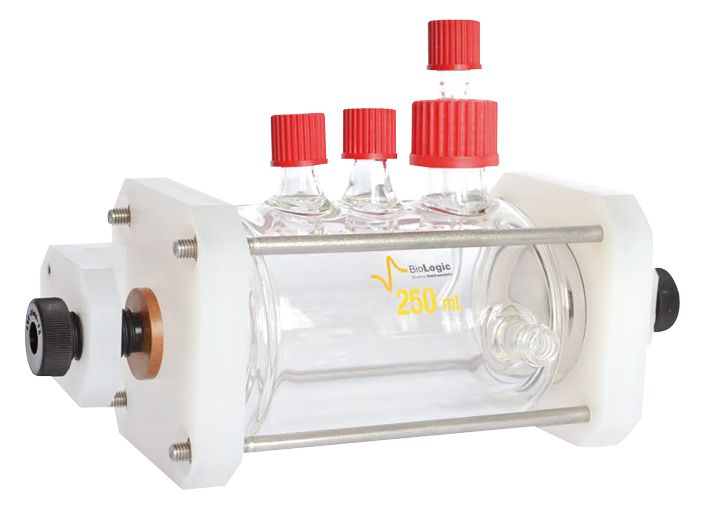

• 평평한 샘플의 부식 실험을 위한 셀


• 노출 면적: 1cm2, 10cm2


• 양 끝에 각각 다른 물질을 장착할 수 있음

 (Galvanic cell)


•  샘플 최소 직경: 30.5mm(EL-FLAT-1CM), 40.5mm(EL-FLAT-10CM)


•  샘플 최소 두께 : 6mm


•  PVDF Cell kit : 불산 (Hydrofluoric acid) 과 같은 강한 용액에서 사용

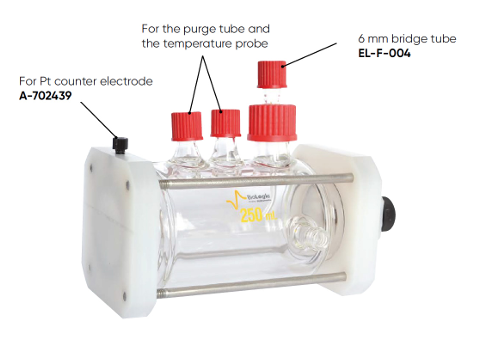

  Flat Cells


Description Glass kitsPVDF kits
Flat cell 1cm2Flat cell 10cm2Flat cell 1cm2Flat cell 10cm2
Cat. No.
EL-FLAT-1CMEL-FLAT-10CMEL-FLAT-1CMEL-FLAT-10CM
Platinum mesh counter electrode
(54 mm wire, 80 mesh, 25 x 35 mm)		A-702439
Bridge tube for 6 mm diameter reference electrodeEL-F-004-
Glass cell (250 ml) for flat cellEL-F-002EL-F-PVDF
Mechanical partsEL-FLAT-3HEL-FLAT-4HEL-FLAT-3H EL-FLAT-4H


 Options


Description
Cat. No.
Bridge tube for 8 mm diameter reference electrode
EL-F-004B
PVDF body (single-jacketed)
EL-F-PVDF
EPDM O-rings for 1cm2 with PEEK ferrule for CE
EL-SEAL-1B
EPDM O-rings for 10cm2 with PEEK ferrule for CE
EL-SEAL-10B
PTFE O-rings for 1cm2 with PEEK ferrule for CE
EL-SEAL-T1B
PTFE O-rings for 10cm2 with PEEK ferrule for CE
EL-SEAL-T10B
EPDM O-rings for 1cm2
EL-SEAL-1
EPDM O-rings for 10cm2
EL-SEAL-10B
PTFE O-rings for 1cm2
EL-SEAL-T1
PTFE O-rings for 10cm2
EL-SEAL-T10B
Set of 10 porous frits (4 mm ColarPor™) with PTFE heat shrink (200mm)
092-VYC4

※ The O-ring kits include 4 O-rings for the glassware side and 10 O-rings for the sample side.


      Galvanic Cell


Galvanic Cell kit 1cm2
EL-GAL-1CM
ContentsCat. No.
Flat Cell kit 1cm2EL-FLAT-1CM
Galvanic kit 1cm2092-FLAT/1





Galvanic Cell kit 10cm2
EL-GAL-10CM
ContentsCat. No.
Flat Cell kit 10cm2EL-FLAT-10CM
Galvanic kit 10cm2092-FLAT/10

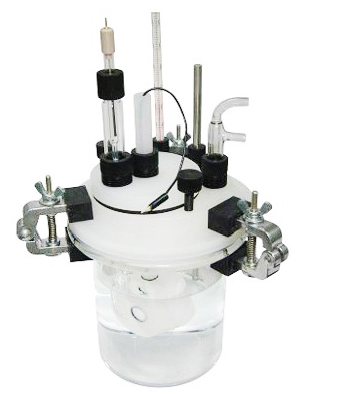

 Standard Corrosion

 Cell

 (EC-Frontier)

• 샘플 표면적 : 1cm2


• 직경 25mm, 두께 5mm 이내의 샘플 장착 가능


•  샘플이 장착된 홀더와 Reference electrode는     Counter electrode Gas pipe 등이 장착된 셀 뚜껑과 분리가 가능하여 샘플 교체 시 전체 Cap을 다시 분리할 필요가 없습니다.



Product
Cat. No.
Corrosion cell standard kit

VM1-S
    - Cell cap
    - Glass cell (500 mL, ID: 41.4 mm, H: 62.7 mm)
    - Sample holder (electrode hole size : 6 mm)
    - Luggin capillary
    - Counter electrode
    - Gas pipe
    - Thermometer
    - Clamp
O-ring set (Option)

 Corrosion Cells

  (AMEL)

• 다양한 부식 실험에서 사용할 수 있는 Corrosion Cell을 제공합니다

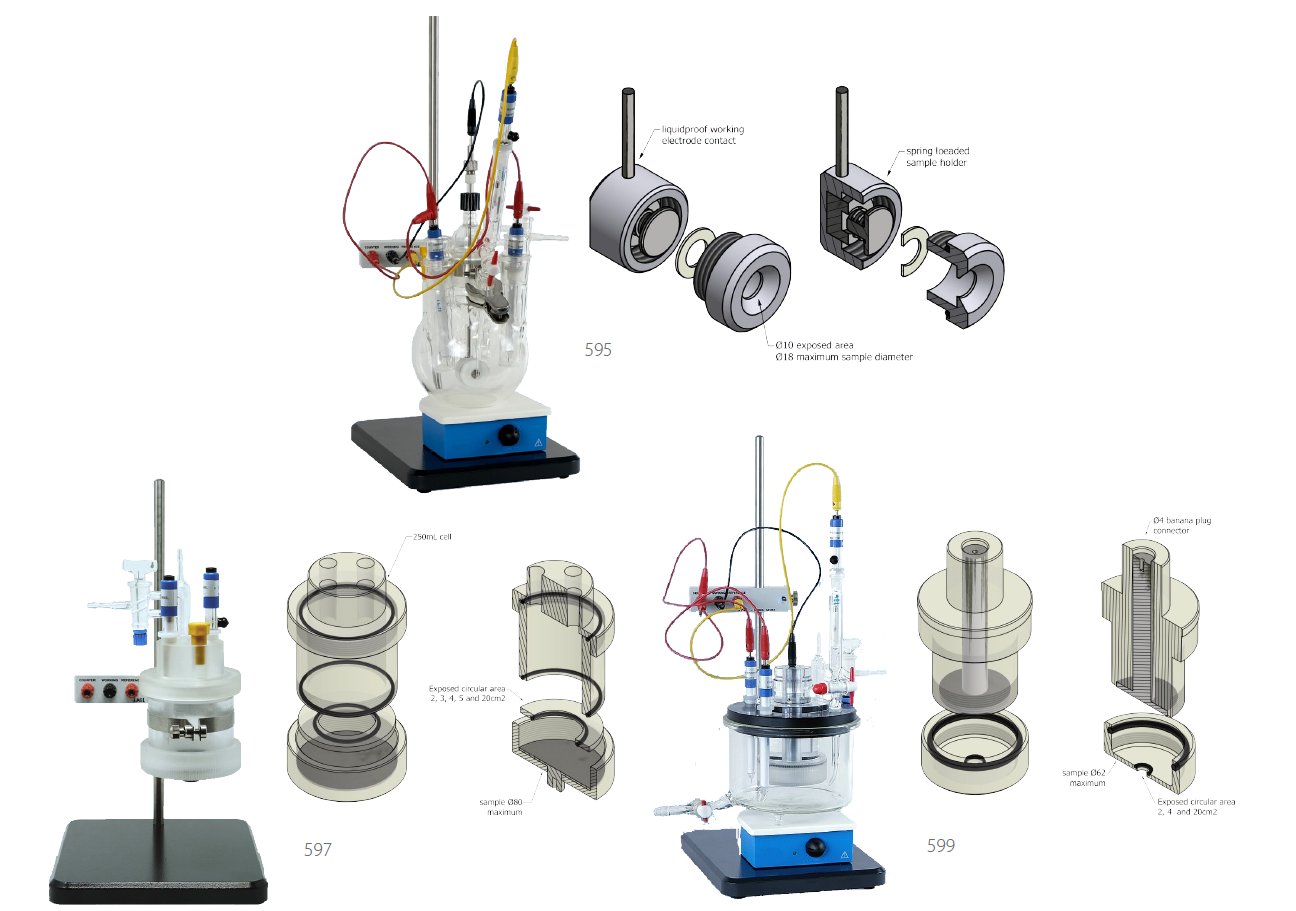

Corrosion Cell


Description
Cat. No.
ASTM Corrosion cell, max. sample dia. 18 mm, 1 L, Luggin capillary
595

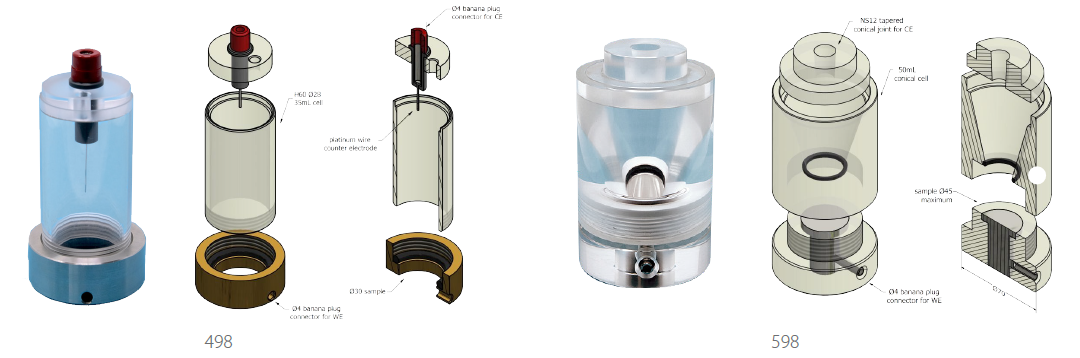

Flat Sample Cells


DescriptionExposed sample areaCat. No.
Compact flat sample cell for circular flat samples, 35 ml, max. sample dia. 30 mm6cm2498
Sturdy flat sample cell for circular flat samples, 2-electrode, 50 ml, max. sample dia. 45 mm6cm2598
Cylindrical flat sample cell, 250 ml2, 3, 4, 5, 20cm2597
volume flat sample cell for disk / flat samples, 500 ml2, 4, 20cm2599

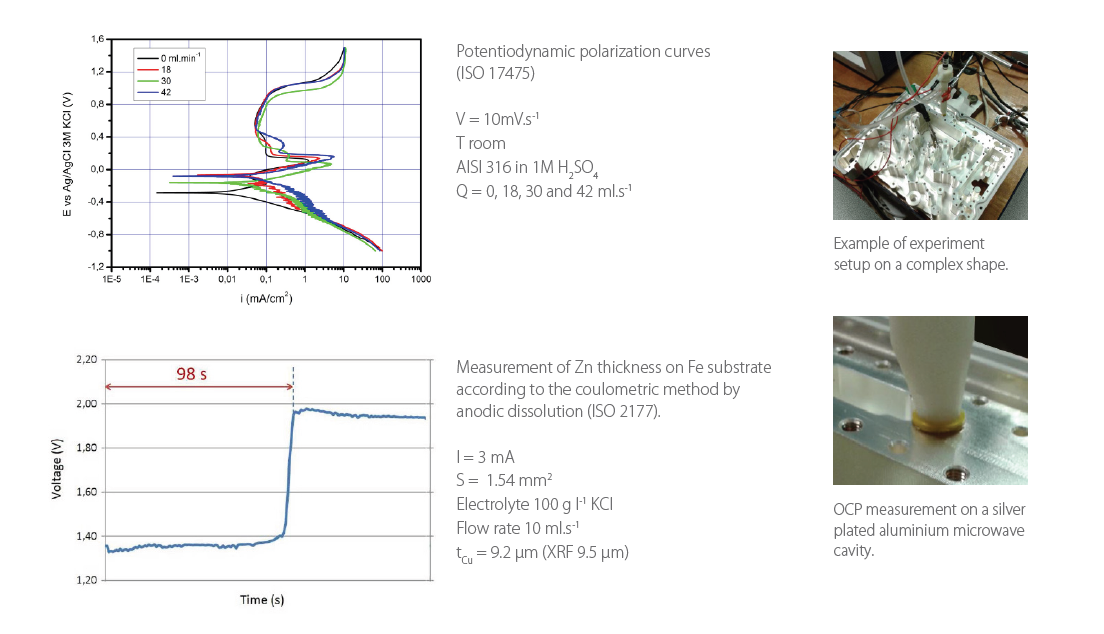

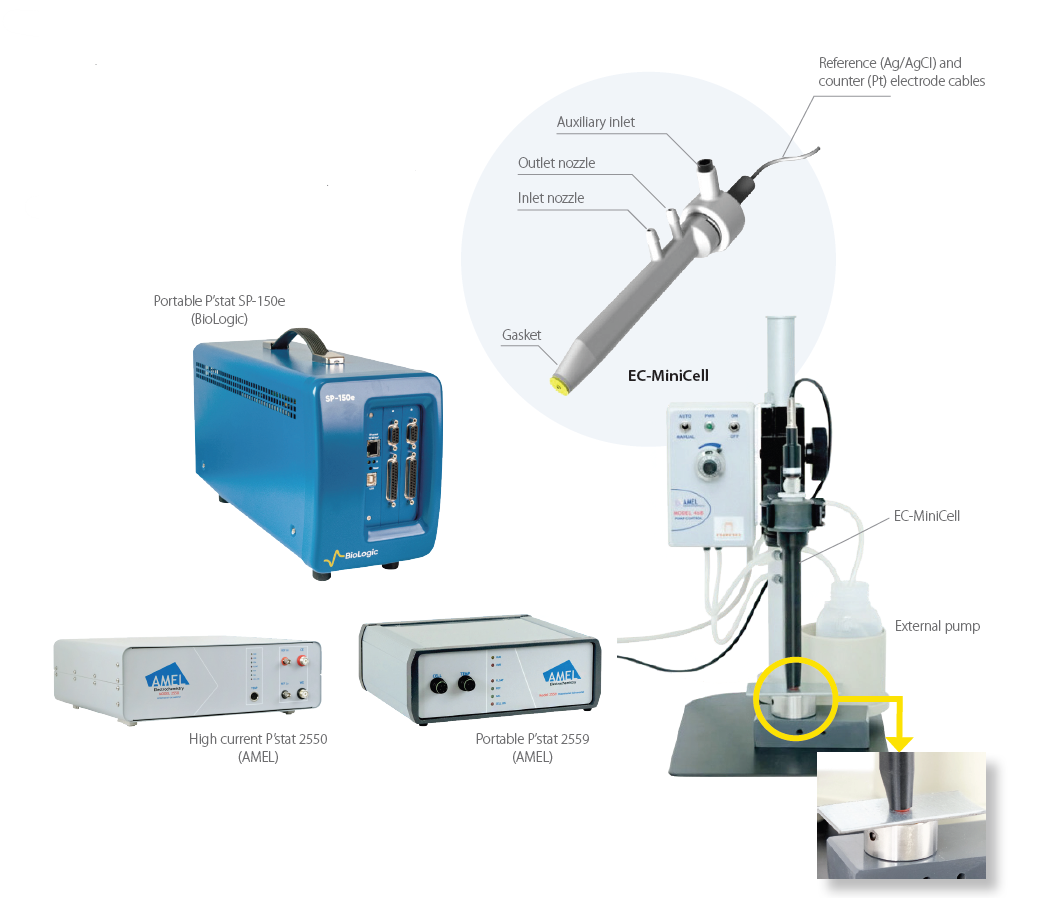

 Corrosion Cells

  (AMEL)

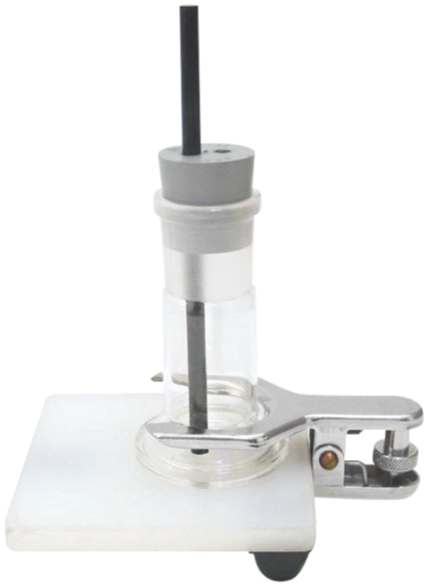

• 샘플 표면의 국소부위 부식측정을 위한 휴대용 셀


• 내부 노즐을 통해 Working electrode 주변으로   전해질 용액이 흐르는 디자인


•  샘플이 장착된 홀더와 Reference electrode는     Counter electrode Gas pipe 등이 장착된 셀 뚜껑과 분리가 가능하여 샘플 교체 시 전체 Cap을 다시 분리할 필요가 없습니다.
