CE-electrode

Material	Type	Wire diameter	Wire size	Surface area	Purpose	Cat.No

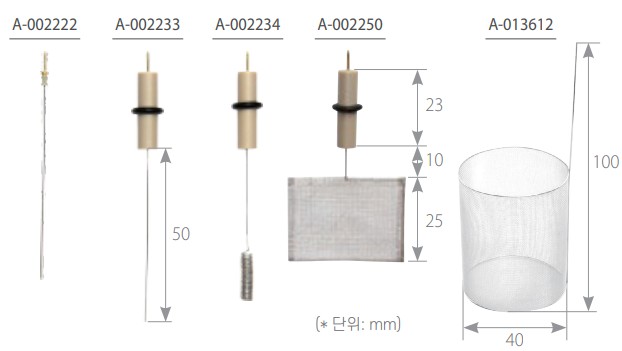

Platinum	Wire	0.5mm	57mm	~ 0.7 cm2	SVC-2, VC-4, plate material evaluating cell	A-002222
	Wire with PEEK	0.5mm	50mm	~ 0.7 cm2	SVC-3	A-002233
	Coil	0.5mm	230mm	~ 3.6 cm2	Bulk electrolysis, SVC-3	A-002234
	Gauze, 80mesh, with PEEK	0.08mm	25x35mm wire 51mm	~ 22.9 cm2		A-002250
	Gauze, 80mesh wire 51mm	0.08mm	25x35mm	~ 22.9 cm2	Flat cell	A-702439
	Gauze, 80mesh	0.12mm	Φ40mm, height 50mm	~ 47.4 cm2	Bulk electrolysis	A-013612
Gold	Gauze, 100mesh, with PEEK	0.07mm	25 x 35 mm	~ 29 cm2		A-002251
Gold	Wire	0.5mm	230mm	~ 3.6 cm2	Bulk electrolysis, SVC-3	A-012638
Nickel	Wire	0.5mm	230mm	~ 3.6 cm2	Bulk electrolysis, SVC-3	A-012639

Desciption	Type	Wire diameter	Wire length	Electrode diameter	Electrode length	Surface area	Cat.No

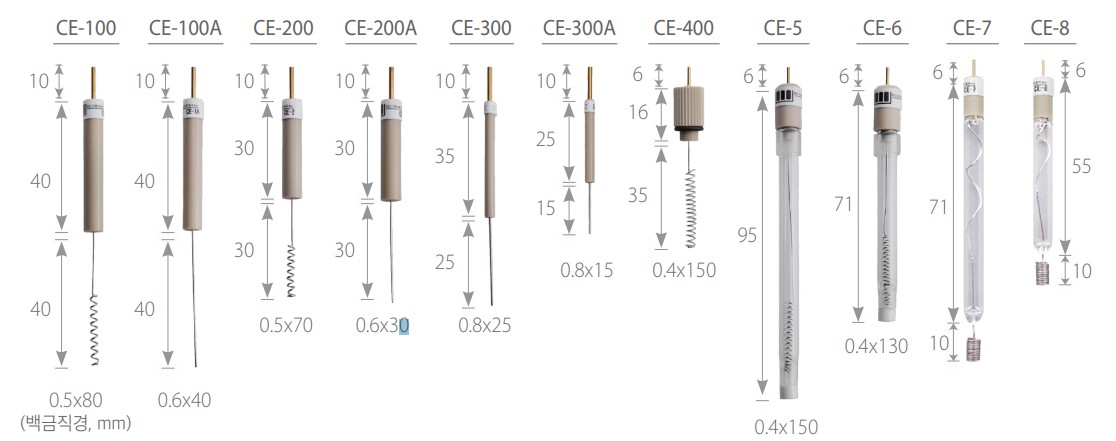

Pt Counter electrode	Coil	0.5mm	160mm	6mm	80mm	2.51cm2	CE-100
	Wire	0.6mm	40mm	6mm	80mm	0.75cm2	CE-100A
	Coil	0.5mm	150mm	6mm	60mm	2.35cm2	CE-200
	Wire	0.6mm	30mm	6mm	60mm	0.56cm2	CE-200A
	Wire	0.6mm	25mm	3mm	60mm	0.47cm2	CE-300
	Wire	0.6mm	15mm	3mm	40mm	0.28cm2	CE-300A
	Coil	0.4mm	200mm	4mm	51mm	2.51cm2	CE-400
Pt Counter electrode with glass tube	Coil	0.4mm	150mm	6mm	95mm	1.88cm2	CE-5
Pt Counter electrode with glass tube	Coil	0.4mm	130mm	6mm	71mm	1.63cm2	CE-6

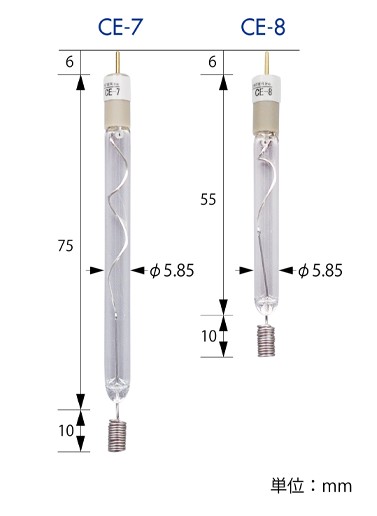

Pt-sealed glass counter electrode	Coil	0.5mm	130mm	6mm	85mm	2.04cm2	CE-7
Pt-sealed glass counter electrode	Coil	0.5mm	130mm	6mm	65mm	2.04cm2	CE-8

Desciption	Cat.No

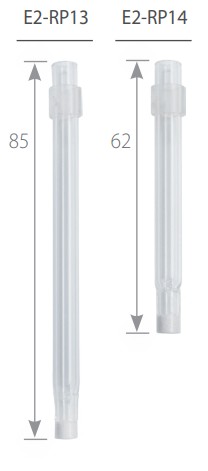

Φ 6 Glass tube with G4 glass filter for CE-5 (2ea)	E2-RP13
Φ 6 Glass tube with G4 glass filter for CE-6 (2ea)	E2-RP14

Description	OD	ID	Length	Cat.No
Glass-encapsulated Platinum disc electrode	5.85mm	3mm	91mm	PT-6385G
Glass-encapsulated Platinum disc electrode	5.85mm	3mm	66mm	PT-6360G
