Battery Test Cells

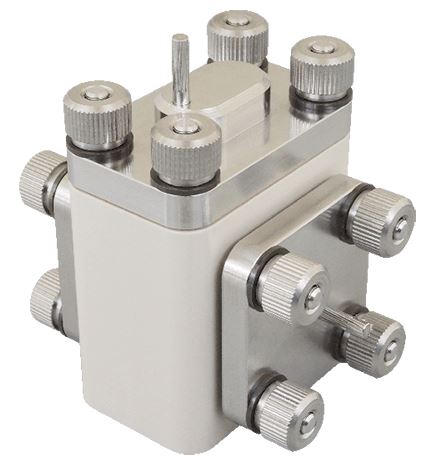

· Batch 형 셀

▶ 셀 상단에 직경 6mm 규격의 Reference electrode 삽입 가능

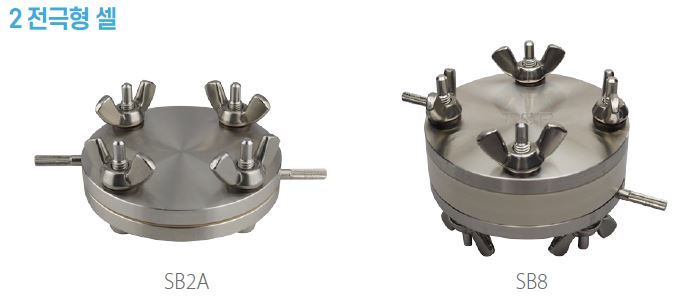

· 2전극형 셀

▶ PPS insulation 장착형 / 미장착형

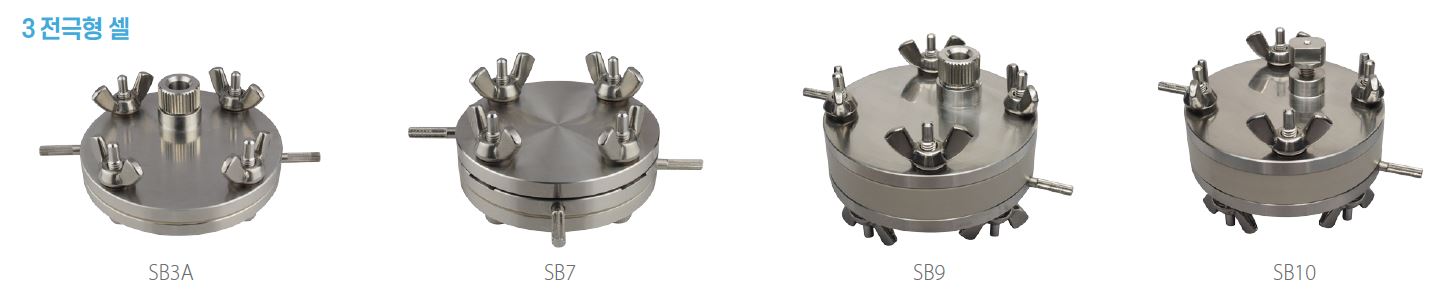

· 3전극형 셀

▶ Reference electrode 삽입형(일반: SB9, wire RE: SB10)

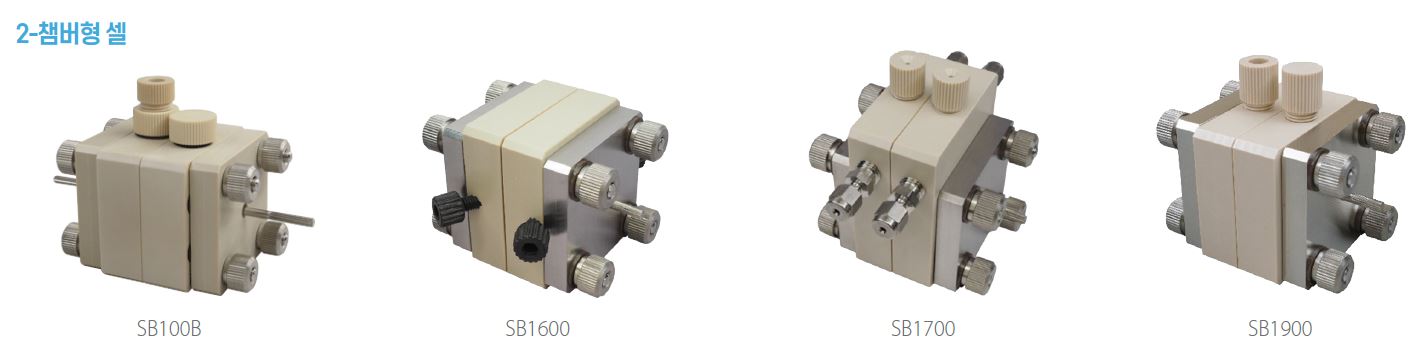

· 2-챔버형 셀

▶ 2개의 Batch 셀로, batch 사이에

고체전해질 등 고정 가능

▶ 각 Batch에서의 반응 생성물 분리 가능

· 라미네이트형 셀

▶ 최대 4x4cm 크기 라미네이트 전지 형상

▶ Li foil 등을 reference electrode로 사용

Description		Cat.No
Batch	Batch cell for battery evaluation cell kit (1 ml), distance between cathode / anode 15 mm	SB1A-S
Batch	Batch cell for battery evaluation cell kit (1 ml), distance between cathode / anode 5 mm	SB100C
2-electrode	2-electrode battery evaluation cell kit	SB2A-S
2-electrode	2-electrode battery evaluation cell kit with PPS insulation	SB8-S
3-electrode	3-electrode battery evaluation cell kit, Glass RE insertion type	SB3A-S
	3-electrode battery evaluation cell kit, Li wire RE insertion type	SB7-S
	3-electrode battery evaluation cell kit with PPS insulation, Glass RE insertion type	SB9-S
	3-electrode battery evaluation cell kit with PPS insulation, wire RE insertion type	SB10-S
2-chamber	2-chamber battery evaluation cell kit (1.5 ml x 2), distance between cathode / anode 20 mm	SB100B
	2-chamber battery evaluation cell kit with solid-electrolyte membrane	SB1600
	2-chamber battery evaluation cell kit with solid-electrolyte membrane, gas analysis	SB1700
	2-chamber 3-electrode battery evaluation cell kit with solid-electrolyte membrane	SB1900
Laminated	Laminated type battery evaluation cell kit, up to 40 x 40 mm	SB1100-S

SB1800A-S

Description			Cat. No.

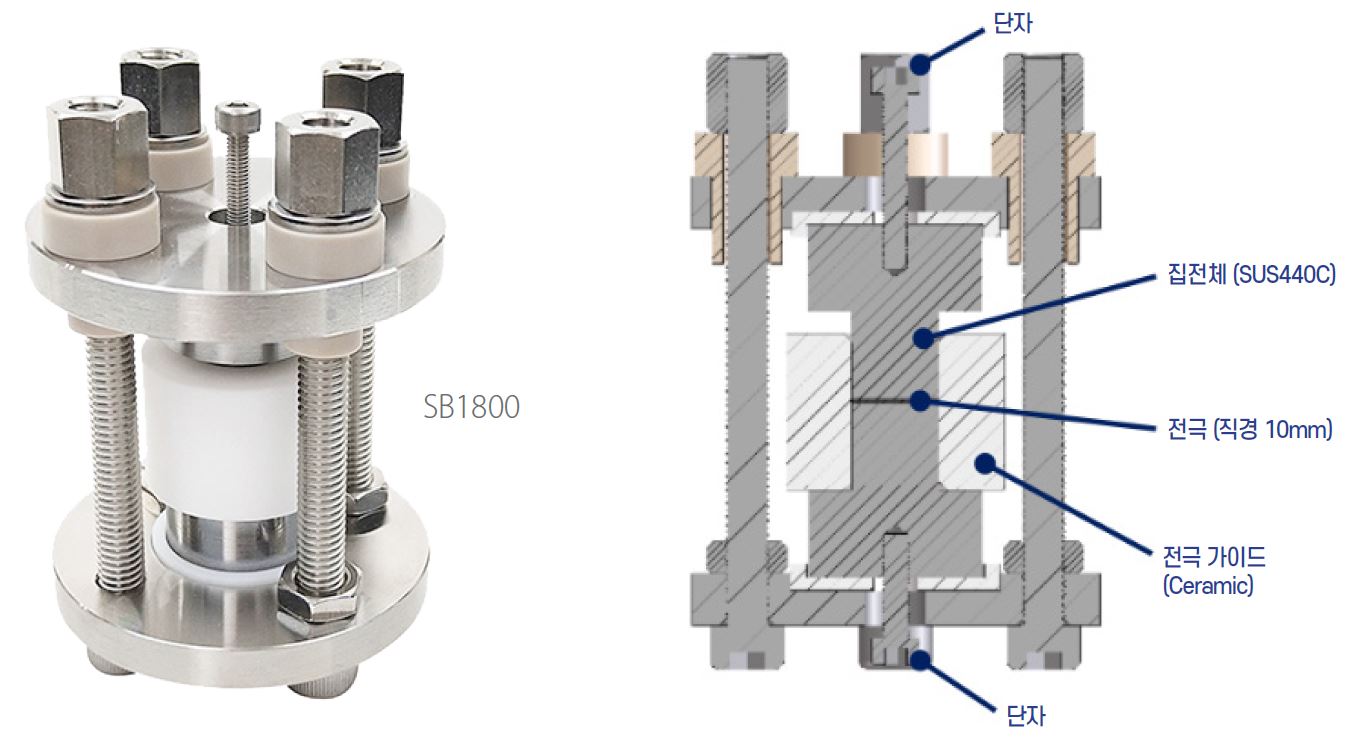

SB1800A-S	Material	Electrode collector : SUS316/SUS304/SUS440C PPS resin / PTFE resin / Ceramic	14274
	Electrode size	dia. 10mm
	Tightening method	Tighten M6 nuts at four locations with a torque wrench
	Tightening Pressure	1,000MPa ※약 8ton
	Max. Pressure	100~150MPa
	Heat resistant temperature	Up to 150℃
	Cell size	dia. 50mm, H 72mm
	Weight	350g

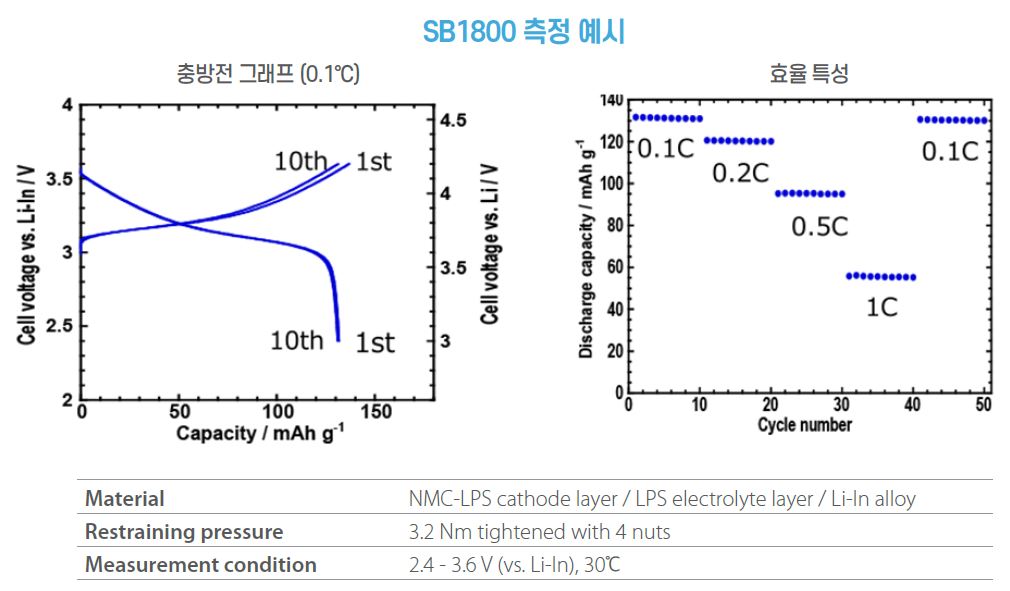

※ SB1800A는 강도 높은 지르코니아 세라믹으로 구성된 전극 가이드가 적용된 제품으로 1,000MPa까지 가압할 수 있는 모델입니다. (※전극 재료의 면적으로 계산)

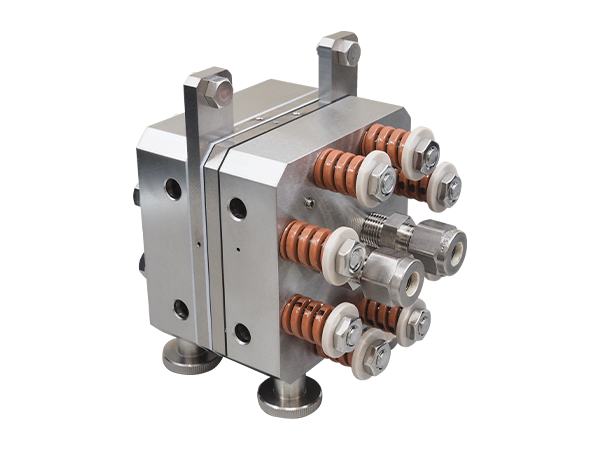

· 양이온교환막(PEM)과 음이온 교환막(AEM) 수전해 실험을 위한 셀 키트

· MEA 구조를 갖는 전기촉매평가를 위한

간편한 구조의 셀

· 물의 전기분해를 통한 수소 생성 정도

평가 가능

· SB2100 / SB2100 A / SB2100 B : 히터와 열전대를 삽입 가능한 셀 구조로 온도 조절 및 측정이 가능

· SB2200 / SB2200 A / SB2200 B : 별도의 액체 펌프가 불필요하며 카본 페이퍼 옵션 선택 시, 음극 측에서의 확산층 형성 가능

Description		Cat. No.
SB2200-S PEM Water Electrolysis Cell Starter Kit		14252
SB2200A-S AEM Type Water Electrolysis Cell (SUS) Starter Kit		14295
SB2200B-S AEM Type Water Electrolysis Cell (Ni) Starter Kit		14296
Option
S2100 Carbon Paper 20 Sheets	Size: 10mm×10 mm, t=0.37	14243
S2200 Spring (3K)	Material: SUS316 Spring Load: 3kgf	14255
Water Electrolyser	Stabilized DC power supply, rated current 10A, rated voltage 16V	21068
Water Electrolyser with Software	I-V characteristic measurement software, DC stabilized power supply, rated current 10A, rated voltage 16V	21069

Description	Cat.No

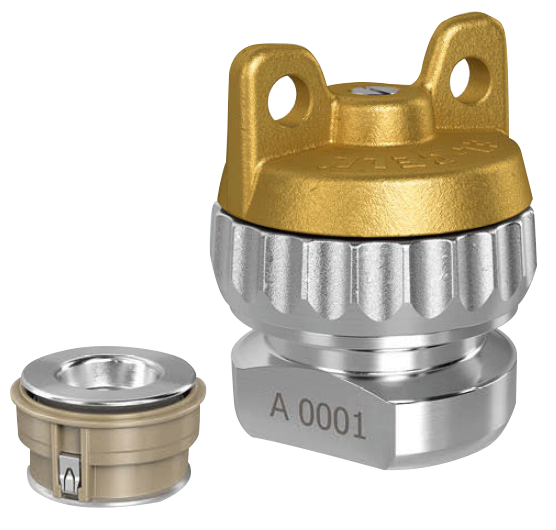

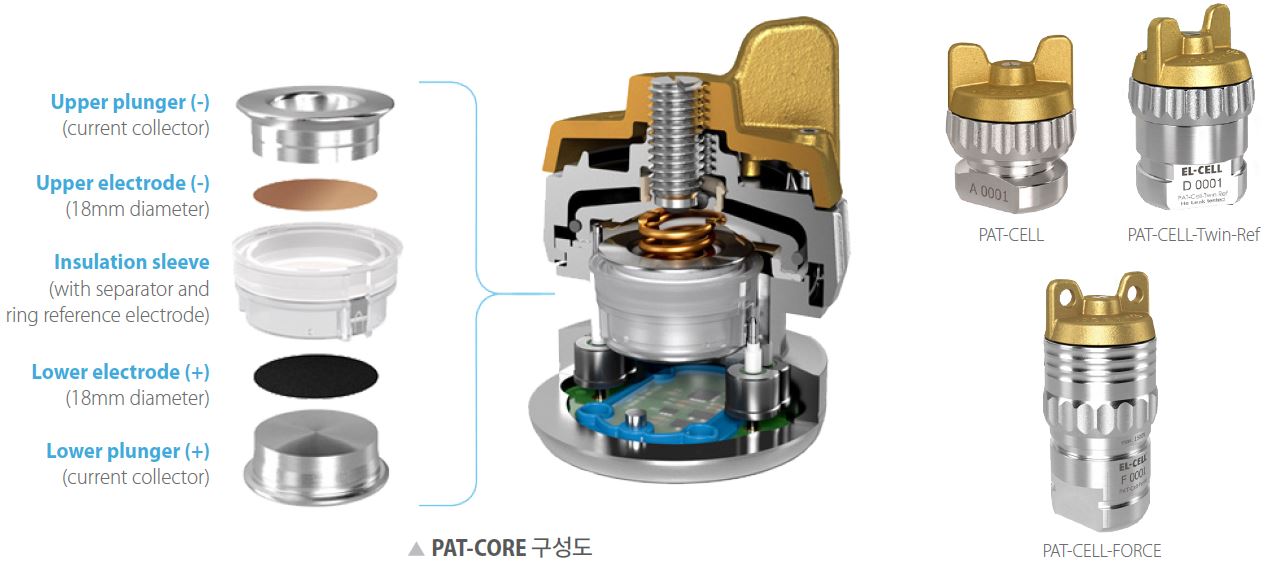

2-/3-electrode battery test cell for Li-ion battery	PAT-CELL
Specialized cell for testing simultaneously with two reference electrodes	PAT-CELL-TWIN-Ref

Description	Cat.No	Options
Pressure test cell for measuring gas evolution and drawing gas sample	PAT-CELL-PRESS*	- Gas sample port
In-situ gas analysis test cell in a flow-through set-up	PAT-CELL-GAS**	- Gas sample port - Pressure sensor

Product name	PAT-CELL	PAT-CELL-PRESS	PAT-CELL-HT	PAT-CELL-GAS

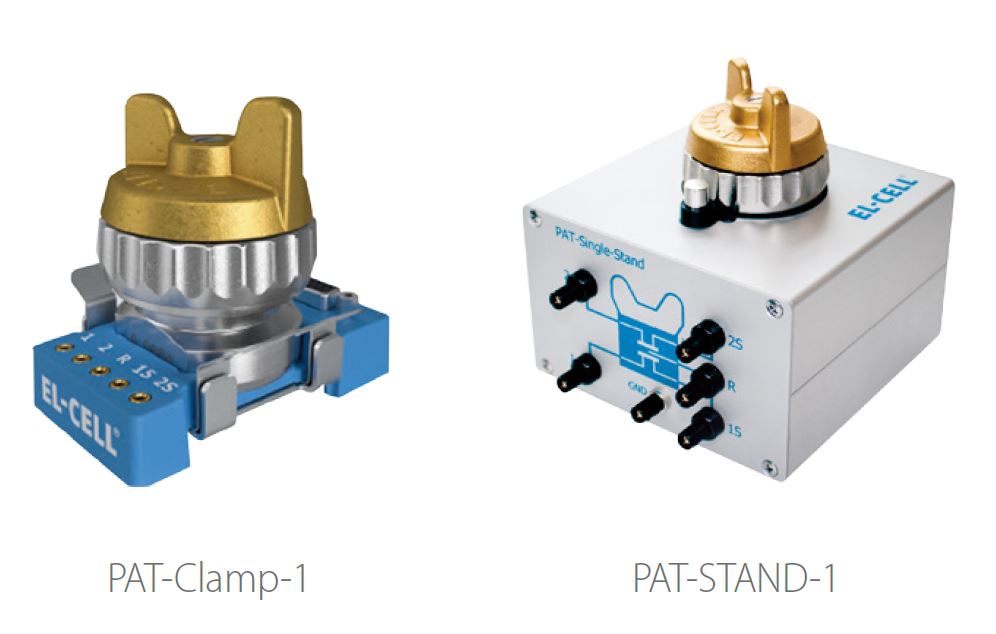

PAT-Clamp-1	C	C	C	C
PAT-STAND-1	C	C	C	C
PAT-Clamp-1 + PAT-PRESS-BOX + PAT-Chamber	C	CTP	C	CTP
PAT-STAND-1 + PAT-PRESS-BOX + PAT-Chamber	C	CTP	C	CTP

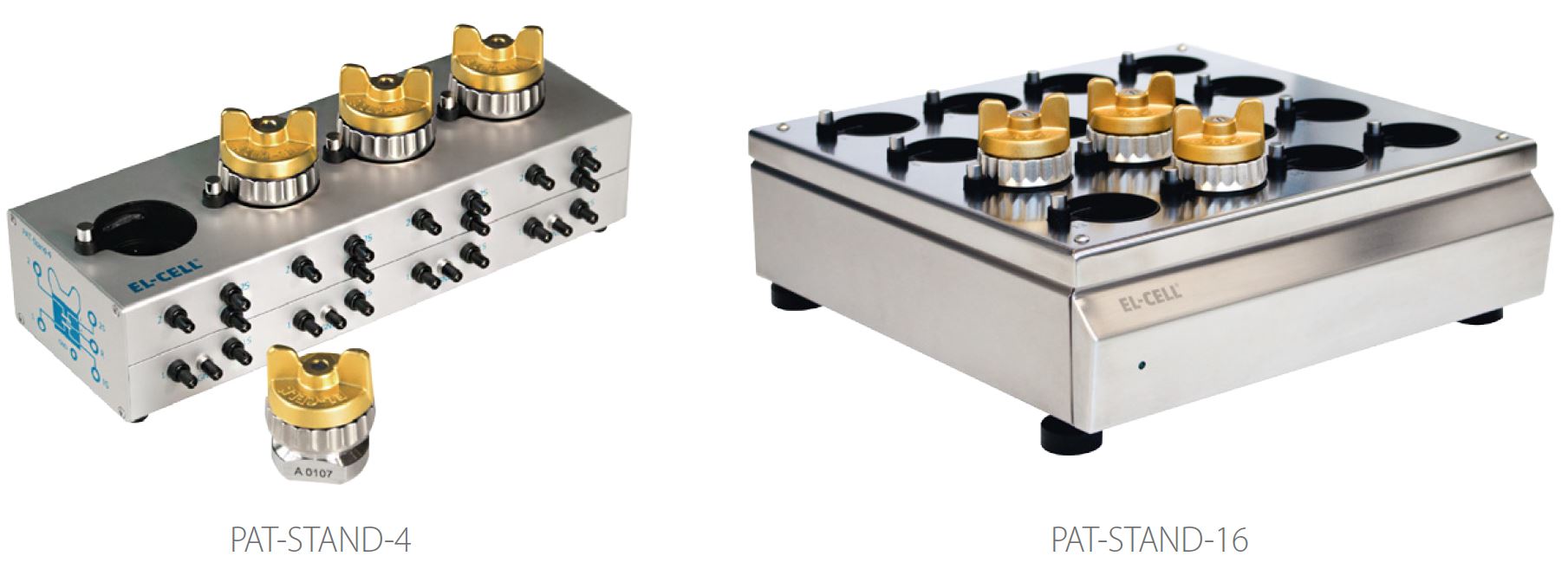

PAT-STAND-4	C	C	C	C
PAT-STAND-16	C	C	C	C
PAT-Chamber-16	C	CTP	C	CTP

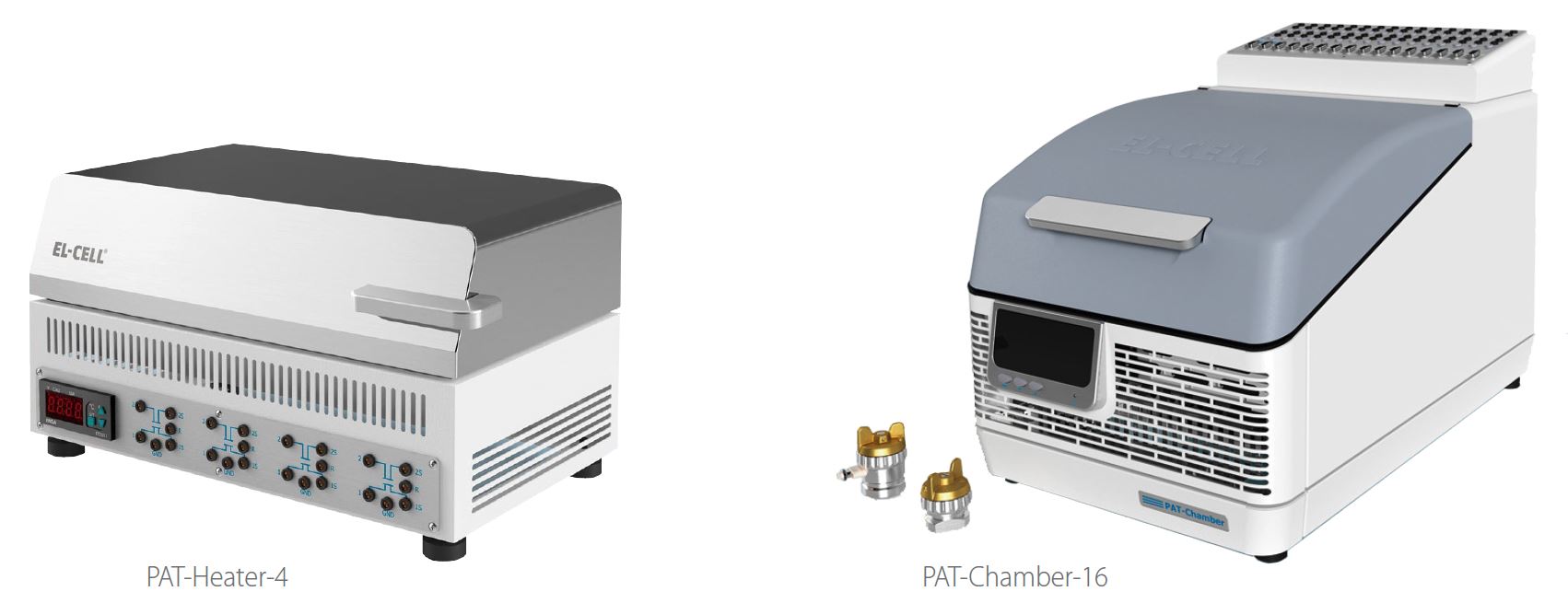

PAT-Heater-4			CT

Description		Cat. No.

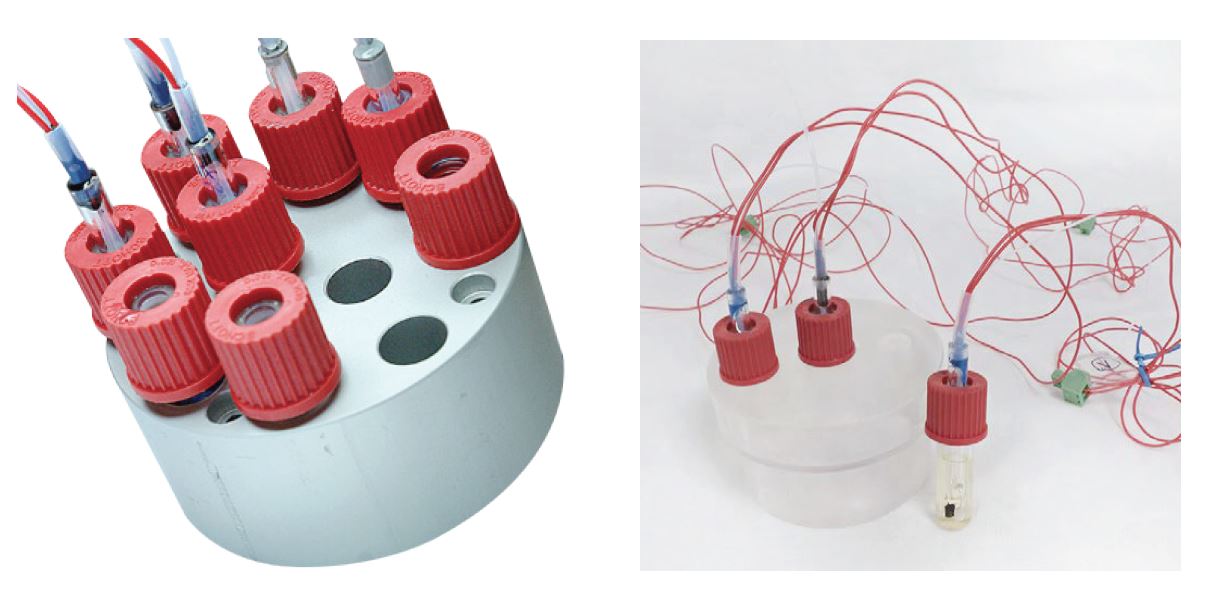

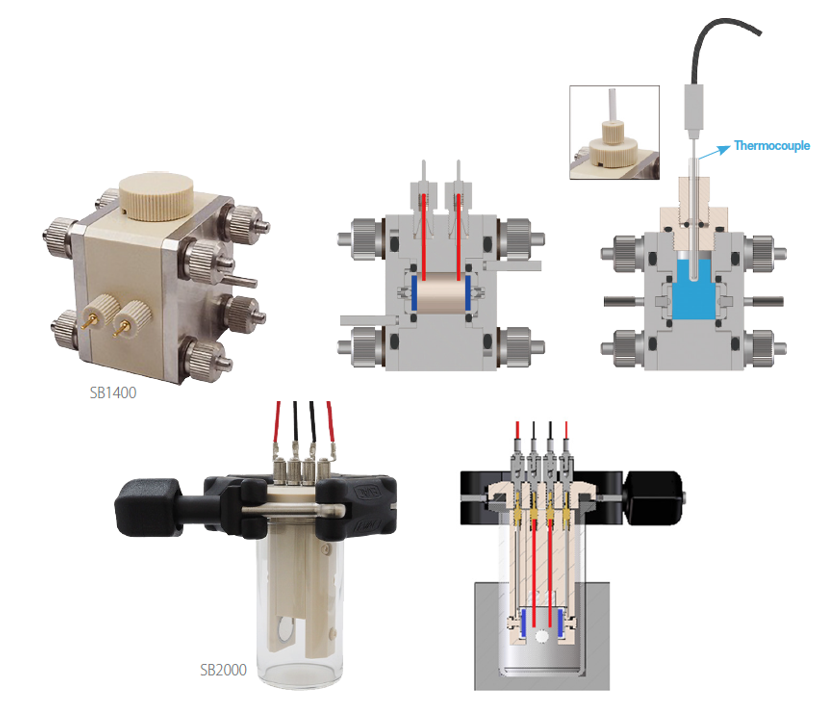

SB1400	- Cell volume : 2 ml - Temperature measurement : Thermocouple type - Internal bath ID : 12 mm - Counter electrode : dia. 1 mm Pt wire	14194
SB2000	- Cell volume : 5 ml - Temperature measurement : Water bath type - Glass cell ID : 28 mm - Counter electrode : Pt	14229
Options
Current Electrode Polishing Jig
O-rings

Description	Cat. No.

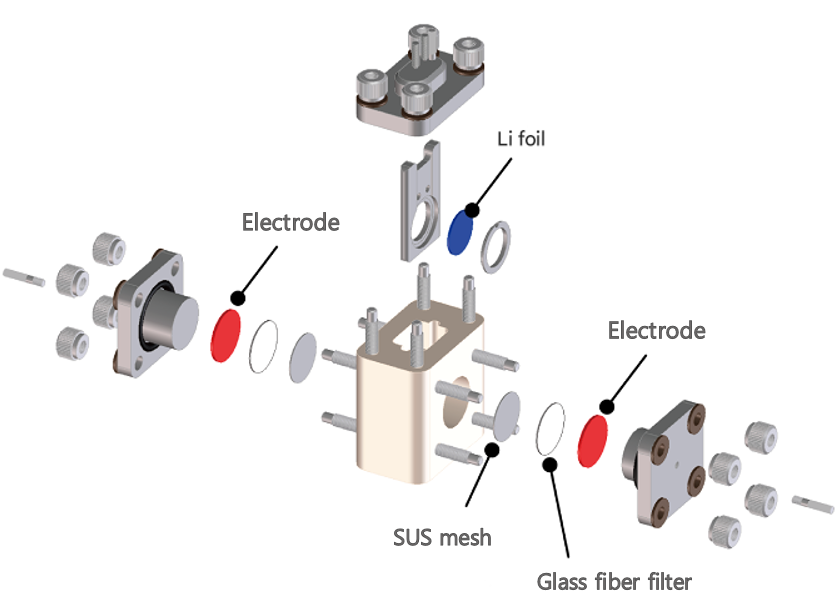

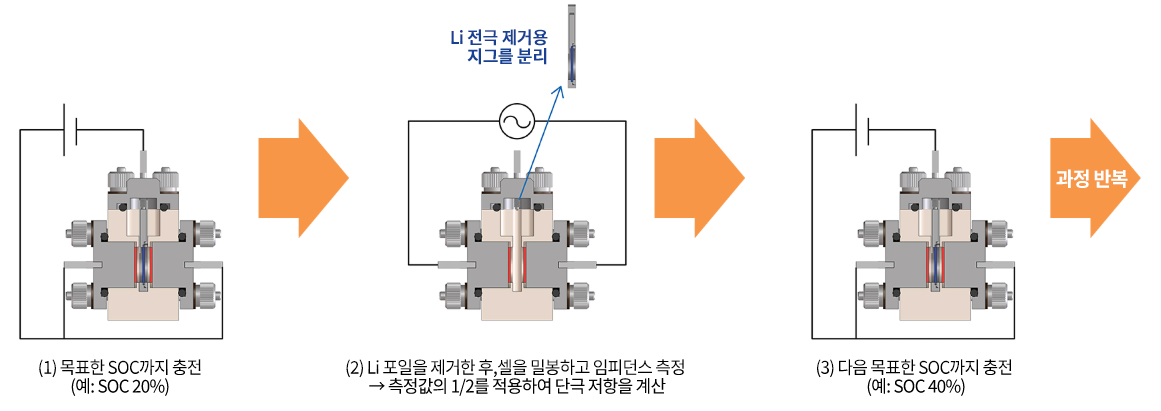

SB2400-S battery symmetric Cell Starter Kit	14268
Options
S2400 Li Foil Storage Container	14269
S2400 Li foil (φ18) cutting edge	14270

Description	Cat.No
Operando test cell to adjust and measure the mechanical force applied to the cell stack	PAT-CELL-FORCE

Description	Cat.No

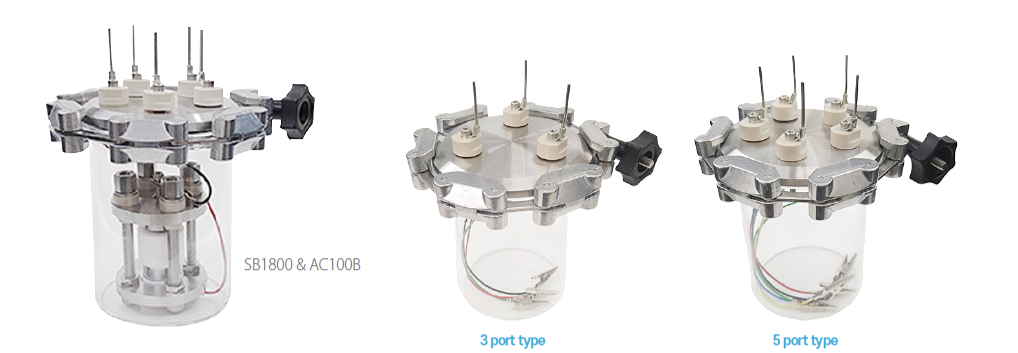

AC100B : Compact sealed chamber	AC100B
