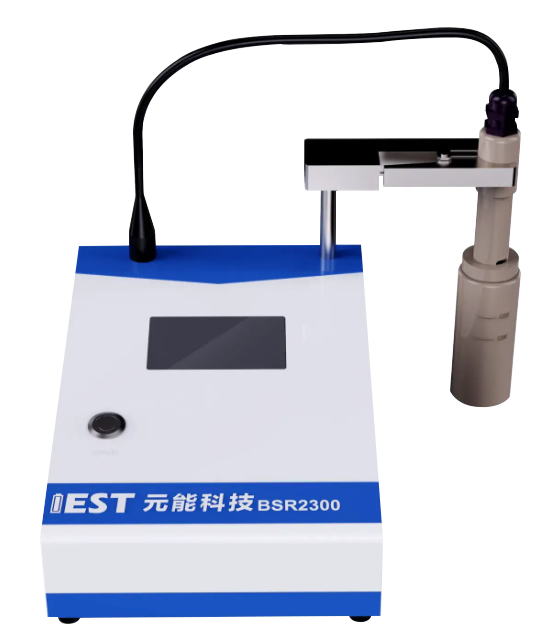

BSR2300


Lithium Battery Slurry Resistance Tester


Maker:

IEST (CHINA)

  FEATURES


  • 리튬 및 나트륨과 같은 전도성 물질 슬러리의 전도도 평가를 통해 연구 개발 지원


  • 세 쌍의 전극을 활용하여 슬러리 물질의 저항률(resistivity) 측정 및 침전 분석

  •  슬러리 재료의 비저항(resistivity) 파라미터 모니터링을 통한 교반 공정의

     안정성 평가 가능




APPLICATIONS


  • Lithium (sodium) battery Anode & Cathode electrode slurries


  • Conductive agent slurries material evaluation


  • Formula evaluation


  • Sedimentation performance evaluation


TECHNICAL SPECIFICATIONS




Parameters
Resistivity measurement range
2.5Ωcm ~ 50MΩcm
Resistivity measurement resolution
0.01μS/cm
Resistivity measurement accuracy
±5%


Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
