FEATURES

• 1Ah에서 1000Ah까지 다양한 용량의 셀에 적용 가능

• 1500Hz에서 0.1Hz의 주파수 범위를 가진 고속 EIS 주파수 스윕 테스트

• OCV, DCR 테스트, 정전류 충방전 테스트 와 호환

• 배터리 일관성(Consistency)의 검사

• 배치 스크리닝을 위한 Dynamic fitting 스크리닝 알고리즘

• 빠른 구획화, 다중 채널 결합 및 편리한 작동

APPLICATIONS

• EIS testing for power batteries or energy storage batteries

• “Industrial grade” EIS applications




• Battery long cycle EIS testing


• The back end of the battery cell factory’s production line carries out consistency screening and abnormal battery detection



• Battery consistency assessment before battery pack preparation

• Rapid SOH evaluation of batteries prior to recycling and remanufacturing into Packs(Cascade Utilization)



• Battery cell procurement quality consistency testing, etc.




SPECIFICATIONS

	Battery Impedance Tester	Adjustable Prismatic Battery Test Bracket	Adjustable Cylindrical Battery Test Bracket
Physical picture

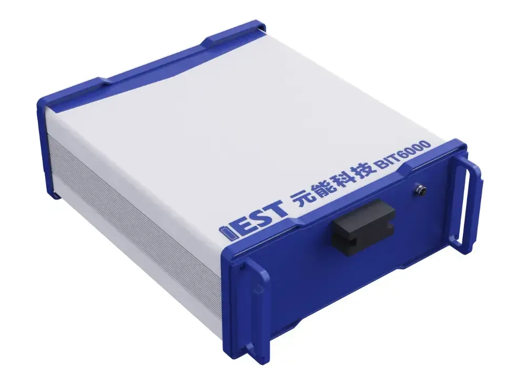

Model	BIT6000	APTB1000	ACTB1000

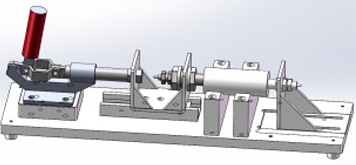

Voltage control accuracy	±0.006% F.S	Applicable to all kinds of prismatic  batteries  Maximum length*width*height  284*94*255 mm  Maximum tab spacing  40 ~ 240 mm  (Other sizes can be customized)	Applicable to cylindrical batteries18650/21700, etc. Maximum length 130 mm Diameter range 18 ~ 50 mm (Other sizes can be customized)
Current control accuracy	±0.05% F.S
EIS frequency range	1500Hz ~ 0.1 Hz
EIS test range	0.05mΩ ~ 100mΩ
Applicable battery capacity	2~1000A lithium-ion battery
