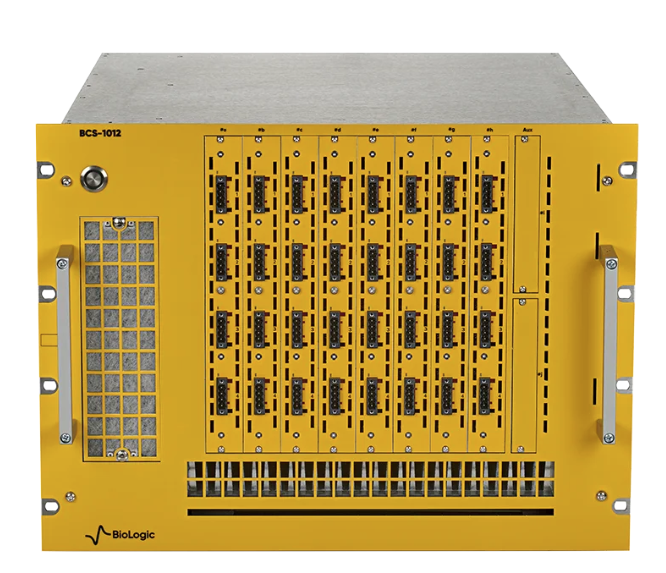

BCS-1012
High channel density for high-volume cell aging & validation test
Maker:
BioLogic (France)
FEATURES
- BCS-1012 : High-Volume Performance - 최대 128 채널 구성으로 screening 및 aging 의 효율적인 테스트가 가능하며,
채널당 ±6 A 전류로 원통형 셀에 최적화된 모델
- 3개의 전류 범위를 가지며 뛰어난 정확도를 가짐
- 24-bit 전류 및 전압 분해능, 고정밀 coulometry 분석
- 외부 장비 또는 온도 프로브와의 인터페이싱 및 스마트 샘플링 등 다양한 기능을 제공
- BT-Lab® Suite 소프트웨어와 함께 편리한 기능과 함께 사용자 중심 설계를 결합하며 BCS-CORE 로 원격제어 및 모니터링이 가능하며
장기간 실험 데이터를 안전하게 저장
- 32개의 독립적인 채널과 함께 모듈식 시스템 구성 가능
TECHNICAL SPECIFICATIONS
BCS-1012 | |
| Channels per module | 32 |
| Voltage | |
| Range | 0 V to 5 V |
| Control resolution | 200 µV |
| Measurement resolution | 0.83 µV (24 bit) |
| Accuracy | 0.5 mV + 0.04% of setting |
| Slew rate | 5 kV/s |
| Current | |
| Max (continuous) per channel | ±6 A |
| Ranges | 3: ±6 A, ±600 mA, ±60 mA |
| Control resolution | Down to 1.2 µA |
| Measurement resolution | Down to 8.9 nA (24 bit) |
| Accuracy | 0.06% of FSR 0.06% of FSR (6 A) + 0.3% of setting |
| EIS | |
| Built-in | No |
| Measurement | |
| Acquisition time | 5 ms |
| Time base | 5 ms |
| Additional measurement | |
| Thermocouple | Optional Auxiliary |
| Cell connection | |
| 4 terminal leads + Ground | |
| General | |
| Height | 8U |
| Weight | 36.5 kg |
| Power consumption | 1750 W |
* FSR: Full Scale Range
SOFTWARE : BT-Lab® Suite
Description | |
| General | • Grid for programming, pop-up global view window to visualize all channels • Powerful monitoring system: DUT status, activity log, grid and graph (BT-Test™) • Easy data access and data management • Modify on-the-fly settings |
| Tasks** | REST, CC, CV, AUP, CALCULATE, CC_CV, CLD, CPW, CS, DCIR, G-ACIR, GEIS, PEIS, LOOP, VS |
| Task Parameters | • Up to 6 task limits among: t, U, ΔU, I, |I|, Q, Qcharge, Qdischarge, P, |P|, E, E charge, Edischarge • Up to 3 record conditions among: Δt, |ΔU|, |ΔI|, |ΔQ| • Ranges from 10 μA to 10 A |
| Safety Limits | Umin, Umax, |I|min, |I|max, |Q|min, |Q|max, Tmin, Tmax |
| Grid | Up to 128 steps. Up to 4 Loops: self-contained or nested. Accessible tool bar to edit the steps of the grid. Intelligible task display for control, limits and records |
| Graph | Accessible toolbar to adjust graph display, application oriented predefined graph representations, easily customizable display of traces, high performance graphics adapted to large volume of data, filters by steps, cycle and/or loop, unlimited number of traces, graphs or tabs (BT-Analysis™) |
| Cycles | Customizable cycles: Charge - Discharge or Discharge - Charge |
| Variables | • Creation of user variables to dynamically program Test Plans • Use of task variables and DUT variables |
| Analyses | Summary tables, statistic tools, automatic tool for analysis and export, Zfit |
** Available task may depend on module type
