전기화학 분석 시스템
Electrochemistry systems
FEATURES
• Low cost and compact design
• Performing a Measurement Sequence
• Simultaneous control and synchronization of devices
• Potential measurement of reference and action electrodes and counterelectrodes.
• Operation during measurement
• Wireless communication
• Can be used in the glove box
• IR Correction

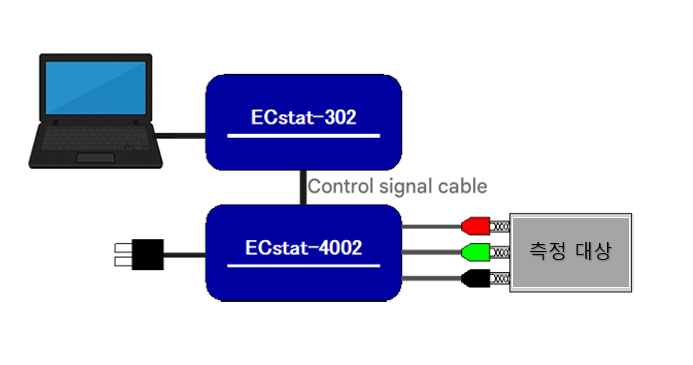

연결 예시
SPECIFICATIONS
Sections | Specifications | |
P.S. | Maximum output current | ± 13 V |
| Maximum output current | ± 300 mA | |
| Control potential | ± 6.4 V | |
| Current Range | ± 3 μA, ± 30 μA, ± 300 μA, ± 3 mA, ± 30 mA, ± 300 mA (6 ranges total) | |
G.S. | Maximum output current | ± 300 mA |
Maximum output voltage | ± 13 V | |
| Potential range | ±0.64 V, ±1.28 V, ±6.4 V, ±12.8 V (4 ranges in total) | |
| Control Interface | Connector Harness | |
| power | 100~240VAC 50/60Hz | |
| Dimensions, weight | W190mm × D100mm × H75mm，0.85 kg | |
| operating temperature, humidity | 5~40°C, 10~90% (non-condensing) | |
