Cables / Connectors / Etc.

케이블 / 각종 커넥터류 / 기타 악세사리




Cables / Connectors / etc.

악세사리 제품은 PC 화면으로 보시는 것을 권장합니다.


* 화면 하단의 [PC 모드로 보기]를 클릭하시면

모바일에서도 PC 화면과 동일하게 보실 수 있습니다.

Specific Cables

(BioLogic)

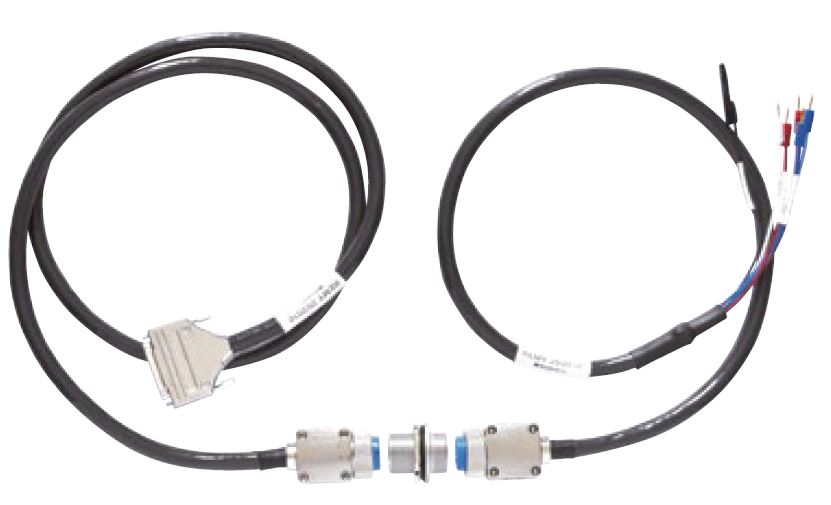

·  글로브 박스 연결용 케이블

Hermetic Cell Cable for Glove box




Essential
Premium
Standard
Low Current cable
Cat. No.
092-23/5
094-101/6
094-101/8
구성
Feedthrough type
12 pins
25 pins *
Inside glovebox (length : 1 m)
Cable with 2 mm connectors on one side
and 12-pin Jaeger connector on the other side

Cable with electrometer on one side

and 25-pin connector on the other side

Outside glovebox (length : 1.5 m)
Cable with Sub-D 25 connector on one side and
12 pin Jaeger connector on the other side
(length 1.5 m)

Cable with Sub-D 25 connector on one side

and 12 pin Jaeger connector on the other side

(length 1.5 m)

  Requirement
Hole diameter needed in glovebox / mm
27
45

* Two feedthrough seals : one installed in the glove box wall, the other dedicated to the channel board.

Longer Cables

ProductLengthCat.No.
Premium
SP-200
SP-300
VSP-300
VMP-300		2.5m094-101/3A
3m094-101/3B
5m094-101/3C
2.5m *094-101/4-25
2.5m (Ultra Low Current)094-101/4A
5m (Ultra Low Current)094-101/4D
Essential
SP-50e
SP-150e
VSP
VSP-3e
VMP-3e		1.5m
092-23/1
1.5 m stack measurements
092-23/1S
1.5 m high temperature (-40°C to +150℃)
092-23/1HT
2.5m092-23/2
3m092-23/7
5m092-23/3
10m092-23/4
Booster 2A, 5A2.5m
092-33/11
3m092-33/12
5m092-33/13
Booster 10A, 20A2.5m092-33/21
3m092-33/22
5m092-33/23
BCS cables
BCS-X15
BCS X05
BCS X10
25 cm cell cable for one BCS-X15 channel
096-011/1
2.5 m cell cable for one BCS-X15 channel
096-011/2
5 m cell cable for one BCS-X15 channel
096-011/3
10 m cell cable for one BCS-X15 channel
096-011/4
30 cm cable for BCS X05/X10
096-021/1
2.5 m cable for BCS X05/X10
096-021/2
5 m cable for BCS X05/X10
096-021/3
10 m cable for BCS X05/X10
096-021/4
Booster to Potentiostat
All boosters3 m
092-33/5
5 m
092-33/6


Cable

(BioLogic)

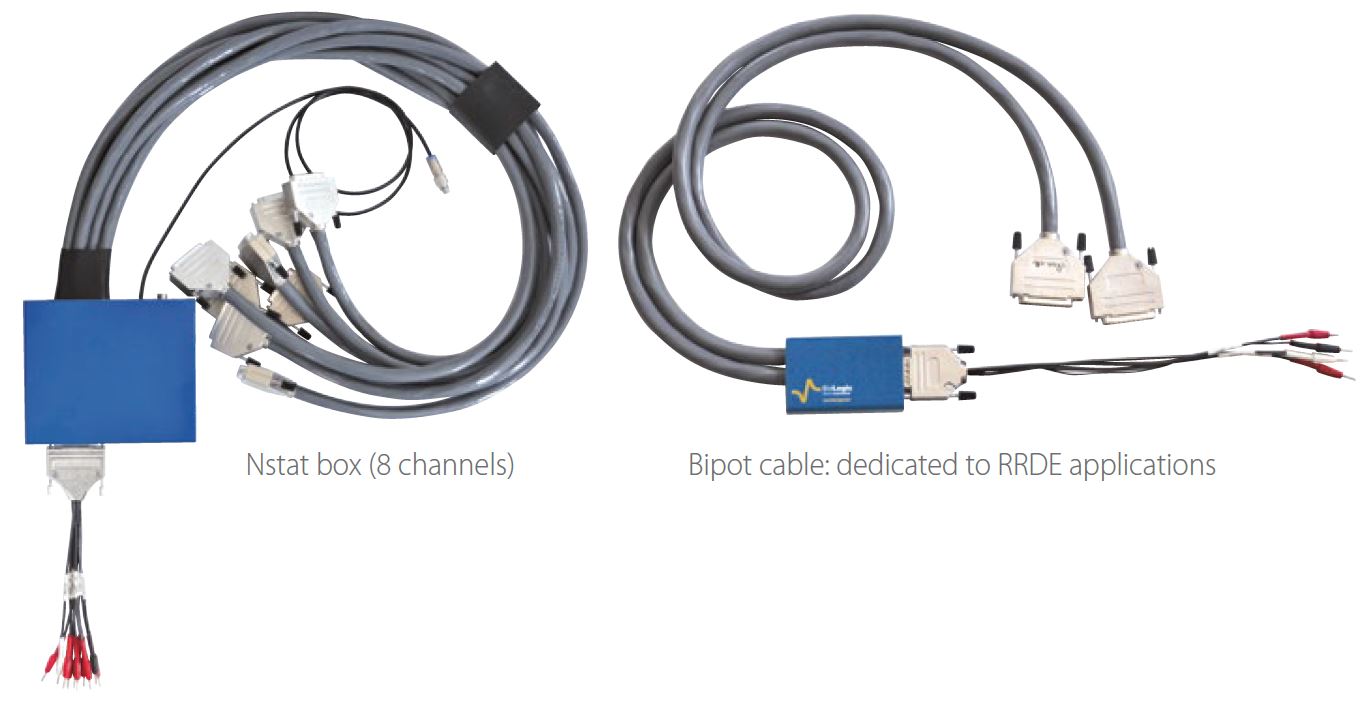

· 다중전극 응용을 위한 Nstat box : 최대 8개의 작업전극 동시 테스트 가능


·  RRDE 응용을 위한 Bipot cable

Multi-Electrode Investigation Cables

Description
Compatible instruments
Channel
Length
Cat. No.
Bipot cable

SP-150e

VSP

VSP-3e

VMP-3e

2
1.5 m
092-22/12

Nstat box

(external power supply required)

VSP

VSP-3e

VMP-3e

4
1.5 m
092-16
8
1.5 m
092-22/3
External power supply for the Nstat box
092-16/1

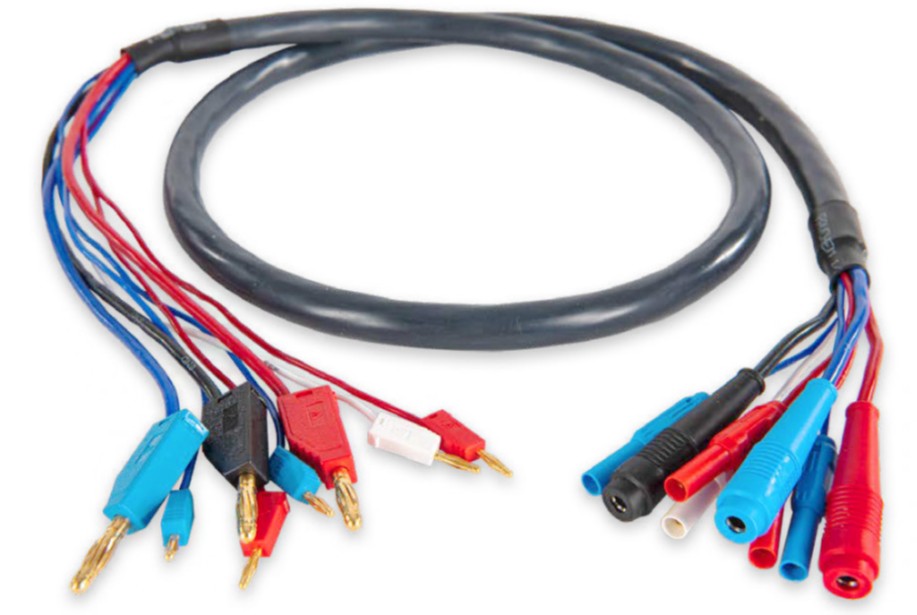

High-Temperature Extension Cables

(BioLogic)

· 최대 150℃ 의 연장케이블

Description
Cat. No.
092-25/1
092-25/2
Length
1.3 m
2.5 m
Temperature *
-40℃ to 150℃
Max. current by using 2 mm input/output/A
2
Max. current by using 4 mm input/output/A
20
Cable diameter / mm
12.7
2mm
Resistance /mOhm**
< 95
< 180
Open circuit capacity /pF
< 155
< 340
Short circuit inductance /nH
< 20
< 30
4mm
Resistance /mOhm**
< 25
< 40
Open circuit capacity /pF
< 155
< 340
Short circuit inductance /nH
< 195
< 455


* Only for the cables and output banana plugs. Input receptacles can only be used up to 80℃  maximum.

** These resistances will not be measured in a 4-point configuration. The compensation analysis tool can also be used if 2-point measurements are performed. The compensation analysis tool can also be used to compensate the open circuit capacity as well as the short circuit inductance.

Connectors

(BioLogic)

· 악어클립, 바나나 플러그, 각종 Receptacles

Description
Cat. No.
Alligator clips
2 mm (pack of 28) : 8 x red, 8 x blue, 8 x white, 4 x black

Temperature: -25℃ to +100℃

Rated current: 8 A (30 V AC - 60 V DC)Contact resistance: 5 mOhm

092-1001/40
4 mm (pack of 9) : 3 x red, 3 x blue, 3 x black

Temperature: -40℃  to +80℃

Rated current: 32 A

092-1001/41
Receptacles
2 mm (pack of 75) : 20 x red, 20 x blue, 20 x white, 15 x black

Temperature: -60℃  to +100℃

Rated current: 10 A

Contact resistance < 1 mOhm

092-1001/42
4 mm (pack of 36) : 12 x red, 12 x blue, 12 x black

Temperature: -60℃  to +100℃

Rated current: 30 A

Contact resistance = 0.5 mOhm

092-1001/43
Banana plugs
2 mm (pack of 40) : 10 x red, 10 x blue, 10 x white, 10 x black

Temperature: -40℃  to +70℃

Rated current: 10 A (30V AC - 60 V DC)

092-1001/44
4 mm (pack of 24) : 8 x red, 8 x blue, 8 x white

Temperature: -40℃  to +70℃

Rated current: 19 A (30V AC - 60 V DC)

092-1001/45
Adaptors

2 mm receptacle to 4 mm plug adapter (pack of 20) :

6 x red, 6 x blue, 4 x white, 4 x black

Temperature: 0℃  to +60℃

Rated current: 10 A (30V AC - 70 V DC)

092-1001/46

2 mm receptacle to 4 mm plug adapter for banana plug

(pack of 32) : 16 x red, 16 x blue

Temperature: -40℃  to +70℃

Rated current: 25 A (30V AC - 60V DC)

Contact resistance = 0.4 mOhm

092-1001/47

4 mm receptacle to 2 mm plug adapter for banana plug

(pack of 20)

Temperature: -40℃  to +70℃

Rated current: 10 A (30V AC - 60V DC)

092-1001/48

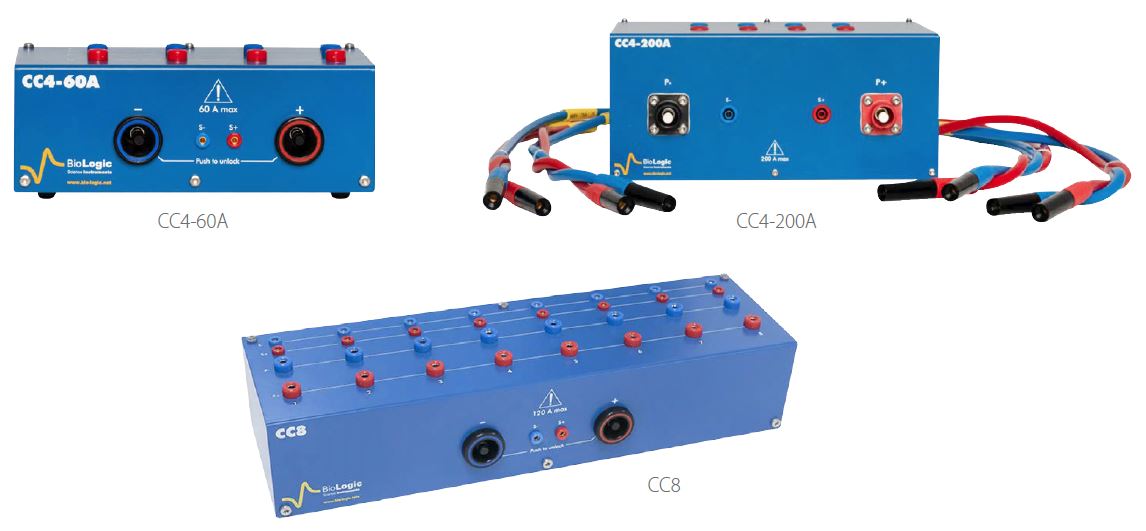

Current Collectors

(BioLogic)

· BioLogic 사의 VSP-300, VMP-300, BCS series 장비채널을 병렬로 연결하여 인가할 전류를 늘리고자 할 때 사용


· 최대 8채널 연결 가능 (up to 120A)

Product
CC4-60A
CC8
CC4-200A
Cat.No.
096-022
096-015
093-100/CC4
Input
Power cables / receptacles diameter / mm
4
6 (IP2x)
Voltage sense receptacles diameter / mm
2
4
Number of input channels
4
8
4
Max. current / channel/A
15
50
Output
Power cables / receptacles diameter / mm
6 (IP2x)

8 (Amphenol, IP2x)

Voltage sense receptacles diameter / mm
2 (IP2x)

4 (IP2x)

Max. output current / A
60
120
200
Cables details
Output power cables
1 pair of 2 m power cables with 6 mm receptacles

1 pair of 2.5 m power cables with

8 mm receptacles and M8 threads

Output voltage cables
1 pair of 2 m sense cables with 2 mm banana plugs

1 pair of 2.5 m sense cables with

4 mm banana plugs

Instrument compatibility

BCS-815*

VSP-300

VMP-300

FlexP0160

FlexP0060

HCV-3048

Included connection kit
094-110/CNT
093-200/CNT
Measurement type
4 point
Max. operating / °C
80
Size (H x W x D) / mm
70 x 170 x 88
70 x 300 x 88
120 x 248 x 169
Weight / kg
3.8


* The CC8 comes with BCS tablets and cables.

It is also compatible with the VSP-300 and VMP-300 and can be provided without cables and tablets using the following part number: 096-015/1.

Sense Adaptor Module

(BioLogic)

· BioLogic 사의 Multi-channel 장비와 연결하여 stack 측정 시 사용

· 최대 5개의 Channel board 연결 가능

Sense Adapter Module
Cat. No.
SAM-50
092-26
