Scanning System Accessories
(BioLogic)

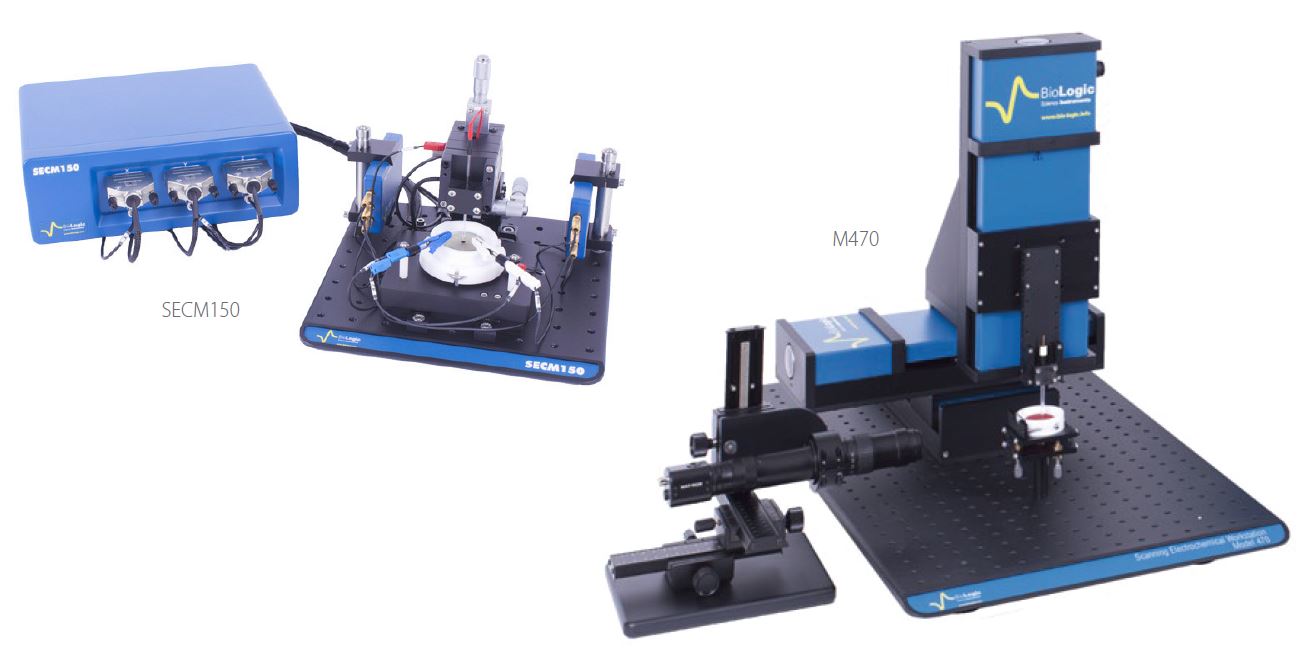

· BioLogic의 Scanning System인 M370, M470 및 SECM150 전용 악세사리

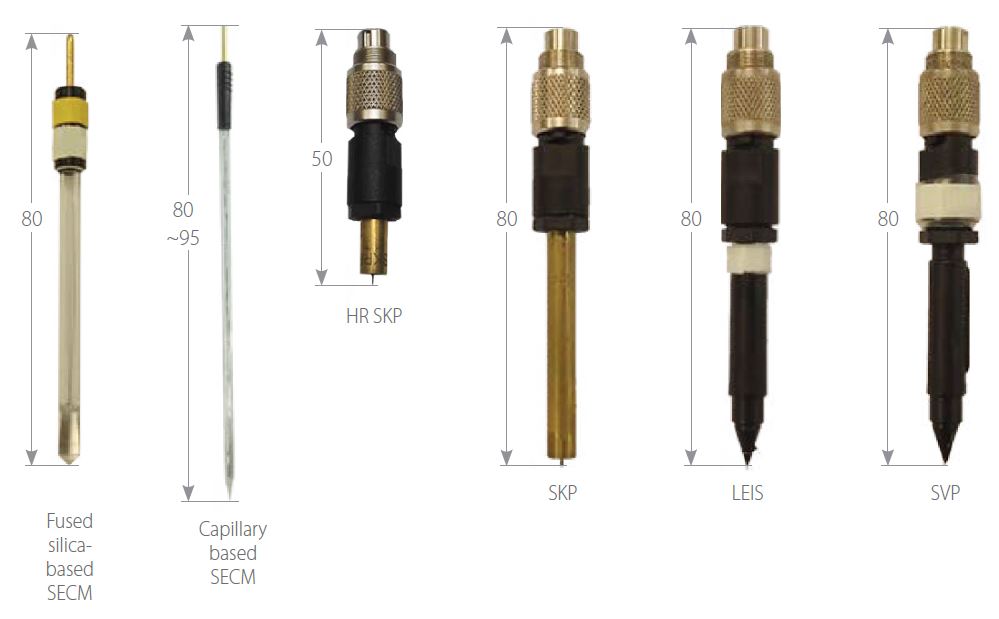

Probes
| Product | Cat.No |
| Fused silica-based SECM 10 μm diameter platinum disk (1 ea) | U-23/10 |
| Fused silica-based SECM 15 μm diameter platinum disk (1 ea) | U-23/15 |
| Fused silica-based SECM 25 μm diameter platinum disk (1 ea) | U-23/25 |
| Capillary based SECM 1 μm diameter platinum disk (5 ea) | U-P5/1 |
| Capillary based SECM 2 μm diameter platinum disk (5 ea) | U-P5/2 |
| Capillary based SECM 5 μm diameter platinum disk (5 ea) | U-P5/5 |
| Capillary based SECM 10 μm diameter platinum disk (5 ea) | U-P5/10 |
| Capillary based SECM 15 μm diameter platinum disk (5 ea) | U-P5/15 |
| Capillary based SECM 25 μm diameter platinum disk (5 ea) | U-P5/25 |
| SKP 500 μm diameter | U-SKP370/1 |
| HR SKP 150 μm diameter | U-SKP-150 |
| LEIS | U-LEIS370/1 |
| SVP | U-SVP370/1 |

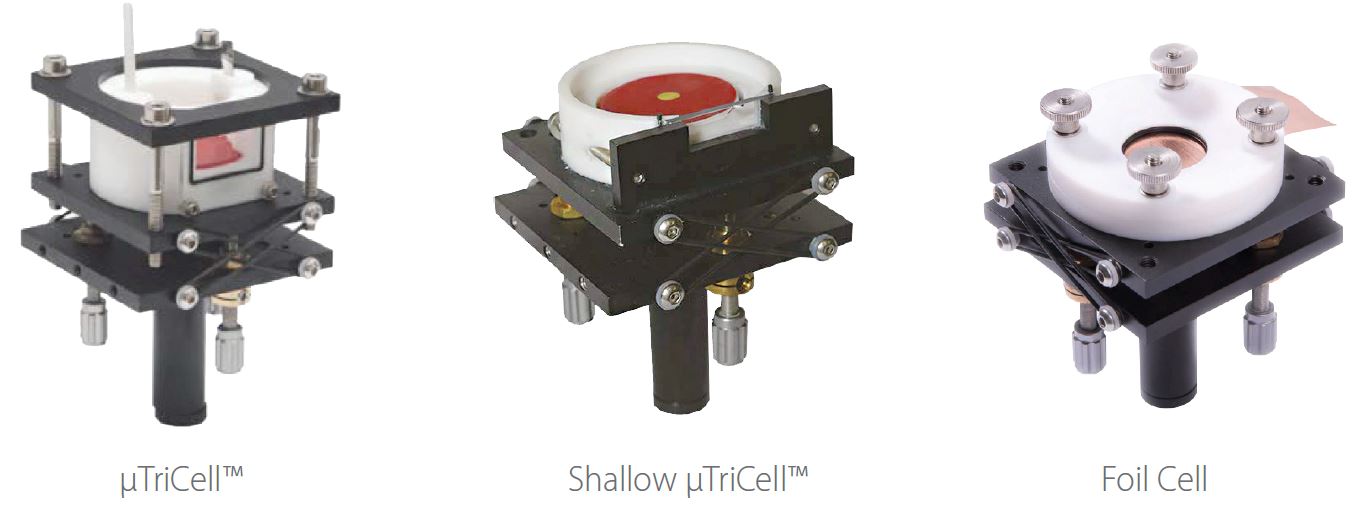

Cells
| Product | Volume (ml) | Cat.No |

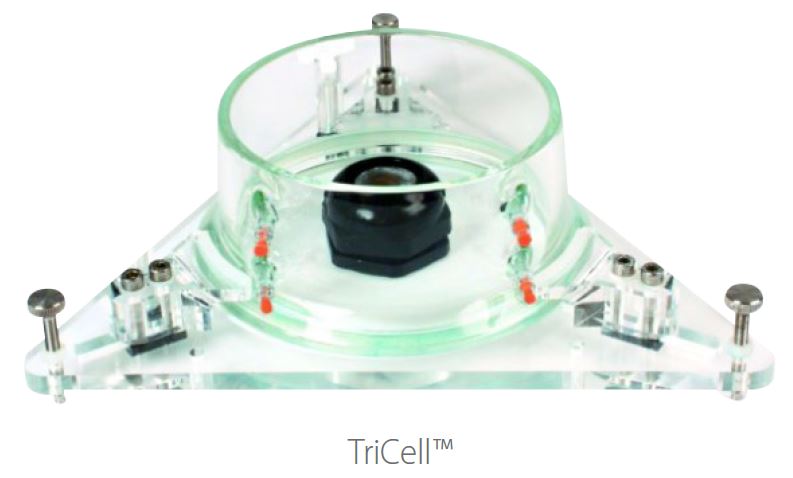

| TriCell™ | 700 | U-TRICELL |
| μTriCell™ | 7 | U-uTRICELL |
| Shallow μTriCell™ | 6 | U-SuTRICELL |
| Foil Cell | 1 | U-uFoilCell |

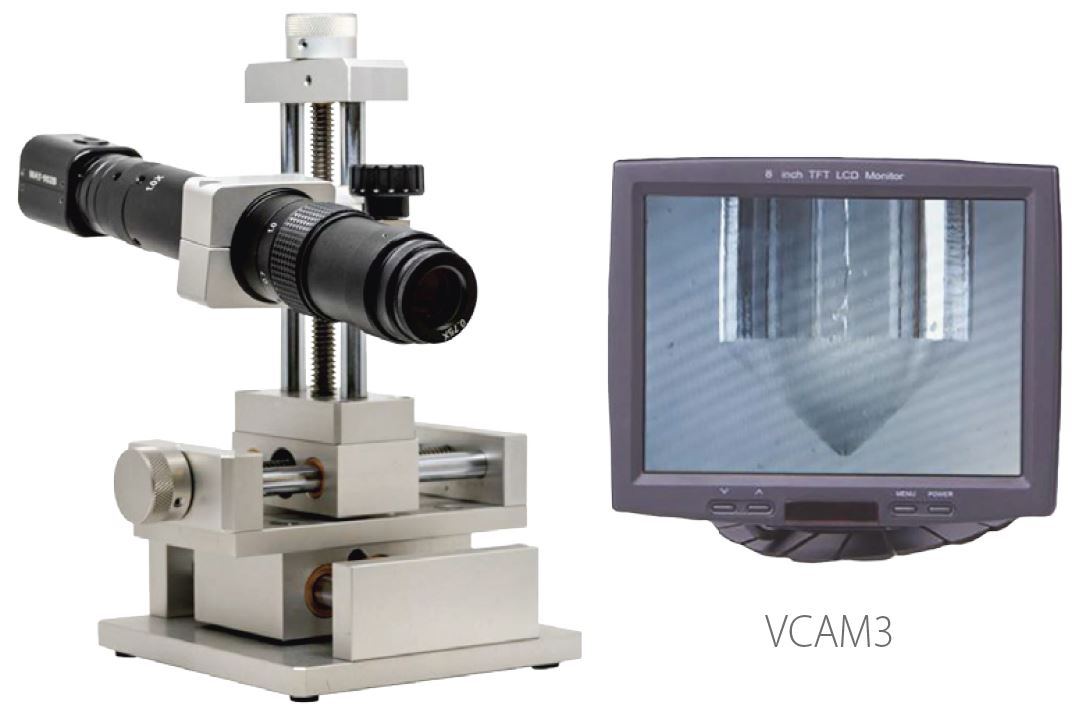

Video Microscope System
Description | Cat.No | |
| Working distance | 130 mm | U-VCAM3 |
| Min. illumination / lux | 0.003 | |
| Field of view / mm | 1.6 x 2 mm (max) to 13 x 8 mm (min) | |
| Operating temperature / ℃ | -30 to 70 | |
Scanning System Accessories
(BioLogic)
· 저전압 램프 또는 LED 같은 외부장치를 M470 소프트웨어에서 직접 전환 가능
· 최대 4개 채널을 개별적으로 또는 전체적으로 제어 가능

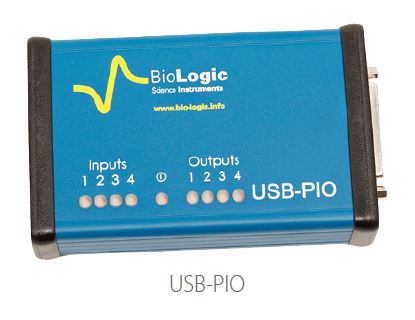

USB-PIO
Specifications | Cat.No | |
| Controlled channel | 4 | U-USB-PIO |
| PC Interface | USB | |
| Power supply | 5V DC sourced via USB connection | |
| Input / Output interface | DB25 pin female connector | |
| Input 1, 2, 3, 4 | +24V DC @ 0.9mA Max (reverse voltage protected) | |
| Output 1, 2, 3, 4 | Common, Normally-Open and Normally-Closed relays, rated at ±24V AC/DC @ 300mA resistive load Max | |
