Fuel Cells
(balticFuelCells)
· 연료전지 내부부품 테스트 셀
(MEA, GDL, GDE, etc.)
· PEMFC, DMFC 특화 테스트 셀
· 활성영역에 대한 접촉압력 조절 가능
· 별도의 장비가 필요없는, 쉽고 빠른
셀 조립/장착 과정
· 다양한 응용에 적합한 Fuel cell stack

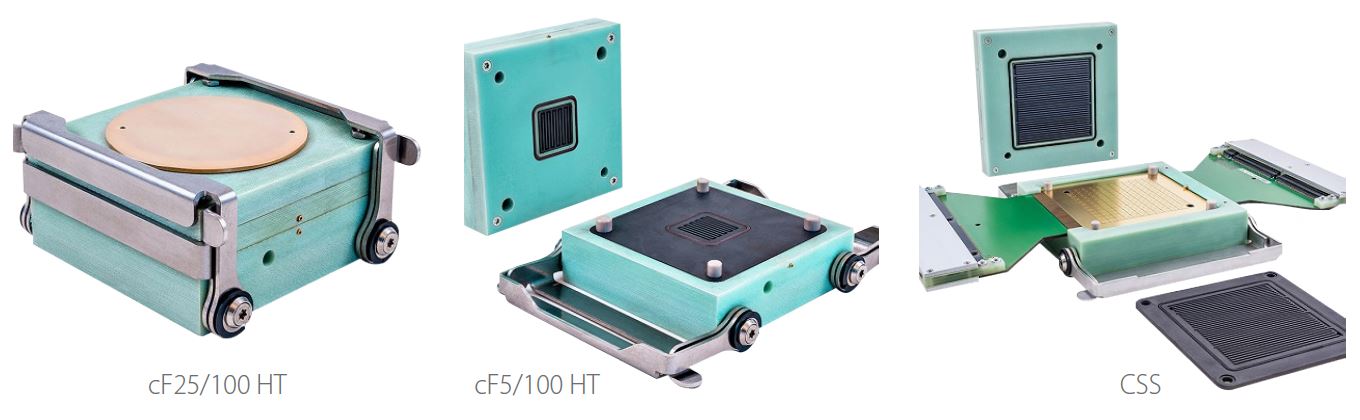

Support frame pressure unit : qCf quick CONNECTfixture
| qCf FC25/100 | qCf FC50/125 | qCf 12 High Amp | |
Weight | 8kg | 9kg | 6kg |
| Pneumatic piston diameter | 100mm | 125mm | 100mm |
| Active area | 25cm2 | 50cm2 | 12cm2 |
| Max. operating temperature | -20℃ to 180℃ | -20℃ to 150℃ | |
| Liquid cooling | Heating/cooling via a heating bath thermostat | ||
| Max. contact pressure (@ 4 bar) | 3kN / 300KG / 675lbf / 2.5N/mm2 | ||
| Pneumatic connection (actuator) | ø 4mm quick-release connector | ||
| Operating mode | Mechanical via 5/2-way valve | ||
| Media connections (anode/cathode) | ø 6mm Swagelok connection | ||
CellFixture
| Cells Electrolysis | Cells Fuel cell | |||
| PEM electrolysis | AEM electrolysis | LT PEM fuel cell | HT PEM fuel cell | |
| Active area | 5cm2 / 25cm2 | |||
| Material flow field | Titanium (anode) Graphite (cathode) | Nickel (anode) Nickel (cathode) | Graphite | |
| Max. working pressure of the cell | Up to 2 bar g | |||
| Max. thickness of sample | 2mm | |||

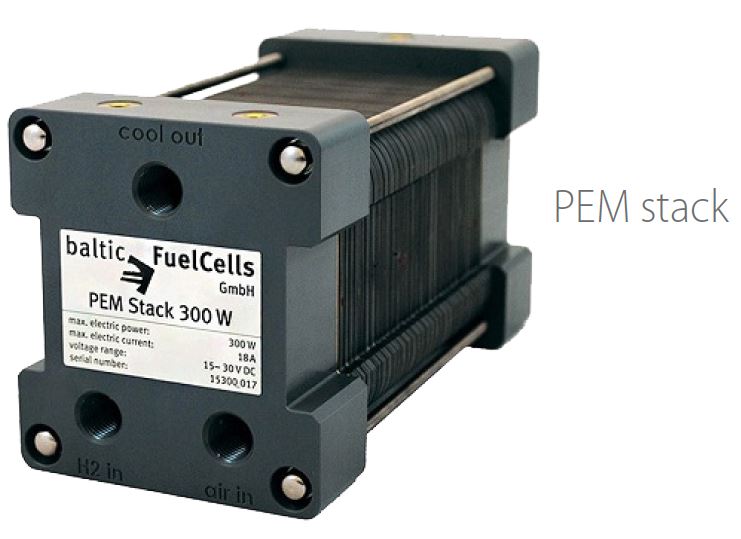

PEM stack
| PEM stack 300W | PEM stack 200W | PEM stack 40W | |
| Tension | 15 - 30 V | 10 - 22 V | 2 - 4 V |
| Electronic performance | 300W nominal | 200W nominal | 40W nominal |
| Cell count | 30 | 22 | 4 |
| Electricity | 18 A | ||
| Fuel | H2 3.0, dry | ||
| Hydrogen inlet pressure | 250 - 350 mbar(g) | ||
| Oxidizing agent | Ambient air (non-humidified) | ||
| Operating temperature | 5 - 55℃ | ||
| Cooling | Liquid | ||
Options
| Description |

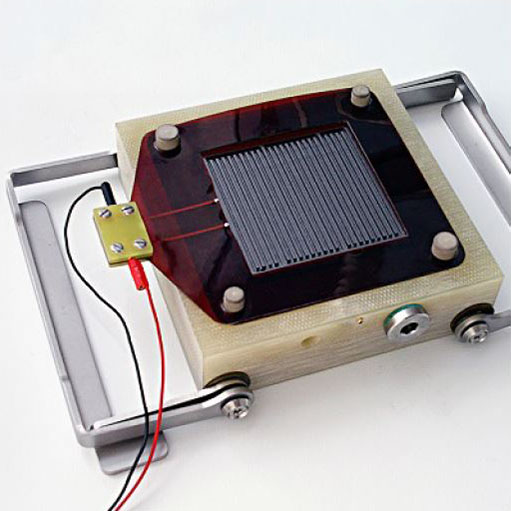

DHRE with Pt reference electrode : Dynamic Hydrogen Reference Electrode |

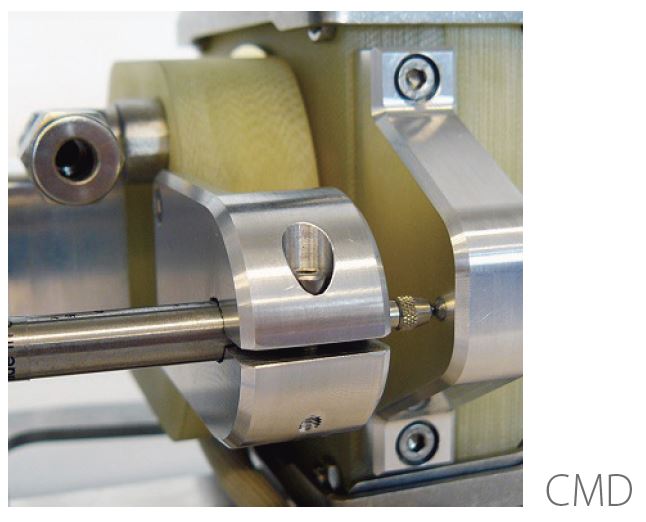

| CMD for measuring the compression of cell internal components : Compression Measurement Device |
| CSS for current density distribution measurement |

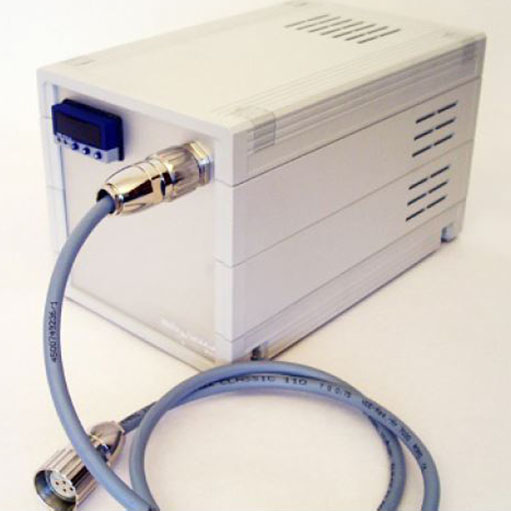

| TCU heater control : Temperature Control Unit |

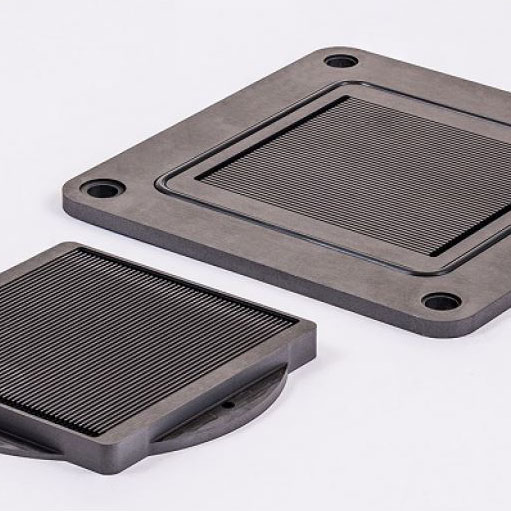

| Flow field set for various applications |
