Glassware
Glassware
악세사리 제품은 PC 화면으로 보시는 것을 권장합니다.
* 화면 하단의 [PC 모드로 보기]를 클릭하시면
모바일에서도 PC 화면과 동일하게 보실 수 있습니다.
Glassware
(BioLogic)
· BioLogic Cell kit 에 사용할 수 있는 Glassware
· Bridge tube를 사용함으로써 기준전극의
방해요소 제거
Bridge Tubes / Purge Tubes
| Description | Ref. electrode | OD | Height | Quantity | Purpose | Vycor type compatibility | Cat. No. |
| Small size bridge tube | Ø 6 mm | 6 mm | 68 mm | 2 | SVC-3 | 092-VYC3 | A-012176 |
| Ø 6 mm | 6 mm | 22 | SVC-2, SVC-3 | A-012306 | |||
| Ø 9 mm | 9 mm | 2 | SVC-2 | A-012177 | |||
| Ø 9 mm | 9 mm | 22 | A-012307 | ||||
| Bridge tube for corrosion cells | Ø 6 mm | 10 mm | 250 mm | 1 | EL-CORR-1 EL-CORR-1DJ | 092-VYC4 | EL-C-008 |
| Ø 6 mm | 120 mm | EL-FLAT-1CM EL-FLAT-10CM | EL-F-004 | ||||
| Ø 8 mm | 250 mm | EL-CORR-1 EL-CORR-1DJ | EL-C-017 | ||||
| 140 mm | EL-FLAT-1CM EL-FLAT-10CM | EL-F-004B | |||||
| Bridge tube for analytical cells | Ø 8 mm | 10 mm | 165 mm | 1 | EL-ELECTRO-80 EL-ELECTRO-80DJ EL-ELECTRO-150DJ | EL-A-017 | |
| Ø 6 mm | 155 mm | EL-A-008 | |||||
| Purge tube for corrosion cells | Single | 10 mm | 120 mm | 1 | EL-CORR-1 | EL-C-016 | |
| Double | 220 mm | EL-CORR-1DJ | EL-C-006 | ||||
| Purge tube for analytical cells | Single | 10 mm | 165 mm | 1 | EL-ELECTRO-80 | EL-A-016 | |
| Double | 200 mm | EL-ELECTRO-80DJ EL-ELECTRO-150DJ | EL-A-006 |
Bridge Tubes / Purge Tubes
| Cat. No. | Compatible reference electrode | Compatible bridge tubes | Content |
| 092-VYC3 | A-012167 A-012178 | A-012176 A-012306 A-012177 A-012307 | 10 glass frits (Φ2.8mm Coralpor™) 200mm long heat shrink utbe (Φ3.2mm) |
| 092-VYC4 | - | EL-C-005 EL-C-017 EL-F-004B EL-F-004 EL-A-017 EL-A-008 | 10 glass frits (Φ4mm Coralpor™) 200mm long heat shrink utbe (Φ4.8mm) |
Glassware
(BioLogic)
· BioLogic Cell kit 에 사용할 수 있는 Glassware

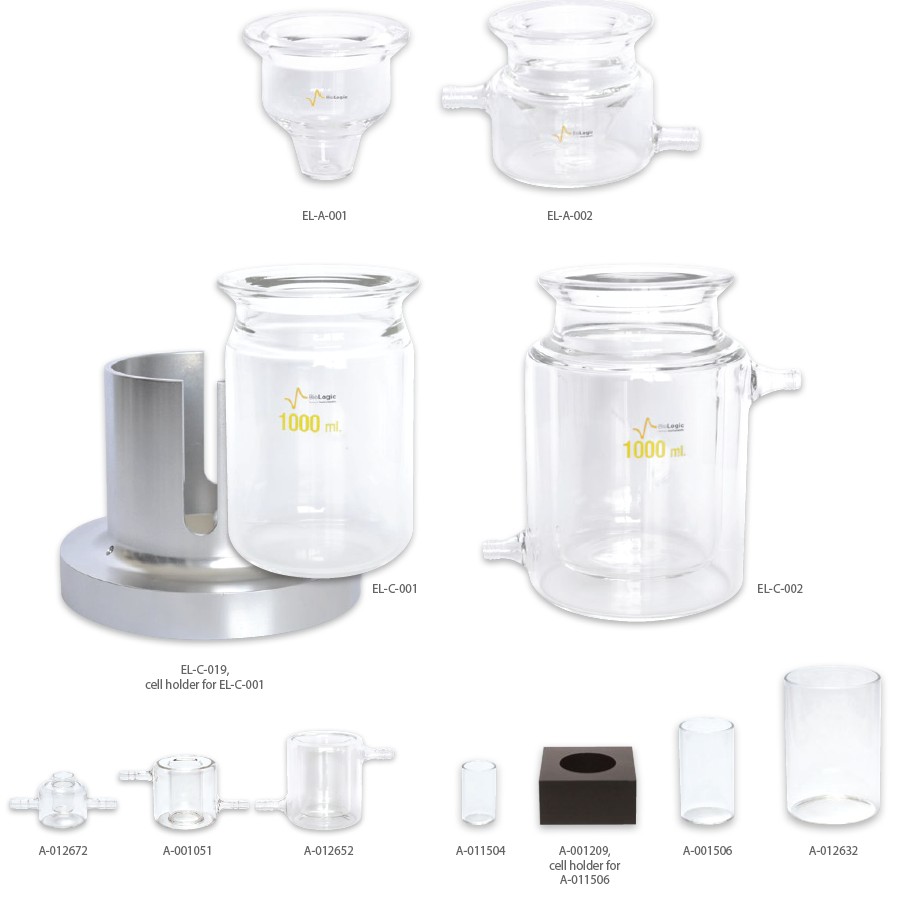

Small & Big Volume Cell Vials
| Description | Volume | OD | ID | Height | Quantity | Purpose | Cat. No. | |
| Small volume cell vials | Sample vial | 5 mL | 18 mm | 15.6 mm | 30 mm | 10 | VC-4 | A-011504 |
| 20 mL | 28 mm | 25.6 mm | 50 mm | 10 | SVC-2, SVC-3 | A-001056 | ||
| 100 mL | 50 mm | 46.4 mm | 72 mm | 1 | Bulk electrolysis | A-012632 | ||
| Water jacketed-glass vial | 5 mL | 40 mm | 15.6 mm | 40 mm | 1 | VC-4 | A-012672 | |
| 20 mL | 55 mm | 25.6 mm | 50 mm | 1 | SVC-2, SVC-3 | A-001051 | ||
| 100 mL | 70 mm | 46.4 mm | 80 mm | 1 | Bulk electrolysis | A-012652 | ||
| Cell holder for 20 mL vial | 1 | SVC-2, SVC-3 | A-001209 | |||||
| Big volume cell vials | Sample vial | 80 mL | 90 mm | 62 mm | 80 mm | 1 | EL-ELECTRO-80 | EL-A-001 |
| 1,000 mL | 120 mm | 90 mm | 175 mm | 1 | EL-CORR-1 | EL-C-001 | ||
| Water jacketed-glass vial | 80 mL | 90 mm | 62 mm | 85 mm | 1 | EL-ELECTRO-80DJ | EL-A-002 | |
| 1,000 mL | 120 mm | 90 mm | 200 mm | 1 | EL-CORR-1DJ | EL-C-002 | ||
| Aluminum base holder for magnetic stirrer and 1L cell vial | EL-CORR-1 EL-CORR-1DJ EL-ELECTRO-80 EL-ELECTRO-80DJ EL-ELECTRO-150DJ | EL-C-018 | ||||||
