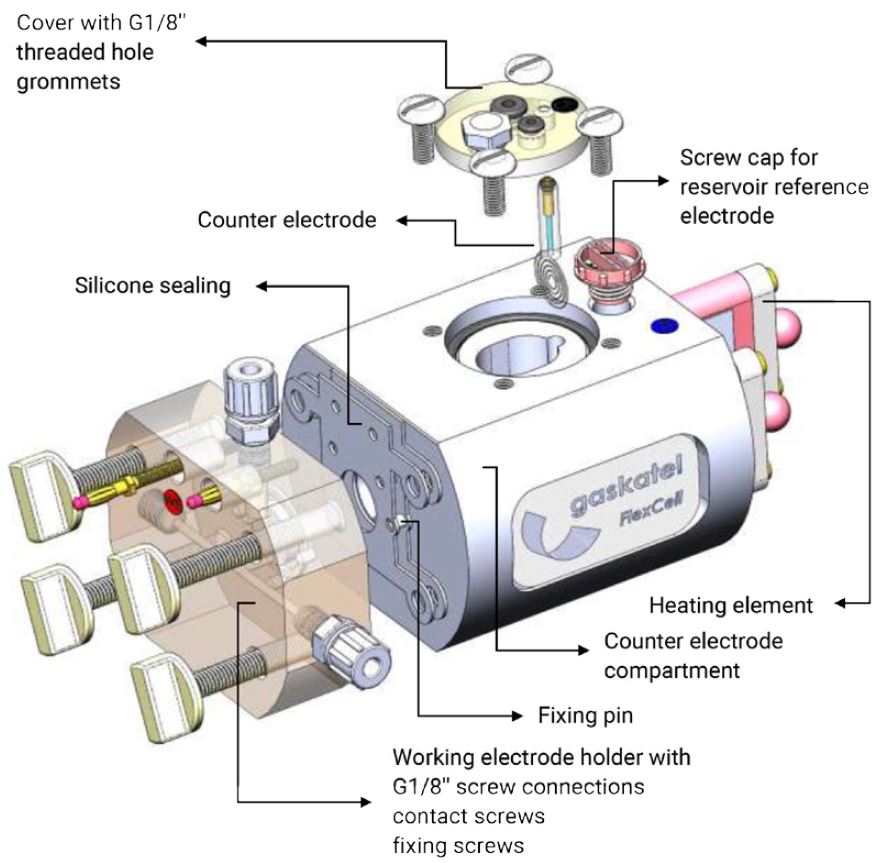

Multi Purpose Cells
(Gaskatel)

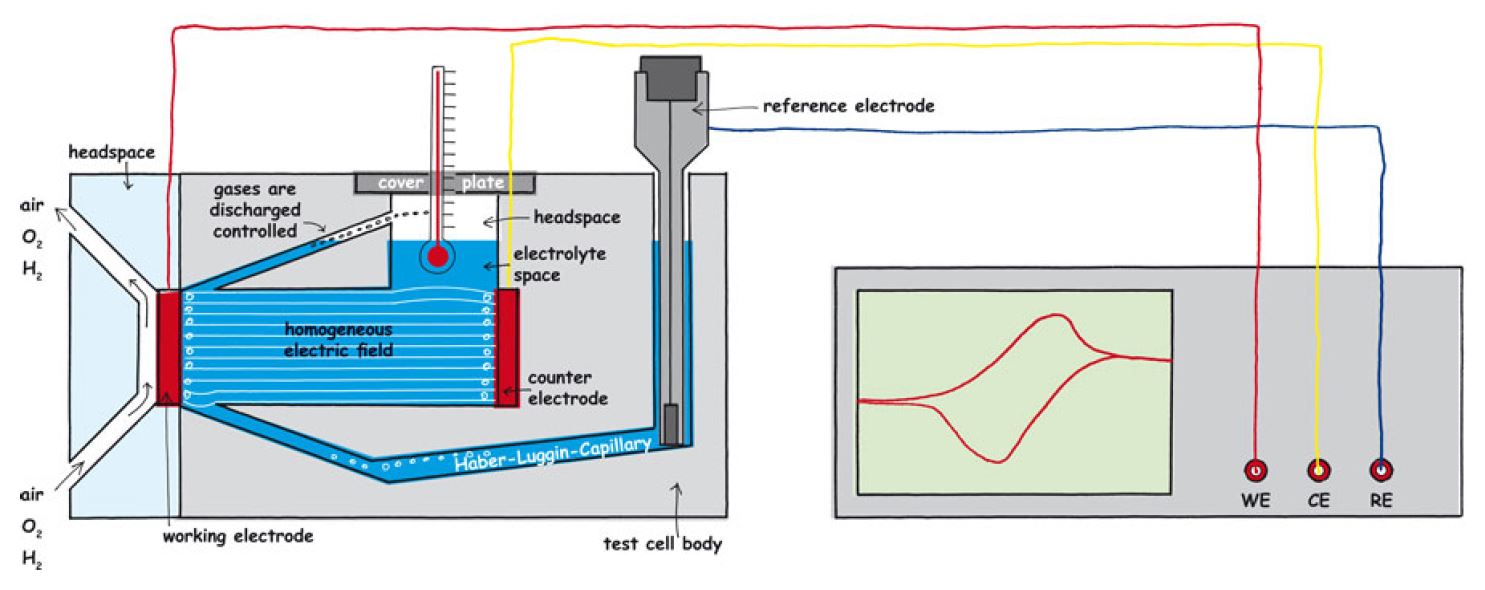

· 부식 및 가스 실험에 적합한 셀
· Gas Diffusion Electrode(GDE) 및 Membrane 연구
· PTFE 및 PP 두 가지의 재질
· WE 및 RE (HydroFlex® / MiniHydroFlex® 추천)
별도 구비
| Specifications | FlexCell® | Analyte Compartment |
| Max. sample size | 3 x 5 cm | |
| Max. sample thickness | 10 mm | |
| Active area | 3cm2 | |
| Electrolyte volume | 30 ml | 12 ml |
| Dimensions (H x W x D) | 75 x 100 x 132 mm | 75 x 100 x 30 mm |
| Materials | FlexCell® PP | FlexCell® PTFE |
| Main | PP (PolyPropylene) | PTFE (PolyTetraFluorEthylene) |
| Gasket | Silicon | |
| O-rings | EPDM (EthylenePropyleneDiene Monomer) | |
| Cover plate | PSU (PolySUlfone) | |
| Gas compartments | PMMA (PolyMethylMethAcrylate) | PSU (PolySUlfone) |
| Counter electrode | Pt-Ir (Platinum-Iridium) | |
Multi Purpose Cells
| Description | Cat. No. |
| FlexCell® PP - Electrochemical test cell made of PP | G-FLEXCELL/PP |
| FlexCell® PTFE - Electrochemical test cell made of PTFE | G-FLEXCELL/PTFE |
| FlexCell® Analyte compartment PP for membrane studies | G-COMP/PP |
| FlexCell® Analyte compartment PTFE for membrane studies | G-COMP/PTFE |
Options
| Description | Cat. No. |
| FlexCell® - Spare part pack | G-FLEXCELL/SPARE |
| FlexCell® - Counter electrode | G-FLEXCELL/CE |
| FlexCell® - Temperature control box | G-FLEXCELL/CTRL |
