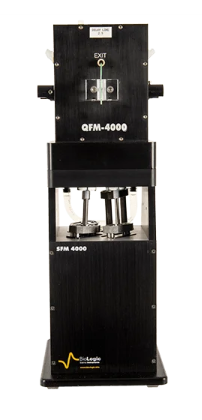

QFM-4000
Micro-Volume Quench-Flow
Maker:
BioLogic (France)
FEATURES
| Configuration | |
| Number of syringes | 4 |
| Number of mixers | 2 |
| Ageing line volume | 3 μl(factory calibrated) |
| Storage lines volume | 15 μl |
| Syringe volume | 1.9 ml for S1, S2 and S4 3.6 ml for S3 |
| Material in contact with samples | PEEK and PTFE |
| Duration of flow | Automatic in mixing phase 1 ms to 60 s in washing phase |
| Synchronization | +/- 5 V TTL pulse |
| Delay line purge | Air or buffer |
| Exit line purge | Air |
| Mixing performances | |
| Minimum ageing time | 4 ms |
| Minimum injection volume | 10 μl |
| Dead volume mode | zero μl in extra-small volume |
| Temperature range | 0-70°C |
| General | |
| Power requirements | 300 W; 110-220 V; 50/60 Hz |
| Communication | USB |
| Software | Bio-Kine |
| PC configuration | Windows XP, 7, 8 or 10 |
| QFM-4000 weight | 16 kg |
| QFM-4000 dimensions | 480 x 180 x 160 mm (H x W x L) |
| MPS-70 dimensions | 150 x 300 x 430 mm (H x W x L) |
