FEATURES
- 최대 350MPa의 가압범위 및 200MΩ 의 저항 측정 범위 지원
- Two-probe 및 Four-probe 방식을 자유롭게 전환하여 저항 측정 가능
- 자동 테스트 소프트웨어 제공으로 사용자 설정 및 원클릭 테스트
- 압력, 온도, 습도, 두께, 저항, 전도성, 압축 밀도 등 실시간 모니터링 및 데이터
자동 저장
- Pressurization, Single-point pressure relief, Steady-state pressure relief
등의 다양한 Powder Test 모드 지원
- 보정된 표준 Thickness block 및 Resistance block 이 포함
APPLICATIONS
- Lithium (sodium) Anode & Cathode electrode powders (LCO/NCM/LFP/Graphite, etc.)
- Conductive agents
- Solid electrolyte powders
- Other micron-sized powder materials, etc.
TECHNICAL SPECIFICATIONS
Device Parameters | |
| Resistance range | 1uΩ ~ 1200MΩ |
| Resistance accuracy | ±0.05% |
| Resistivity range | 10⁻⁶Ω·cm ~ 10⁹Ω·cm |
| Conductivity range | 10⁻⁹S/cm ~ 10⁶S/cm |
| Pressure range | 0 ~ 200MPa |
| Pressure accuracy | ±0.30% F.S |
| Thickness range | 0 ~ 8mm |
| Thickness resolution / accuracy | 0.5μm / ±10μm |
| Max filling capacity | Φ16mm × 8mm |
| Temperature and humidity range | 20 ~ 90% RH, 0 ~ 50℃ |
| Temperature and humidity accuracy | ±5% RH, ±2℃ |
SPECIFICATIONS BY MODELS

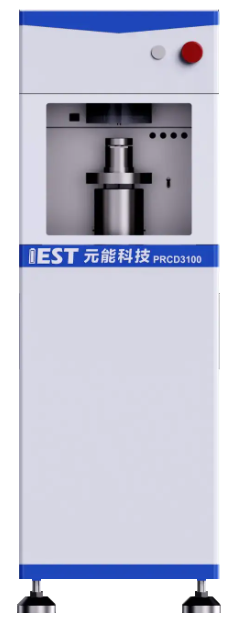

Model | PRCD1000 | PRCD2000 | PRCD3000 | PRCD1100 | PRCD2100 | PRCD3100 |
Test pressure | 1T | 5T | ||||
Test principle | Two probes | Four probes | Two probe & Four probe dual function (software selection function + switch mold) | Two probes | Four probes | Two probe & Four probe dual function (software selection function + switch mold) |
Applicable samples | High resistance samples (such as LFP, LCO, NCM, etc.) | Low resistance samples (such as LFP, graphite, conductive agent, etc.) | Anode & Cathode Samples | High resistance samples (such as LFP, LCO, NCM, etc.) | Low resistance samples (such as graphite, conductive agent, etc.) | Anode & Cathode Samples (Resistance Range 1μΩ ~ 200MΩ) |
Test Condition Range | 1. Die diameter: 13mm 2. Pressure: 70MPa 3. Resistance range: 1μΩ ~ 20MΩ Remarks: National Standard for Graphite Cathode Materials: GB/T 24533-2019, Stress Required 2200lb | 1. Die diameter: 16mm 2. Pressure: 200MPa 3. Resistance range: 1μΩ ~ | 1. Die diameter: 16mm 2. Pressure: 200MPa 3. Resistance range: 1μΩ ~ 200MΩ | |||
