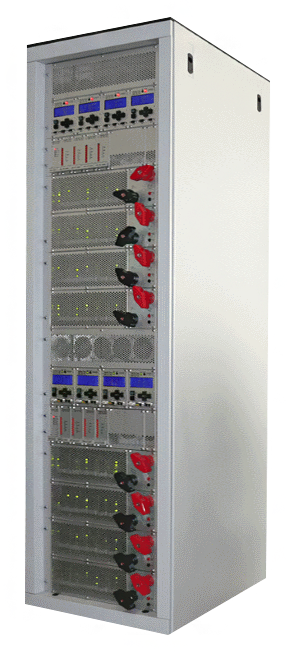

FEATURES
TECHNICAL SPECIFICATIONS
CTS | CTS LAB | CTS LAB XL | XCTS 40A | XCTS 60A | XCTS 80A | LPS | HPS -HR | MRS -HR | RPS -HR | ||||||
Voltage range | 6V | 2-10V | 12-70V | 2-70V | 6V | 80V | 100 1500V | ||||||||
0V option / bipolar output | no | yes | yes | no | optional | no | |||||||||
FS voltage res. / accuracy | 16Bit / 1mV | 16Bit / 1mV | 24Bit* / 0.02% | ||||||||||||
FS current range | 5A | 3A | 5A | 40A | 60A | 80A | 100µA- 8A | 10A- 60A | 100µA 800mA | 1A- 8A | 10A- 60A | 10A- 600A | 100A- 1000A | 70A- 570A | 200A- 1000A |
FS current resolution / accuracy (each current range) | 16Bit 1mA / 50µA 2.5µA / 200nA | 16Bit 10/ 20mA | 16Bit 1/10/ 30mA | 16Bit 10/20/ 40mA | 24Bit* / 0.05% | ||||||||||
current ranges | 4 | 2 | 3 | 3 | 1 | 1-2 | 1 | 1-2 | 1-3 | 1-2 | |||||
automatic dynamic range switching | yes | no | |||||||||||||
automatic range switching | yes | ||||||||||||||
parallel operation / max. channels / max. current | yes / 4 /20A | yes / 4/ 12A | yes / 4 /20A | yes / 2/ 80A | opt / 10/ 600A | opt/10 /800A | yes/4 | no | yes/4 | yes/4 /2400A | yes/4 /2400A | yes/4 /1500A | opt/3 /3000A | ||
Max. output power / channel | 30W | 18W | 30W | 200W | 300W | 400W | 600W | 6kW | 5.4kW | 14kW | 500kW | ||||
Energy recovery / to the grid | no | yes/optional | no/no | yes/yes | |||||||||||
constant voltage operation | digital | analog and digital | digital | ||||||||||||
CP / CR operation | digital | ||||||||||||||
Std. aux inputs / channel | NTC temperature input | 2 pcs Pt100/4W temperature inputs, NTC temperature input | |||||||||||||
Other options | Dig-IO, Ref.-El. input | Relay out, Dig-IO, BSD, SSMS, external charger | |||||||||||||
optional EIS | Planned in 2025 | ||||||||||||||
Software | BaSyTest with Open Software Interface (OSI) and Remote Control Interface (RCI) | ||||||||||||||
Datalogger | optional to be combined with BasyTec CMU datalogger. Up to 480 inputs per logger, up to 10 loggers per installation | ||||||||||||||
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
