FEATURES
3 A / 250 mA / 15 mA / 1 mA (Lab)
TECHNICAL SPECIFICATIONS

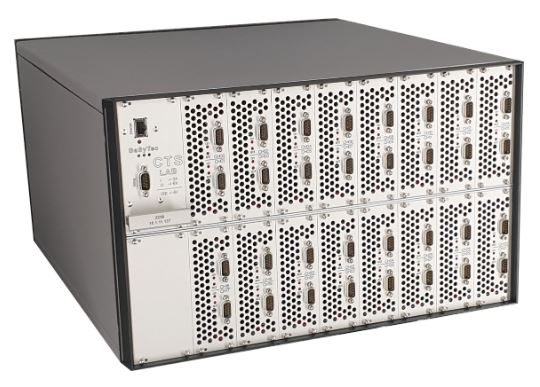

CTS Standard | CTS LAB | CTS LAB XL | |
Channels per unit (max.) | 32 | 20 | |
Voltage range | 0-6V | +/-6V | |
4-wire measurement | yes | ||
Min. discharge voltage | 200mV or 0.2Ω*current (whichever is greater) | -6V | |
Current ranges (charge + discharge) | 5A/300mA/ 15mA/1mA | 3A/250mA/ 15mA/ 1mA | 5A/300mA/ 15mA/1mA |
Current accuracy | 1mA/50µA/ 2.5µA/0.2µA | 1mA/50µA/ 2.5µA/0.2µA | 1mA/50µA/ 2.5µA/0.2µA |
Voltage accuracy | 1mV | ||
Resolution | 16Bit / 1us | ||
Parallel operation | Yes, up to 4 channels | ||
Add. inputs per channel | NTC temperature (for Epcos B57861S0502) optional reference voltage (+/-6V, 1mV accuracy, leackage < 50nA, 200ms samplerate) | ||
Digital-IO | Optional, TTL-like, 3 per channel, not isolated | ||
Sampling rate Output change rate | Peak 0.5ms Min. 10ms (but not more than 1kHz continually per system) | ||
Current rise time | < 50µs | ||
3-Electrode configurations | limited | yes | yes |
Control mode | Current, voltage, power, resistance and combinations | ||
Other methods | Cyclic voltammetry, GITT, … | ||
Software | BaSyTest | ||
Interface | Ethernet | ||
Battery connectors | D-SUB 9-pin Holders for cylindric cells available | ||
Size per unit (max.) | 19” system 6HE units, 450*280*550mm | ||
Weight per unit (max.) | 28kg (32 channels) | ||
Noise | < 55dB(A) | ||
Input power / voltage range | < 1700W / 110-264VAC / 47-63Hz | ||
Max. input current per unit | < 16A @ 110V, < 8A @ 220V | ||
Electrode Testing Solution
Electrode Integrated Testing Instrument
Maker
IEST (China)
Features
• Electrode Resistance Analyzer
• Online Electrode Resistance Analyzer
• Rolling Type Electrode Resistance Analyzer
• Electrode Integrated Testing Instrument
• Electrolyte Wetting Testing System
• Glove Box Type Electrode Resistance Analyzer
Applications
• Active material conductivity evaluation
• Conductivity evaluation of conductor types
• Evaluation of electrode primer technology
• Conductive agent distribution uniformity evaluation
• Uniformity evaluation of silicon-carbon hybrid material
• Analysis of electrode resistance during high temperature cycle & storage
Specifications
| Model | BER2100 | BER2200 |
| Press mode | Cylinder Pipeline gas required,range:5-35MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity | Resistance, Pressure Temperature and humidity conductivity, resistivity |
| Function | One point test Constant pressure condition | Included BER2100 function Automatic measurement software |
| Model | BER2300 | BER2500 |
| Press mode | Servo motor (No pipeline gas required, range:5-60MPa) | |
| Testable parameter | Resistance, Pressure Temperature and humidity conductivity, resistivity | Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density |
| Function | Included BER2100 function Variable pressure | Included BER2300 function Thickness mesurement Compaction density measurement |
