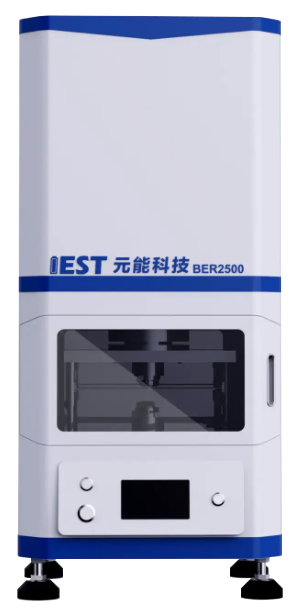

BER2500
Lithium Battery Electrode Sheet Resistance Tester
Maker:
IEST (CHINA)
FEATURES
- 고정밀 전극 저항 측정 시스템으로 전극 전도도의 균일성을 평가
- 자동화 소프트웨어를 통해 매개변수를 자유롭게 설정하고 한 번의 클릭으로
테스트 시작
- 압력, 주변 온도/습도, 두께, 저항, 비저항, 전도도, 압축 밀도 등의 매개변수
곡선을 실시간으로 모니터링하고 출력하며, 테스트 데이터를 자동으로 저장
APPLICATIONS
- Material evaluation
- Process evaluation
- Cell failure analysis
TECHNICAL SPECIFICATIONS
Model | BER2100 | BER2200 | BER2300 | BER2500 |
Press mode | Cylinder (Pipeline gas required, range: 5~35MPa) | Cylinder (Pipeline gas required, range: 5~35MPa) | Servo motor (No pipeline gas required, range: 5~60MPa) | Servo motor (No pipeline gas required, range: 5~60MPa) |
Test parameters | Resistance, Pressure, Temperature and humidity | Resistance, Pressure, Temperature and humidity, conductivity, resistivity | Resistance, Pressure, Temperature and humidity, conductivity, resistivity | Resistance, Pressure, Temperature and humidity, conductivity, resistivity, thickness, compaction density |
Function | - One point test - Constant pressure condition | - Included BER2100 function - Automatic measurement software | - Included BER2200 function - Variable pressure | - Included BER2300 function - Thickness measurement - Compaction density measurement |
