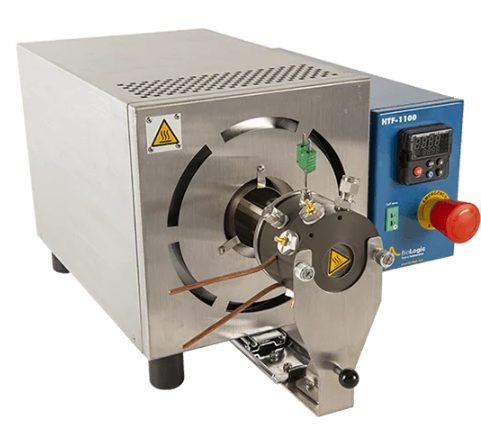

HTF-1100


High Temperature Furnace for the electrical characterization of materials and  heat treatment up to 1100 °C.



Maker:

BioLogic (France)

FEATURES



  • 고온 재료 시험을 위한 시스템으로 150°C~1100°C 범위의 열처리가 가능하여 재료의 전기적 특성 분석


  • HTF-1100은 관형 고온 샘플 홀더(HTSH-1100) 와 함께 사용되며 퍼니스 바닥에 배치된 k형 열전대는 퍼니스 온도를 정확하게       제어하고 측정


  • HTF-1100은 MTZ-35 임피던스 분석기와 함께 사용할 경우 MT-Lab 소프트웨어로 제어


  • HTSH-1100은 불활성 또는 활성 가스(Ar, N2, O2 등)와 최대 2bar의 가변 압력으로 제어된 환경 조건에서 작동 가능


        MT-Lab® Software



                    An intuitive and comprehensive software


                     MT-Lab® is an intuitive and a user-friendly software dedicated to the control of Bio-Logic’s impedance

                     analyzer, the acquisition of the impedance data and the temperature. It also allows the control of many

                     temperature control units:

                       • High temperature furnace (HTF-1100)

                       • Intermediate Temperature System (ITS)
                       • Temperature control systems using Eurotherm 22xx and 35xx series controllers

                       Open-circuit & short circuit compensation.

                       MT-Lab® software is provided with a compensation protocol for the compensation of residual impedance

                       due to cell cables and/or sample holders


SPECIFICATIONS


Insulation material
 Alumina Fiber
Heating System
Super Kanthal 1350°C wire built in a cement cylinder
Temperature Range
150°C up to 1100°C
Temperature Controller
PM6 Watlow PID controller
Temperature Sensors
K-Type Thermocouple
Temperature Control Accuracy
Better than +/-1°C
Temperature scan
adjustable (from 0.1 °C/min to 20 °C/min)
Safety Features
 Emergency stop button; Buzzer sound alarm; Temperature safety limit







Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
