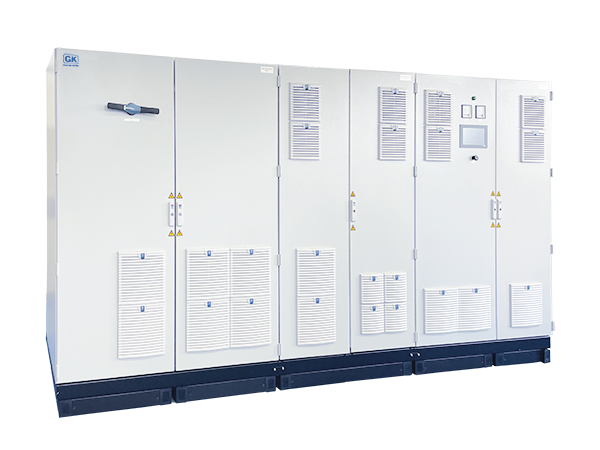

MI-TS-3871

SYSTEM PARAMETERS

	MI-TS-3871 Standard	MI-TS-3871-ol overload
Power rating in kW	60, 100, 120, 160, 250, 320, 400, 500, 650	60, 100, 160, 250, 320, 400, 500
Power overload capability Performance	❌	✅
Max. DC output voltage in V	300, 600, 800, 1000, 1200, 1500	600, 800, 1000
Voltage with center point	❌	❌
Current range in A (per channel)	±200, ±600, ±800, ±1000, ±1200	±200, ±600, ±800, ±1000, ±1200
Number of DC channels	2 or 4	2 or 4
Parallel switching capability (flexible)	2 or 4 Channels, max. 650 kW, max. ±2400 A (2 Channels), max. ±4800 A (4 Channels)	2 or 4 Channels, max. 500 kW, max. ±2400 A (2 Channels), max. ±4800 A (4 Channels)
Parallel switching capability (rigid)	2 or 4 Channels, max. 650 kW, max. ±2400 A (2 Channels), max. ±4800 A (4 Channels)	2 or 4 Channels, max. 500 kW, max. ±2400 A (2 Channels), max. ±4800 A (4 Channels)
Available protection classes	IP20, IP21, IP23, IP54	IP20, IP21, IP23, IP54
Air cooling	✅	✅
Liquid cooling	Optional	Optional
Communication interfaces (standard)	CAN, Modbus TCP, Ethernet, VNC	CAN, Modbus TCP, Ethernet, VNC
Communication interfaces (optional)	Profibus, Profinet, EtherCAT, LabVIEW, Matlab/Simulink	Profibus, Profinet, EtherCAT, LabVIEW, Matlab/Simulink

Model	BER2100	BER2200
Press mode	Cylinder Pipeline gas required,range:5-35MPa)
Testable parameter	Resistance, Pressure Temperature and humidity	Resistance, Pressure Temperature and humidity conductivity, resistivity
Function	One point test Constant pressure condition	Included BER2100 function Automatic measurement software

Model	BER2300	BER2500
Press mode	Servo motor (No pipeline gas required, range:5-60MPa)
Testable parameter	Resistance, Pressure Temperature and humidity conductivity, resistivity	Resistance, Pressure Temperature humidity, conductivity, resistivity, thickness, compaction density
Function	Included BER2100 function Variable pressure	Included BER2300 function Thickness mesurement Compaction density measurement
