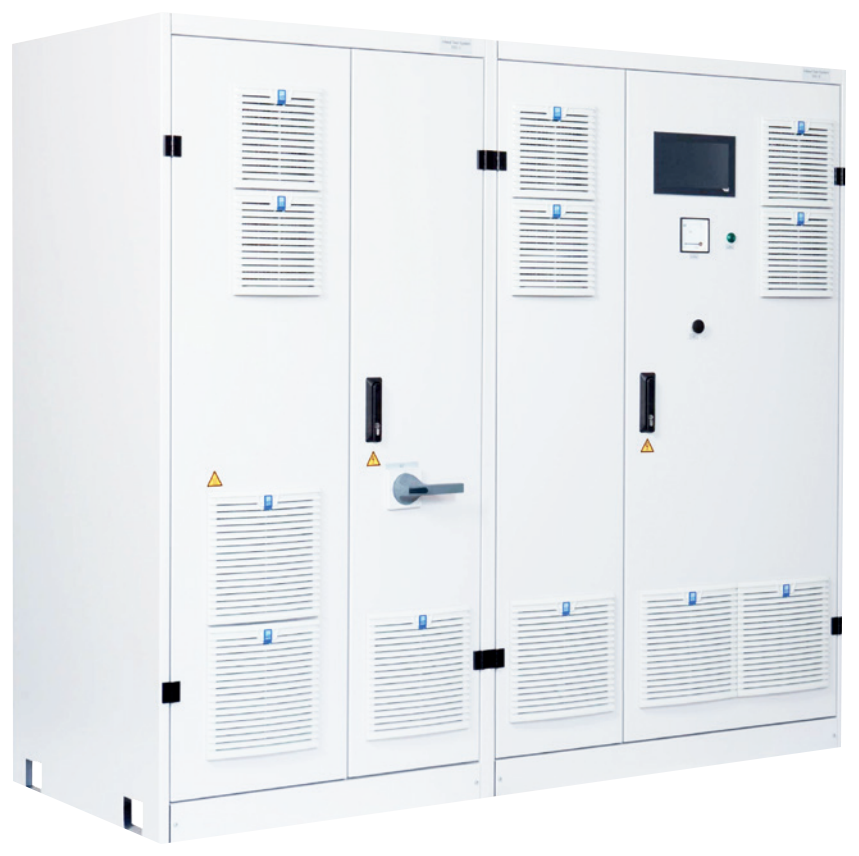

I-TS-3870


Bidirectional power supplies for testing and simulating batteries, fuel cells, drives and further components



Maker:

Gustav Klein(Germany)

FEATURES

  •      단일 채널 시스템으로, 최대 1500V 및 1200A의 출력을 제공


  •      단독 운영 시 최대 650kW의 출력을 내며, 병렬 운영 시

                 최대 2.6MW까지 확장 가능



  • Battery tests (charge and discharge tests of batteries)
  • Battery simulation / battery emulation

  • Load for fuel cells

  • Test power supply for contactors, fuses and circuit breakers

  • Test of DC motors (drive train)

  • Testing of charging columns (comemso)

  • Power supply to trains for maintenance purposes at the ICE (German high speed train) plants

  SYSTEM PARAMETERS




I-TS-3870 Standard
I-TS-3870-ol overload
Power rating in kW
35, 50, 60, 100, 120, 160, 250, 320, 400, 500, 650
60, 100, 160, 250, 320, 400, 500
Power overload capability Performance
❌
✅
Max. DC output voltage in V
80, 120, 300, 600, 800, 1000, 1200, 1500
600, 800, 1000
Voltage with center point
❌
❌
Current range in A (per channel)
±200, ±600, ±800, ±1000, ±1200
±200, ±600, ±800, ±1000, ±1200
Number of DC channels
1
1
Parallel switching capability (flexible)
2 Systems, max. 1300 kW, max. ±2400 A
2 Systems, max. 1000 kW, max. ±2400 A
Parallel switching capability (rigid)
4 Systems, max. 2600 kW, max. ±4800 A
4 Systems, max. 2000 kW, max. ±4800 A
Available protection classes
IP20, IP21, IP23, IP54
IP20, IP21, IP23, IP54
Air cooling
✅
✅
Liquid cooling
Optional
Optional
Communication interfaces (standard)
CAN, Modbus TCP, Ethernet, VNC
CAN, Modbus TCP, Ethernet, VNC
Communication interfaces (optional)
Profibus, Profinet, EtherCAT, LabVIEW, Matlab/Simulink
Profibus, Profinet, EtherCAT, LabVIEW, Matlab/Simulink

Electrode Testing Solution

Electrode Integrated Testing Instrument

Maker

IEST (China)

Features

• Electrode Resistance Analyzer

• Online Electrode Resistance Analyzer

• Rolling Type Electrode Resistance Analyzer

• Electrode Integrated Testing Instrument

• Electrolyte Wetting Testing System

• Glove Box Type Electrode Resistance Analyzer

Applications

• Active material conductivity evaluation

• Conductivity evaluation of conductor types

• Evaluation of electrode primer technology

• Conductive agent distribution uniformity evaluation

• Uniformity evaluation of silicon-carbon hybrid material

• Analysis of electrode resistance during high temperature cycle & storage

Specifications

ModelBER2100
BER2200
Press
mode
Cylinder
Pipeline gas required,range:5-35MPa)
Testable
parameter
Resistance,
Pressure
Temperature
and humidity
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Function

One point test

Constant

pressure

condition

Included BER2100
function
Automatic
measurement
software
ModelBER2300BER2500
Press
mode
Servo motor
(No pipeline gas required,
range:5-60MPa)
Testable
parameter
Resistance,
Pressure

Temperature

and humidity

conductivity,

resistivity

Resistance,

Pressure

Temperature

humidity,

conductivity,

resistivity,

thickness,

compaction

density

Function

Included

BER2100

function

Variable

pressure

Included

BER2300

function

Thickness

mesurement

Compaction

density

measurement
